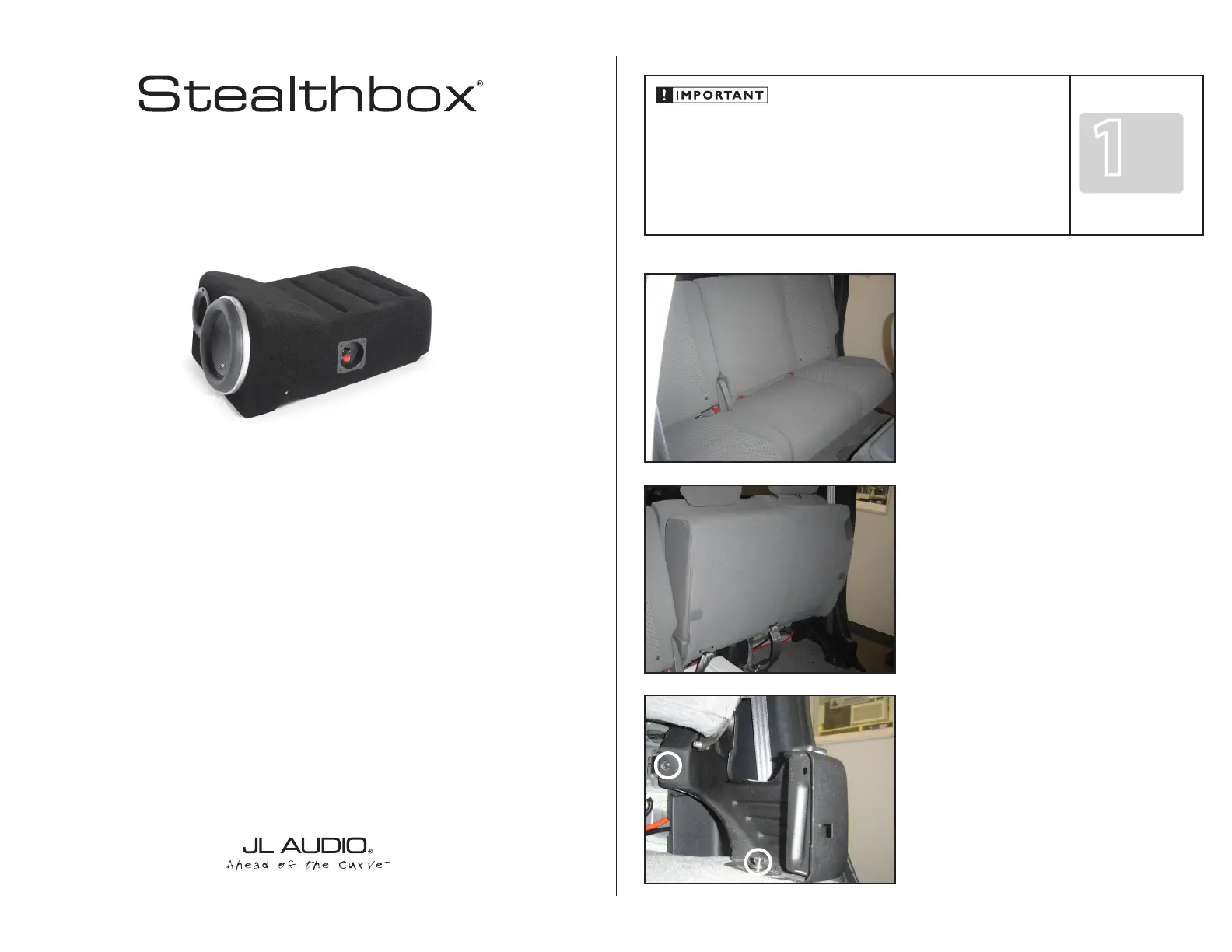

I N S T A L L A T I O N G U I D E
for the
SB-T-TUNDC/8W7
SKU# 94340 & 94346 - 94347
2007 - 2013 Toyota Tundra Double Cab
Thank you for choosing a JL Audio Stealthbox® for your automotive sound system. With proper installation, your new vehicle-
specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your authorized JL Audio dealer. The installation
professionals employed by your dealer have the necessary tools and experience to disassemble and reassemble your vehicle
properly. Also, keep in mind that your warranty coverage extends to 2 years if your system is installed or approved by your
authorized JL Audio dealer. If you prefer to perform your own installation, please read this installation guide completely
before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
S T E P 1
Remove any contents from the rear seats.
Continued on Next Page
S T E P 2
Flip up the driver’s side rear bottom cushion.
S T E P 3
Remove the two bolts that secure the mounting foot to the
rear bulkhead and floor.
SB-T-TUNDC/8W7_INSTR_SKU#011247
INSTALLATION
D I F F I C U L T Y :
15
OUT
OF
ESTIMATED TIME:
1 HOUR
Continued on Next Page
SB-T-TUNDC/8W7_INSTR_SKU#011247
S T E P 7
Run speaker wire from the amplifier’s location to the
Stealthbox® location and check for proper operation of
the woofer.
S T E P 6
Secure the other L-bracket to the right side of the
Stealthbox®.
S T E P 5
Place a supplied lock washer and then flat washer onto each
supplied hex bolt.
Place a supplied L-bracket onto each bolt assembly. The bolt
assembly is to pass through the hole on the longer side of
each L-bracket.
Secure a L-bracket to the left side of the Stealthbox®.
S T E P 4
Remove the bolt that secures the seat belts to the floor.
Page 2 • JL Audio, Inc 2016
S T E P 9
Lift the rear seating up and slide the Stealthbox® under the
seating. The woofer and port faces the rear of the truck.
When placing the rear seat back down. Make sure that the
hooks that are located on the backside of the seat is aligned
with the hooks on the rear wall. If these hooks do not align,
then the rear seating will not function correctly.
S T E P 1 1
Using the factory bolt that was removed in STEP 3, secure
the L-bracket and the rear seat mount to the floor.
S T E P 1 0
Using the factory bolt that was removed in STEP 3, secure
the rear seat mount to the bulkhead.
S T E P 8
Place the Stealthbox® into the mounting area.
SB-T-TUNDC/8W7_INSTR_SKU#011247
C O N G R A T U L A T I O N S
You have completed the installation for this model!
Please refer to the Power Recommendation section for an
amplifier recommendation and basic set-up help.
S T E P 1 3
Lower the rear seat and replace any removed contents.
S T E P 1 2
Using the factory bolt that was removed in STEP 4, secure
the L-bracket and the seat belts’ mount to the floor.
Page 3 • JL Audio, Inc 2016
All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered
trademarks of JL Audio, Inc. “Ahead of the Curve” and its respective logo is a trademark of JL Audio, Inc.
JLA-SKU# 011247 - 09.20.2016 • Printed in USA • ©2016 JL Audio, Inc.
For more detailed information please visit us online at www.jlaudio.com.
(954) 443-1100
w w w . j l a u d i o . c o m
1 0 3 6 9 N O R T H C O M M E R C E P A R K W A Y • M I R A M A R , F L O R I D A • 3 3 0 2 5 • U S A
I N C L U D E D H A R D W A R E
(2) 3/8-inch -16 x 1-inch Hex Bolt
(2) 3/8-inch Split Lock Washer
(2) 3/8-inch Flat Washer
(2) L-Bracket
S P E C I F I C A T I O N S
Enclosure Type: Bass Reflex (ported)
Driver Type: 8W7
Nominal Impedance: 3 ohms
Continuous Power Handling: 500 Watts
P O W E R R E C O M M E N D A T I O N
JL Audio recommends using a high quality amplifier such as the JL Audio XD600/1v2. The diagram below shows
the recommended crossover settings for the XD600/1v2 when being used to power your Stealthbox ®
.
The JL Audio XD600/1v2 is a very versatile audio component. Please consult the owner’s manual for even more
detailed information about installing and tuning this amplifier.
M I D / H I G H F R E Q U E N C Y D R I V E R F I T M E N T
A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of you vehicle.
Front Speaker Size / Location: 6-inch x 9-inch / Front Doors
Fits JL Audio Models**: *TR690-TXi & *C2-690tx
Rear Speaker Size / Location: 6.5-inch / Rear Doors
Fits JL Audio Models: *TR650-CXi, *TR650-CSi, *C2-650x, *C2-650,
*C3-650, *C5-650x, *C5-650, & *ZR650-CSi
*Spacer ring is required for proper mounting.
**Other size speakers may be used, custom mounting ring is required.
