Light Management Touch sensor module AC/DC 24 V
Ref.-no.: 32.. TSM
Operating Instructions
Tastsensor-Modul 1-, 2-, 3-, 4fach
Safety warnings
Attention: Electrical equipment must be installed and fitted by
qualified electricians only.
Failure to observe any of the installation instructions may cause
damage to the device and result in fire or other hazards.
The sensor is a safety class III device. Connect only SELV circuits of
24 V to the device (no mains potential!).

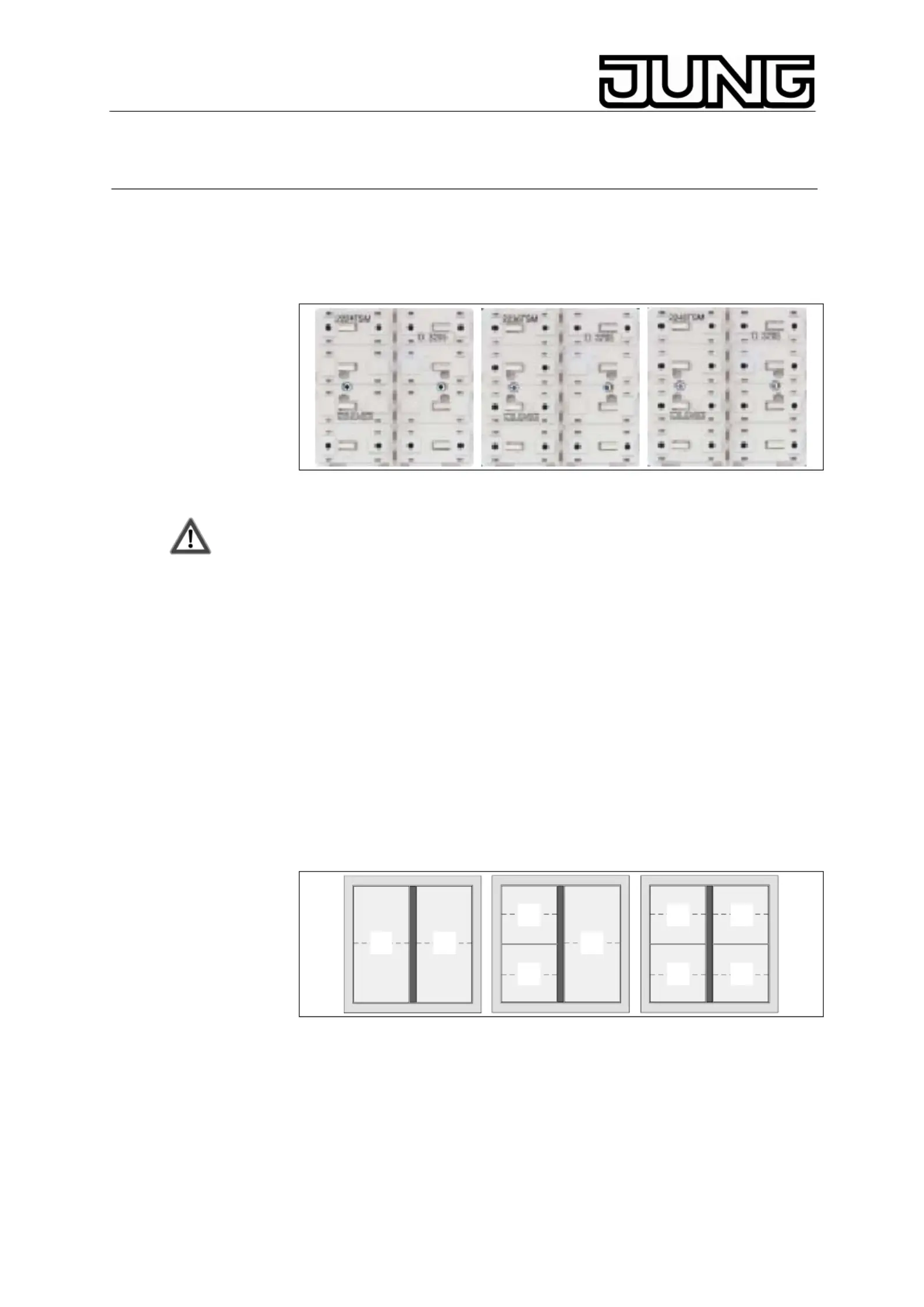

1. Function
Touch sensors intended for connection to the 8- channel relay station,
Art. no. RS 8 REG or other control systems. Each sensor is equipped
with two red LEDs for status indication purposes. Connection to the
device is made at the back by means of a terminal block. The touch
sensor rockers are “divided” into an upper and a lower half and generally
control two consumers (or other functions). To actuate the rockers, the
device must be equipped with the corresponding touch sensor module
covers (must be ordered separately):
1 3
2 4
1
3
2
1 2
1channel 3212 TSM 1 x FD..901 TSA
2channel 3224 TSM 2 x FD..902 TSA..
3channel 3236 TSM 1 x FD..902 TSA.. and
2 x FD..904 TSA..
4channel 3248 TSM 4 x FD..904 TSA..
Stand: Apr-08 825 587 03
Light Management Touch sensor module AC/DC 24 V
Ref.-no.: 32.. TSM
2. Connection

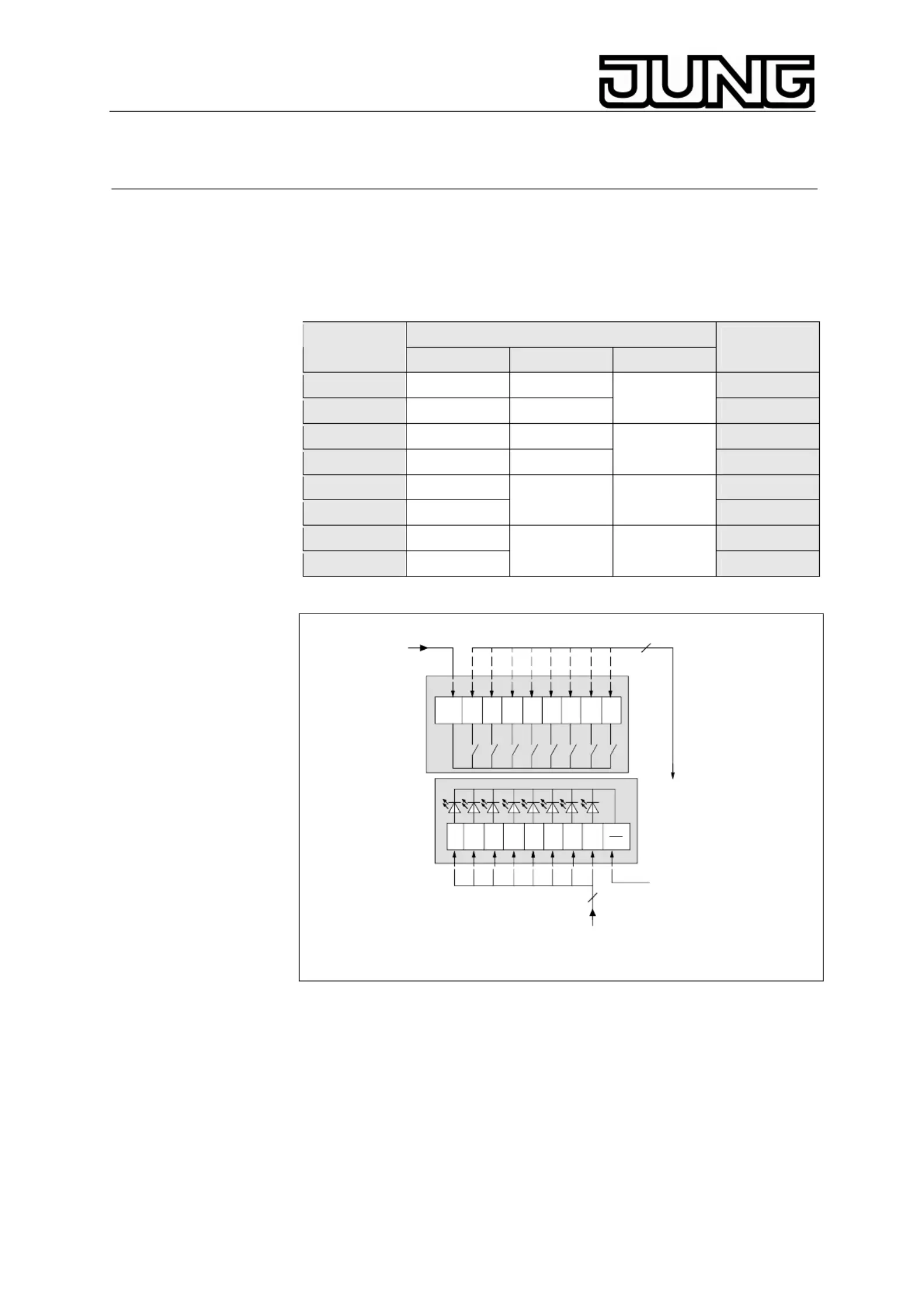

Sensor outputs and LED inputs (FIG. B)
assigned to following rocker: Sensor
terminal
4ch 3fach 2fach
LED-
terminal
1
1 top 1 top
1
2
1 bottorn 1 bottorn
1 top
2
3
2 topn 2 top
3
4
2 bottorn 2 bottorn
1 bottorn
4
5
3 top
5
6
3 bottorn
3 top 2 top
6
7
4 top
7
8
4 bottorn
3 bottorn 2 bottorn
8
RS8 REG:
A
C/DC 24 V
+ 8 7 6 5 4 3 2 1
max. 8
RS8 REG:
„E1..8“
etc.
max. 8
RS8 REG:
GND
RS8 REG:
„A1..8' “
etc.
DC 24 V
1 2 3 4 5 6 7 8
2
Light Management Touch sensor module AC/DC 24 V
Ref.-no.: 32.. TSM

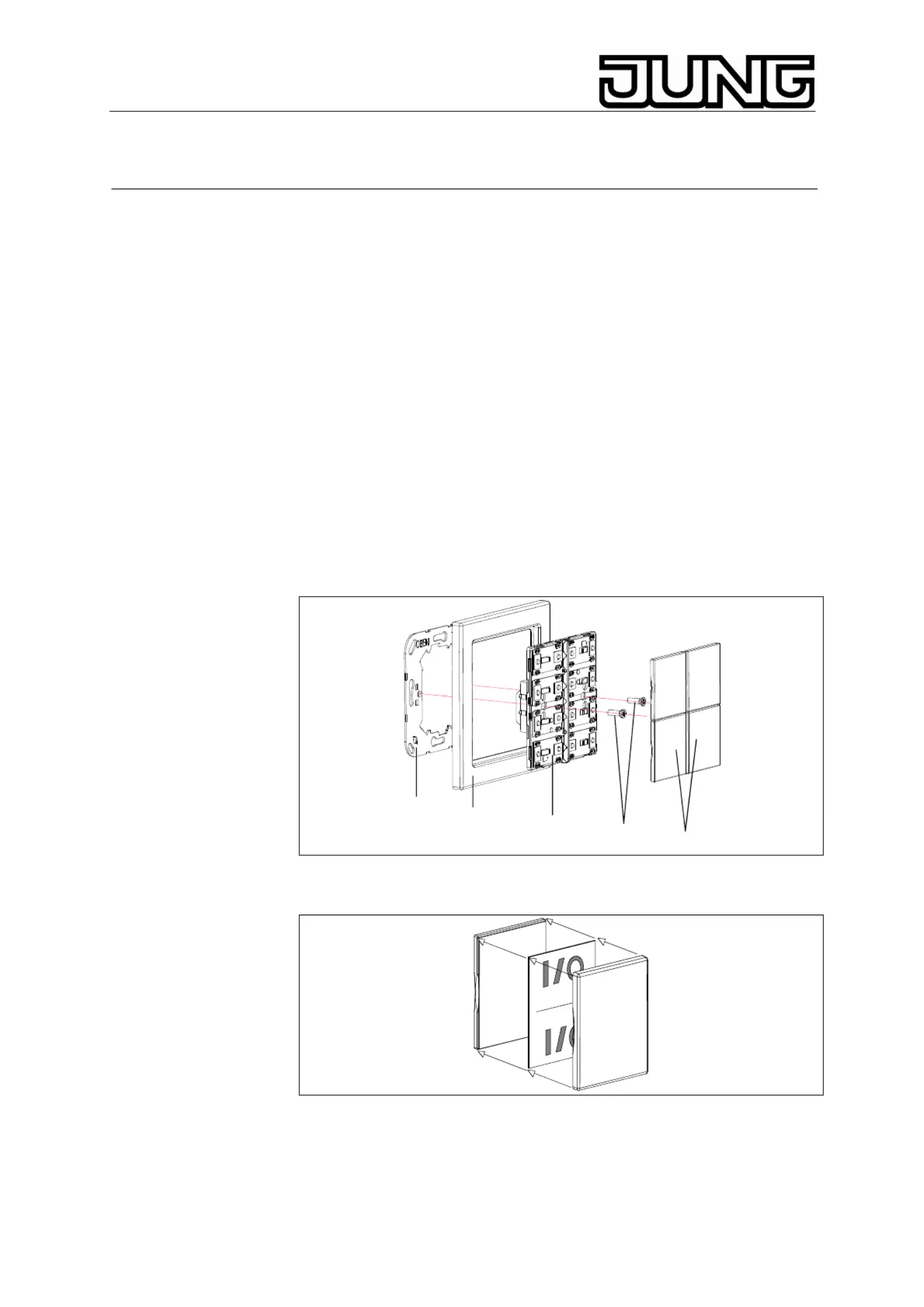

3. Installation
• Touch sensor module for switch programs FDDesign (type A:
height of frame 6 mm) or LSDesign (type B: height of frame 11
mm). Inscription on supporting frame: „Typ A“ or „Typ B“.
• Fit supporting ring (1) in correct position on a flushmounting box
(DIN 49073) (observe the „TOP“ mark, „Typ A“ or „Typ B“ in front).
Use the screws supplied with the mounting box.
• Place the decorative frame (2) on the supporting ring.
• Connect the touch sensor module (3) to the 8- channel relay station
and place it on the supporting ring (see table above).
• Fasten the touch sensor module with the plastic screws supplied (4)
on the supporting ring. The screws are intended as a protection
against removal or theft. Tighten the plastic screws only lightly !.
• Fit the covers (5): Place the covers one by one on the touch sensor
module. The arrangement of the covers is shown in FIG A. Make
sure the cover fits properly (observe the marking TOP on the
inside) and snap it onto the device by a brief press.
(1)
(2)
(3)
(4)
(5)
3.1. Label covers
The covers with Art. no. FD..90x TSA NA.. can be equipped with labels.
Commercial-grade transparencies can be inscribed with the help of the
JUNG labelling software and inserted as labels into the covers. The
JUNG labelling software is available in the Internet under the following
3
