Key switches

21.11.20241 / 30024006900

Key switches

Surface-mounted housings

Ref.-no.: 804.18 W, 806.18 W, 833.18 W, 834.18 W

Operating instructions

1 Safety instructions

Electrical devices may only be installed and connected by electrically skilled persons.

Serious injuries, re or property damage possible. Please read and follow the instructions in full.

These instructions are an integral part of the product, and must remain with the end customer.

2 Device components

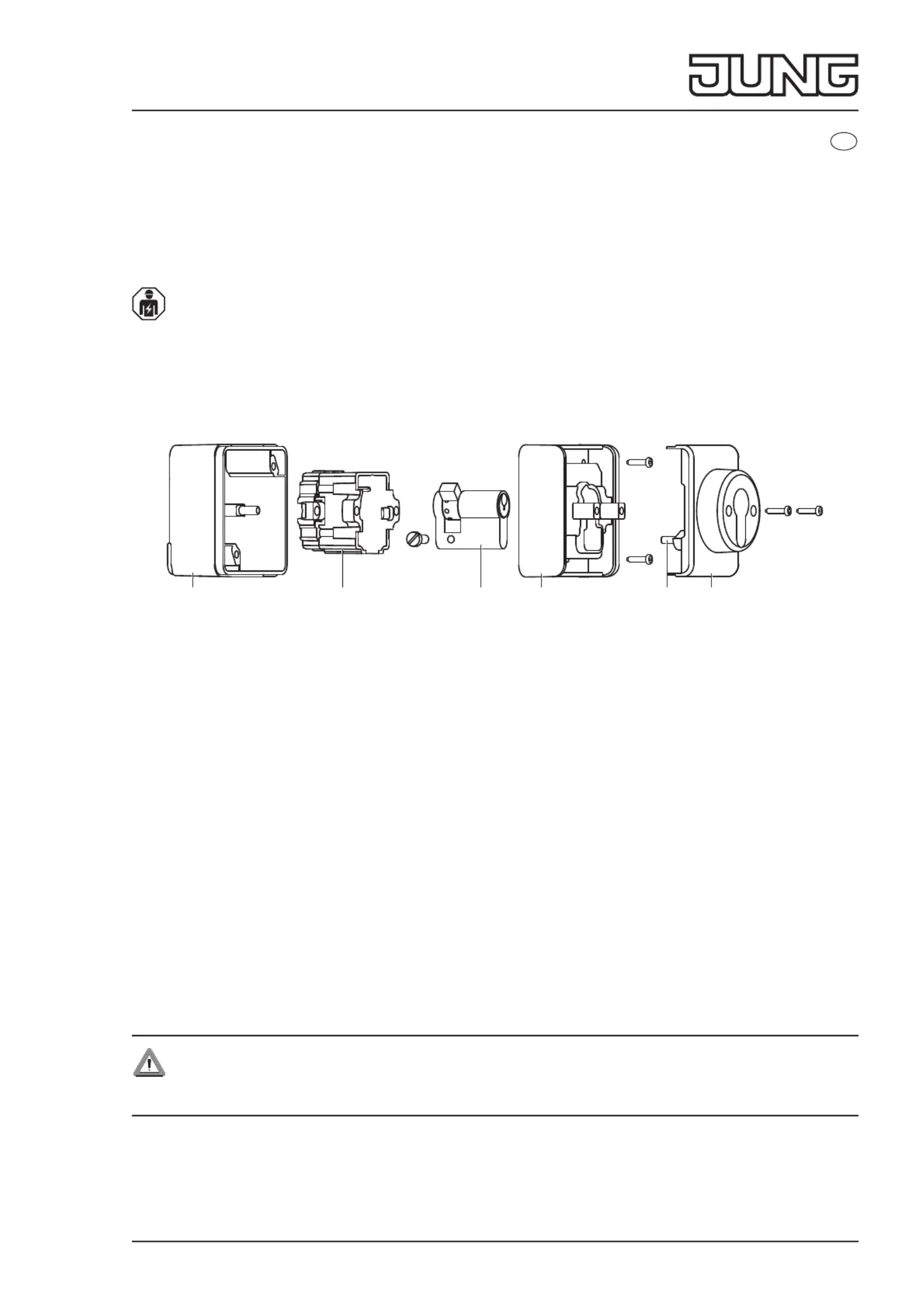

Fig. 1: Device components

(1) Housing

(2) Insert

(3) Prole half cylinder

(4) Centre plate

3 Function

Intended use

-for prole half cylinder with approx. 40 mm overall length (DIN 18252), e.g. art. no.: 28, 28 G1

Designs

Blind reversing switch, 1-pole (1 motor)

804.18 W

Blind reversing push-button, 1-pole (1 motor)

834.18 W

Push-button (2-way), 1-pole

833.18 W,

Universal-o󰀨 2-way switch, 1-pole

806.18 W

4 Information for electrically skilled persons

Mounting and electrical connection

DANGER

Electrical shock on contact with live parts in the installation environment.

Electrical shocks can be fatal.

Before working on the device, disconnect the power and cover live parts in the area!

Connecting surface-mounted housing

• Feed the cable through the opening in the housing.

For this, use the included sealing gaskets.

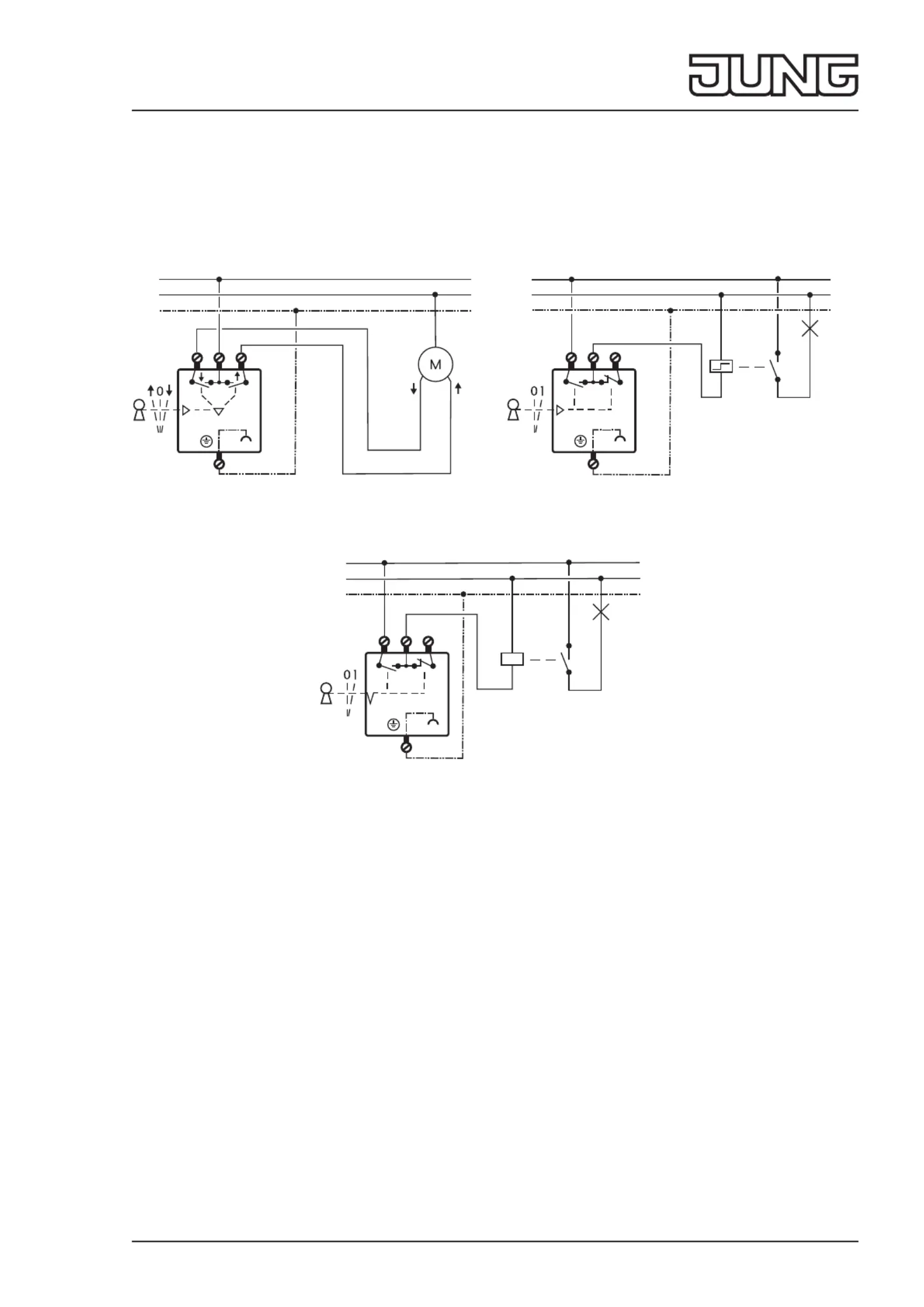

•Connect the key switch acc. to the connection diagram. (g. 5 to g 7)

4

1

3245

GB
