IS-52818-US

For warranty information please visit: kichler.com/warranty

We’re here to help 866-558-5706

Hrs: M-F 9am to 5pm EST

1) Find a suitable location on the wall to mount your xture. Location should be

within 7 feet of electrical outlet.

2) Remove mounting plate [A] from canopy [G] by unscrewing xture mounting

screws [B] (2 on top of canopy, 2 on bottom of canopy). Retain screws for re-

attaching mounting plate to canopy.

3) Place mounting plate [A] at against wall in desired location. Mounting plate

should be positioned with anges on top and bottom. Use mounting plate to mark

two (2) hole locations in keyhole slots:

4) Fixture can be mounted using drywall wing expansion bolts [I] or wood screws [J].

a) If a marked location on the wall coincides with the location of a wall stud or

other solid wood beam, drill a Ø3/32” [Ø2.3mm] hole at that location through

the mounting surface and into the stud or beam.

b) If a marked location on the wall coincides with drywall only, drill a Ø3/8”

[Ø9.5mm] hole at that location through the drywall.

5) Remove mounting plate from wall.

6) If either marked location on the wall has the larger Ø3/8” [Ø9.5mm] hole, take

note of the keyhole slot on the mounting plate that corresponds to that location on

the wall.

a) Remove a drywall wing expansion bolt [I] from parts bag and remove screw

from expansion bolt.

b) Pass screw through the mounting plate from the inside at the corresponding

keyhole slot.

c) Thread the expansion bolt back onto the screw as shown. Bolt should be

threaded onto screw far enough so the end of the screw barely protrudes

through other side of bolt.

d) Repeat using additional drywall wing expansion bolt in parts bag with 2

nd

keyhole slot in mounting plate if 2

nd

location on wall also has larger Ø3/8”

[Ø9.5mm] hole.

7) Place mounting plate [A] against wall in desired installation location.

a) If a drywall wing expansion bolt was installed in a keyhole slot, push the

expansion bolt anges into larger drilled hole(s) in wall as the mounting plate

is placed against wall.

b) If a smaller Ø3/32” [Ø2.3mm] hole was drilled at marked location on wall,

insert a wood screw [J] through corresponding keyhole slot and into drilled

hole in wall once mounting plate is at against wall. Tighten screws in both

keyhole slots against mounting plate. Once tightened, loosen screws slightly

to allow mounting plate to be removed from wall.

8) Tighten screws in both keyhole slots against mounting plate. Once tightened,

loosen screws slightly to allow mounting plate to be removed from wall.

9) Loosen set screw at the bottom of decorative tube [H] and slide tube along the

pre-installed cord [F] and into hole on bottom of canopy [G]. Slip lock washer [K]

and hex nut [L] over threads on end of decorative tube inside canopy and tighten

hex nut until the decorative tube is secured to canopy. Tighten set screw at bottom

of decorative tube.

10) Remove mounting plate [A] from wall and re-attach to canopy [G] using xture

mounting screws [B] previously removed in step #2.

11) Hang xture on wall by aligning heads of screws in wall with larger holes of

keyhole slots and carefully passing mounting plate over screw heads. Slide xture

down slightly so threads of screws between wall and screw heads are seated at

the top of narrow portion of keyhole slot.

12) Insert recommended bulb(s).

13) Insert plug into 120-volt electrical outlet.

14) Turn the light on/o󰀨 by using the switch on the cord.

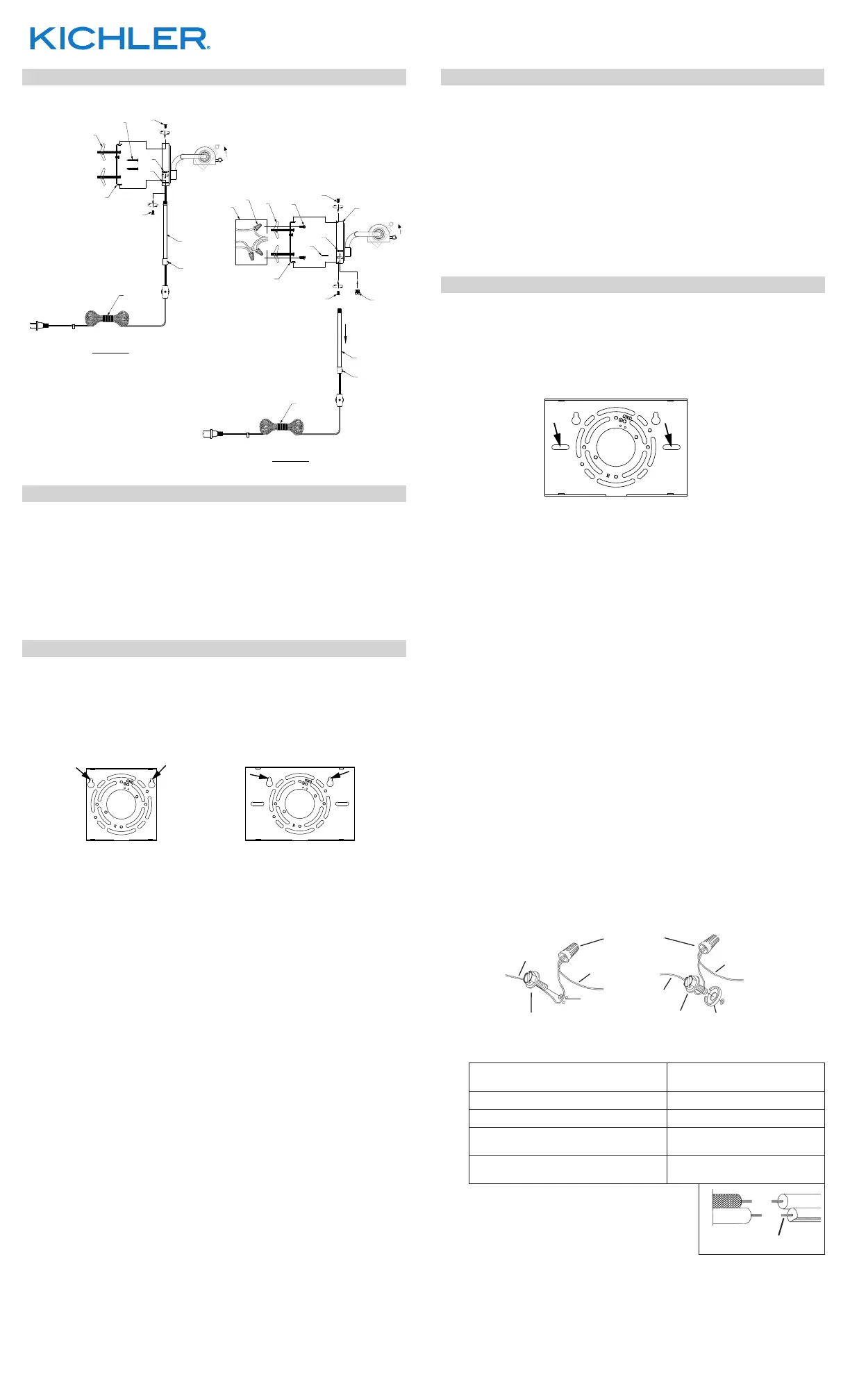

FIXTURE DIAGRAMPARTS LIST

CAUTIONS

CAUTION – RISK OF SHOCK –

Disconnect Power at the main circuit breaker panel or main fusebox before

starting and during the installation.

WARNING:

This xture is intended for installation in accordance with the National Electrical

Code (NEC) and all local code specications. If you are not familiar with code

requirements, installation by a certied electrician is recommended.

CLEANING:

• Always be certain that electric current is turned o󰀨 before cleaning.

• Only a soft damp cloth should be used. Harsh cleaning products may damage the

nish.

[A] Mounting Plate

[B] Fixture Mounting Screw (Qty. 4)

[C] Outlet Box (not supplied)

[D] Plate Mounting Screw (Qty. 2)

[E] Wire Hole Cover

[F] Cord With Switch

[G] Canopy

[H] Decorative Tube (on supplied cord)

[I] Drywall Wing Expansion Bolt With Screw

(Qty. 2 - model numbers 52818/52819, Qty. 4 - model numbers 52820/52821)

[J] Wood Screw

(Qty. 2 - model numbers 52818/52819, Qty. 4 - model numbers 52820/52821)

[K] Lock Washer (on cord inside canopy)

[L] Hex Nut (on cord inside canopy)

[M] Wire Nuts (Qty. 3)

MOUNTING WITH CORD (WITHOUT ELECTRICAL BOX - VIEW “A”)

MOUNTING WITHOUT CORD (DIRECTLY TO ELECTRICAL BOX - VIEW “B”)

A

G

A

VIEW "A"

B

B

I

E

VIEW "B"

J

L

K

H

SET SCREW

H

SET SCREW

B

F

F

K

B

C

M

I

D

L

REV 19-DEC-2025

1) Remove mounting plate [A] from canopy [G] by unscrewing xture mounting

screws [B] (2 on top of canopy, 2 on bottom of canopy). Retain screws for re-

attaching mounting plate to canopy.

2) Attach mounting plate [A] to outlet box [C] using the plate mounting screws [D]

in the holes that align with the holes in outlet box. Mounting plate should be

positioned with anges on top and bottom.

3) For model numbers 52818/52819, proceed to step #10. For model numbers

52820/52821, mark center of outer oval slots on wall:

4) Remove mounting plate from outlet box and retain plate mounting screws.

5) Drill a Ø3/8” [Ø9.5mm] hole at each marked location on wall.

NOTE: If any marked location on the wall coincides with the location of a

wall stud or other solid wood beam, a wood screw should be used instead

of a drywall expansion bolt. In this case, drill a Ø3/32” [Ø2.3mm] hole at that

location instead of the Ø3/8” [Ø9.5mm] hole.

6) Remove drywall wing expansion bolts [I] from bag and remove screws from

expansion bolts. Pass each screw through the outer oval slots of mounting plate

from the inside. Thread each expansion bolt back onto each screw as shown.

Bolts should be threaded onto screws far enough so the ends of the screws barely

protrude through other side of bolts.

NOTE: If a smaller Ø3/32” [Ø2.3mm] hole was drilled in the wall as

instructed in step #5, do not insert expansion bolt through corresponding

slot in mounting plate for that location.

7) Place the mounting plate against the wall, pushing the drywall wing expansion

bolt anges into the larger drilled hole(s) in wall as the mounting plate is placed

against wall. For locations on a wall stud or other solid wood beam, insert wood

screw [J] through corresponding slot in mounting plate and into drilled hole in

wall.

8) Re-attach mounting plate [A] to outlet box [C] using plate mounting screws [D]

previously removed in step #4.

9) Tighten all screws until mounting plate is secure.

10) Loosen the set screw in the bottom of the decorative tube [H] and push the cord

[F] up into the canopy to expose more length of the cord inside the canopy. Cut

the cord above the canopy, leaving at least 6 inches of cord from the back center

of the canopy.

11) Remove the hex nut [L] and lock washer [K] from the cord.

12) Remove decorative tube and cord from xture.

13) Insert the wire hole cover [E] into hole in the bottom of the canopy [G]. Screw hex

nut [L] (previously removed from cord) onto threads of hole cover inside canopy to

secure cover in-place.

14) Split the end of the cord (still connected to xture) 3 inches and strip the wire ends

.5 inches.

15) Grounding instructions: (See Illus. a or b).

a) On xtures where mounting strap is provided with a hole and two raised

dimples, wrap ground wire from outlet box around green ground screw, and

thread into hole.

b) On xtures where a cupped washer is provided, attach ground wire from

outlet box under cupped washer and green ground screw, and thread into

mounting strap.

If xture is provided with ground wire, connect xture ground wire to outlet box

ground wire with wire connector after following the above steps. Never connect

ground wire to black or white power supply wires.

16) Make wire connections. Reference chart below for correct connections and wire

accordingly.

Connect Black or Red Supply Wire to:Connect White Supply Wire to:

BlackWhite

*Parallel cord (round & smooth)*Parallel cord (square & ridged)

Clear, Brown, Gold or Black without

Tracer

Clear, Brown, Gold or Black with

Tracer

Insulated wire (other than green) with

copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wire (SPT 1 & SPT 2) are

used. The neutral wire is square shaped or ridged

and the other wire will be round in shape or

smooth (See illus.)

Neutral Wire

17) Push xture to wall, carefully passing canopy [G] over the mounting plate.

NOTE: Make sure wires do not get pinched between mounting plate and

canopy or between canopy and wall.

18) Secure xture into place using the four xture mounting screws [B] previously

removed in step #1: two on top and two on bottom.

19) Insert recommended bulb(s).

GREEN GROUND

SCREW

CUPPED

WASHER



OUTLETBOX

GROUND

FIXTURE

GROUND

DIMPLES

WIRE CONNECTOR

OUTLETBOX

GROUND

GREEN GROUND

SCREW

FIXTURE

GROUND

b

MODEL #52818 & #52819

MODEL #52820 & #52821
