Date Issued: 09/13/17IS-49927-US

We’re here to help 866-558-5706

Hrs: M-F 9am to 5pm EST

CAUTION – RISK OF SHOCK –

Disconnect Power at the main circuit breaker panel or main

fusebox before starting and during the installation.

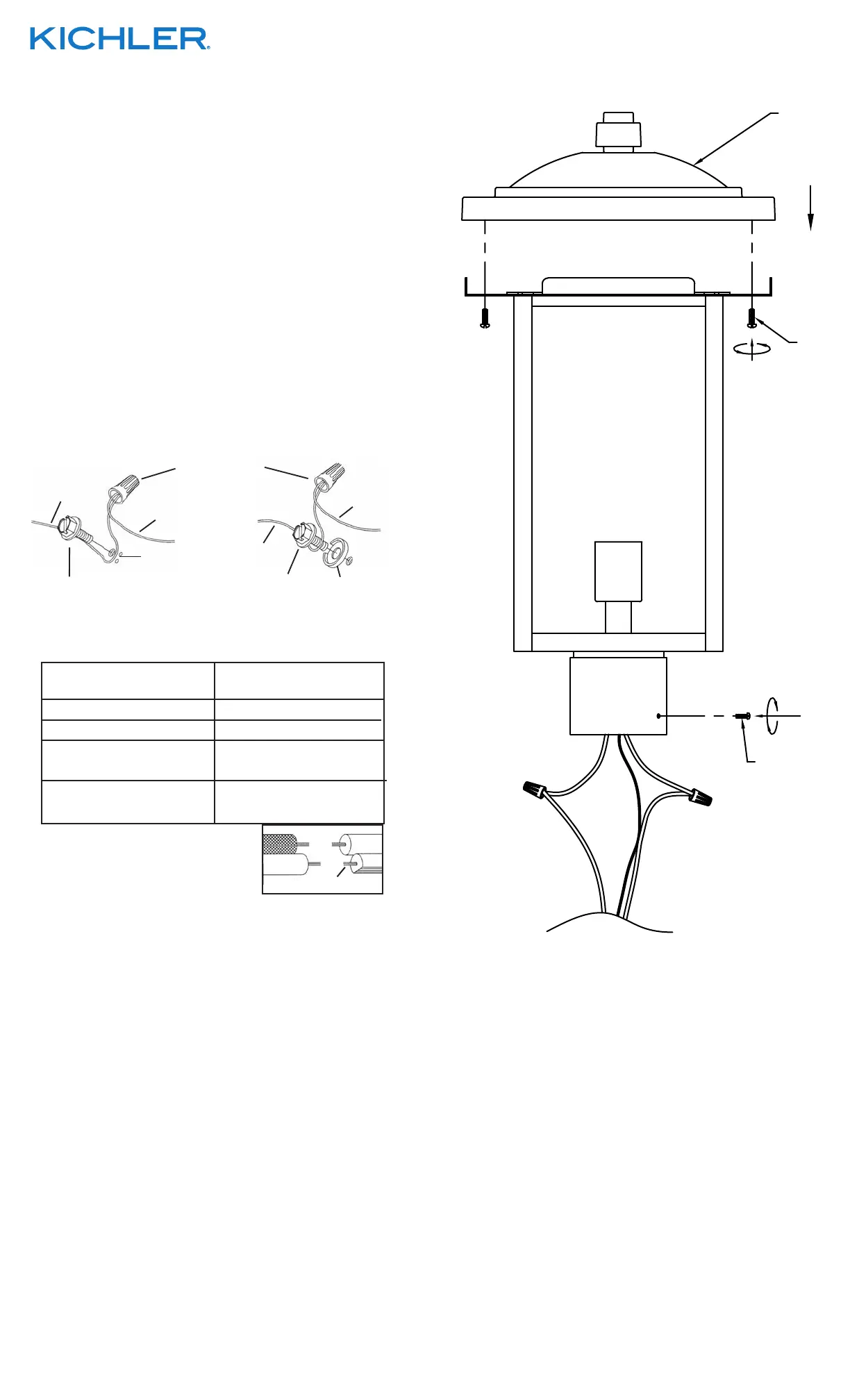

1) Slip xture over post and mark position of mounting holes in

post.

2) Remove xture from post.

3) Drill 3/16” dia holes in post at positions marked .

4) If xture is provided with ground wire, connect xture ground

wire to outlet box ground wire with wire connector. (Not pro-

vided). Never connect ground wire to black or white power

supply wires.

5) Grounding instructions: (See Illus. A or B).

A) On xtures where mounting strap is provided with a

hole and two raised dimples. Wrap ground wire from

outlet box around green ground screw, and thread into

hole.

B) On xtures where a cupped washer is provided. Attach

ground wire from outlet box under cupped washer and

green ground screw, and thread into mounting strap.

If xture is provided with ground wire. Connect xture ground

wire to outlet box ground wire with wire connector. (Not pro-

vided.) After following the above steps. Never connect ground

wire to black or white power supply wires.

6) Make wire connections (connectors not provided.) Reference

chart below for correct connections and wire accordingly.

7) Slip xture over post and secure in place using provided

screws[1]. Screws should slip into holes drilled in post.

8) Insert recommended bulb(s) (Not supplied).

9) Carefully lower the xture roof[2] over the bracket. Align the

holes inside the xture roof with the holes on the bracket.

10) From under the xture roof, thread a screw[3] into each hole of

the bracket and into the threads in the roof.Tighten screws to

secure in place.

GREEN GROUND

SCREW

CUPPED

WASHER

OUTLETBOX

GROUND

FIXTURE

GROUND

DIMPLES

WIRE CONNECTOR

OUTLETBOX

GROUND

GREEN GROUND

SCREW

FIXTURE

GROUND

A

B

Connect Black or

Red Supply Wire to:

Connect

White Supply Wire to:

BlackWhite

*Parallel cord (round & smooth)*Parallel cord (square & ridged)

Clear, Brown, Gold or Black

without tracer

Clear, Brown, Gold or Black

with tracer

Insulated wire (other than green)

with copper conductor

Insulated wire (other than green)

with silver conductor

*Note: When parallel wires (SPT I & SPT II)

are used. The neutral wire is square shaped

or ridged and the other wire will be round in

shape or smooth (see illus.)

Neutral Wire

3

1

2
