CUSTOMER SERVICE

KLEIN TOOLS, INC.

450 Bond Street

Lincolnshire, IL 60069

www.kleintools.com

139540T Rev. 11/13 B

ENGLISH

• TRUE RMS

• AUTO / MANUAL

RANGE

• NON CONTACT

VOLTAGE TESTER

• RELATIVE / ZERO

• BAR GRAPH

• MAX / MIN / HOLD

• 3-3/4 DIGIT

3999 COUNT LCD

• BACKLIGHT

• WORKLIGHT

V

AT

010204030

Apo

600V

400A

CATIII

CL2000

ENGLISH

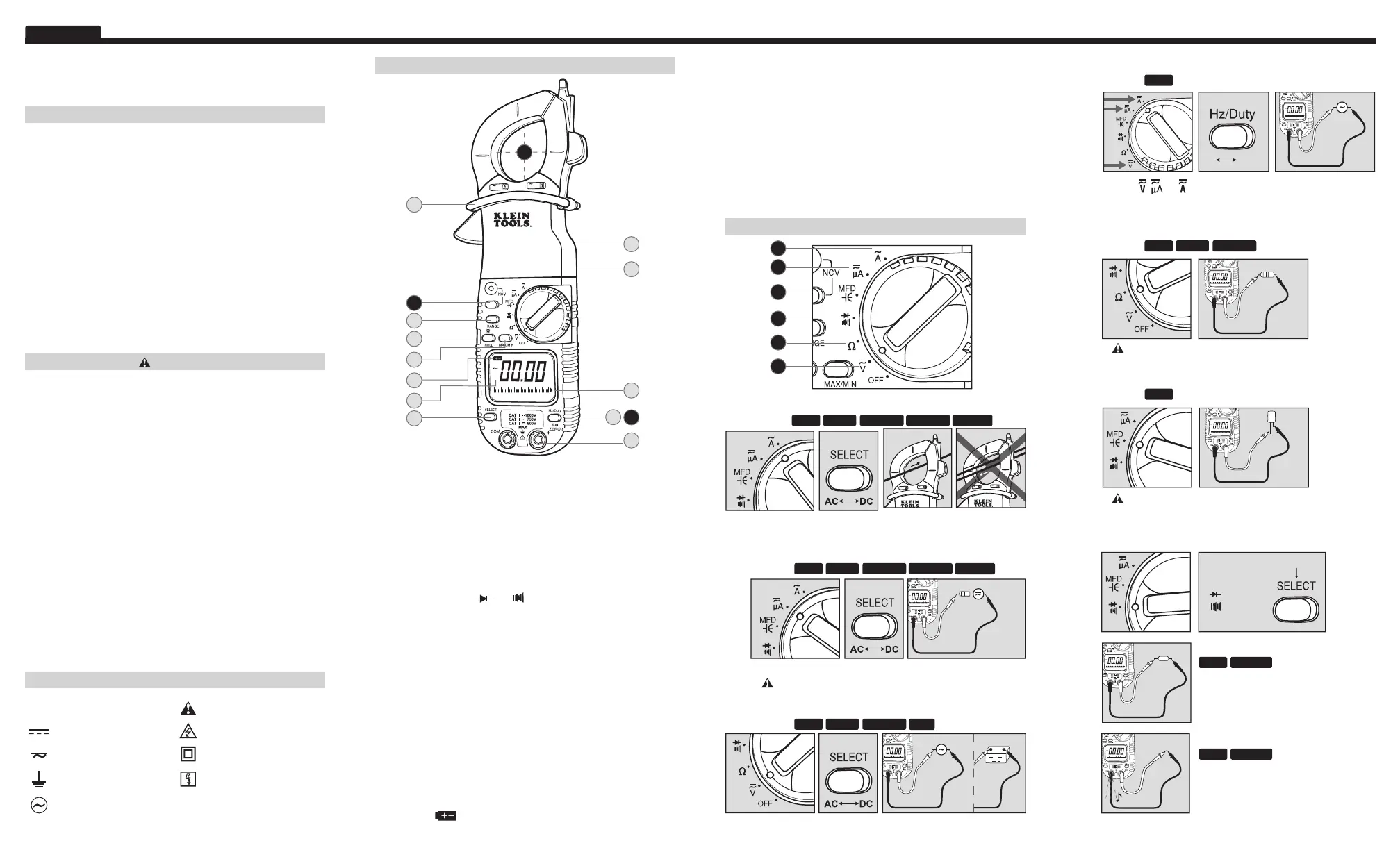

8. Non Contact Voltage (NCV):

>

25V AC

SYMBOLS USED ON LCD

~

AC MeasurementDC Measurement

-

Negative DC Value

AT

Auto Range Active

O

.L.

Overload: Range Exceeded

Apo

Auto Power-Off Active

Low Battery

HOLD

Hold Active

MIN

Minimum Reading

M

AX

Maximum Reading

%

Duty Cycle ModeFrequency Mode

V

Voltage Measurement

A

Current in Amps

Ω

Resistance in OhmsDiode Test

F

Capacitance in FaradsContinuity Test

Relative / Zero Mode

n

Nano 10

-9

µ

Micro 10

-6

m

Milli 10

-3

k

Kilo 10

3

M

Mega 10

6

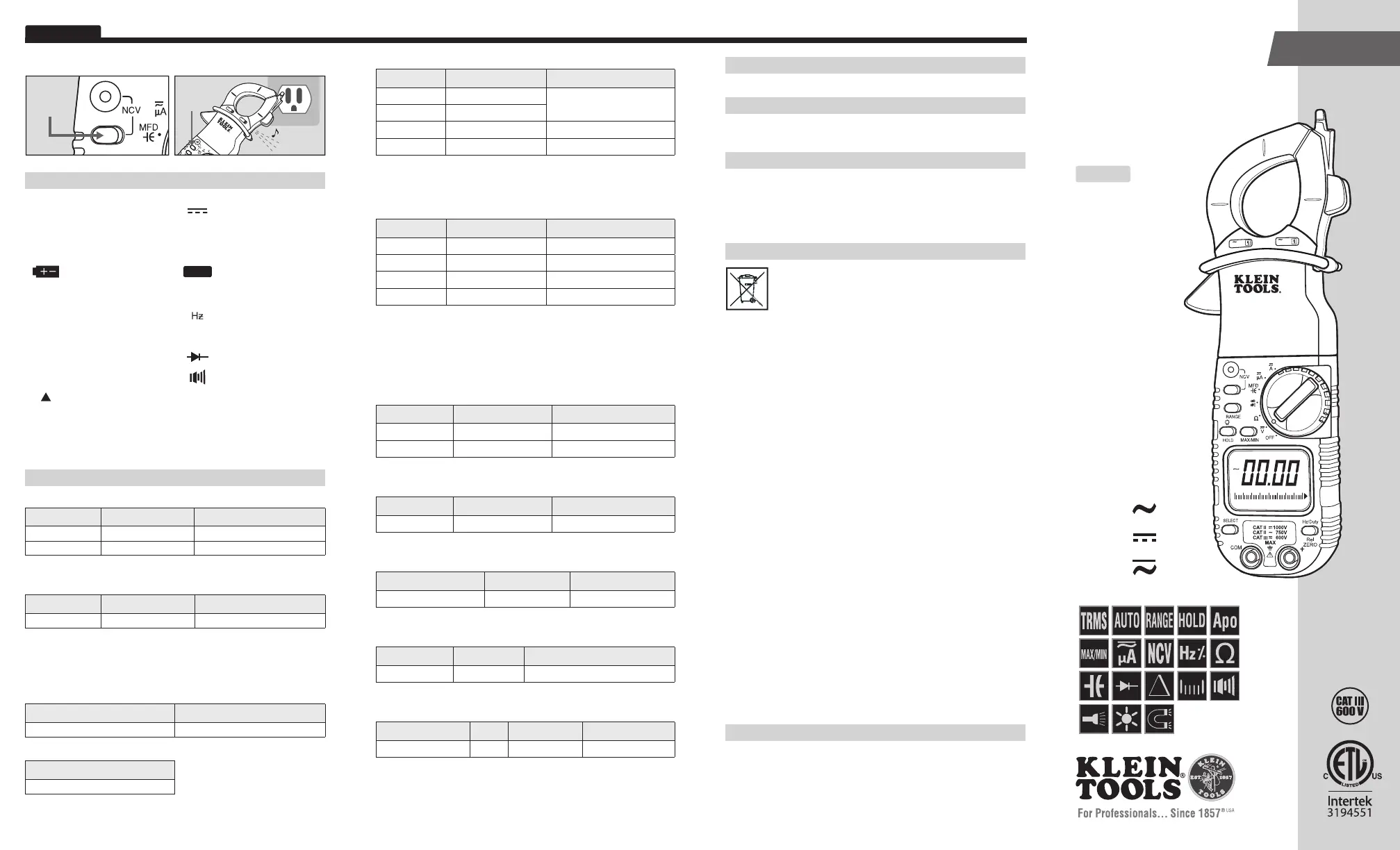

ELECTRICAL SPECIFICATIONS

DC Voltage Measurement

RangeResolutionAccuracy

400mV

˜

400V0.1mV

˜

0.1V± (0.5% + 4 digits)

1000V1V± (0.8% + 10 digits)

Overload Protection: 1000V

AC Voltage Measurement

RangeResolutionAccuracy

400mV

˜

750V0.1mV

˜

1V± (2.0% + 5 digits)

Overload Protection: 750V RMS

Frequency Response: 40 to 400Hz

Minimum Voltage for Frequency Measurement: 200mV

Response: True RMS

Continuity Test

Overload ProtectionOpen Circuit Voltage

600V RMS< 0.44V

Non Contact Voltage Detector

On Voltage

Appx. 25V AC

DC Current Measurement

RangeResolutionAccuracy

400µA0.1µA

± (1.2% + 3 digits)

2000µA1µA

40A0.01A± (2.5% + 15 digits)

400A0.1A± (1.5% + 8 digits)

Overload Protection:

• Voltage: 600V RMS

• Current: 2000µA

AC Current Measurement

RangeResolutionAccuracy

400µA0.1µA± (2.0% + 5 digits)

2000µA1µA± (1.5% + 5 digits)

40A0.01A± (2.9 % + 15 digits)

400A0.1A± (1.9% + 8 digits)

Overload Protection:

• Voltage: 600V RMS

• Current: 2000µA

Frequency: 45 to 400Hz

Minimum Current for Frequency Measurement: 400µA or 20A

Response: True RMS

Resistance Measurement

RangeResolutionAccuracy

400

Ω

˜

4MΩ0.1Ω

˜

0.001MΩ

± (1.0% + 4 digits)

40M

Ω0.01MΩ

± (2.0% + 4 digits)

Overload Protection: 600V RMS

Capacitance Measurement

RangeResolutionAccuracy

40nF

˜

4000µF0.01nF

˜

1µF± (3.5% + 6 digits)

Overload Protection: 600V RMS

Frequency Measurement

RangeResolutionAccuracy

9.999Hz

˜

999.9kHz0.001Hz

˜

0.1kHz± (0.1% + 4 digits)

Overload Protection: 600V RMS

Duty Cycle Measurement

RangeResolutionAccuracy

0.1

˜

99.9%0.1%± (0.2% per kHz + 0.1% + 5 digits)

Overload Protection: 600V RMS

Diode Test

Overload ProtectionRangeTest CurrentOpen Circuit Voltage

600V RMS2.0VAppx. 0.25mA< 1.6V DC



600V

400V

CATIII

CL1000

PRESS

and

HOLD

PRESS

and

HOLD

WARRANTY

www.kleintools.com/warranty

CLEANING

Turn instrument off and disconnect test leads. Clean the instrument by using

a damp cloth. Do not use abrasive cleaners or solvents.

STORAGE

Remove the batteries when instrument is not in use for a prolonged period of

time. Do not expose to high temperatures or humidity. After a period of storage

in extreme conditions exceeding the limits mentioned in the Specifications

section, allow the instrument to return to normal operating conditions before

using it.

DISPOSAL / RECYCLE

Caution: This symbol indicates that equipment and its accessories

shall be subject to a separate collection and correct disposal.

750V

1000V

400A

Dwg Name:CL2000-139540TART Dwg No:139540T

ECO No:14678 Pkg Dwg Ref:1650Rev: B

Color Reference:CEN-PACK-003-A

Instruction Manual

CL2000

CL2000 Instruction Manuals - MASTER.indd 1-411/20/2013 2:54:10 PM
