Seite 1/20

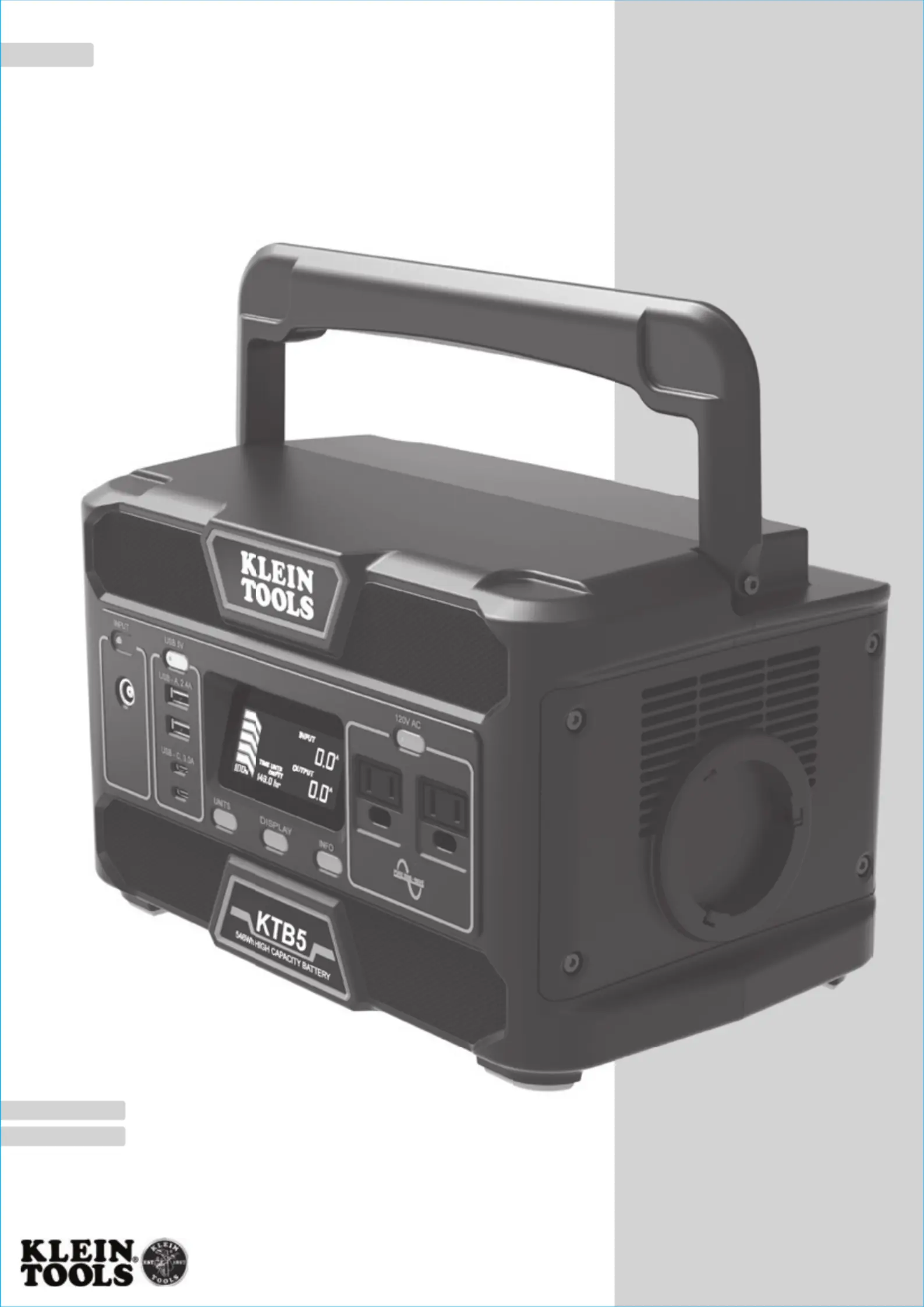

INSTRUCTION MANUAL
ENGLISH
FRANÇAIS p. 13
ESPAÑOL pg. 7
Portable Power Station
• QUIET, LITHIUM-ION POWERED 546Wh, 24.8Ah (22.02V) BATTERY CAPACITY
• FLEXIBLE POWER WITH 4 USB PORTS (INCLUDING 2 USB-C), 2 AC OUTLETS
• REAL-TIME TELEMETRY FROM ON-BOARD LCD DISPLAY
KTB5
2
GENERAL SPECIFICATIONS
The Klein Tools KTB5 is a portable battery pack with the ability to supply 300W of pure sine wave AC power via the two on-board AC outlets. Additionally, the battery pack is able to support
USB quick charging via the on-board USB-C ports, and standard USB-A ports. Overall storage capacity is 546Wh of energy.
• Capacity: 546Wh (24.8Ah / 22.02V)
• Cell Type: 18650
• Cell Chemistry: Li-Ion
• Input: 8mm round port 25.2V DC / 3.5A
• AC Output: 120V each plug, 300W shared / 600W peak
• USB Output : USB-A USB-C(total output 30W) : 2 x 5V 2.4A, : 2 x 5V 3.0A
• Operating / Storage Altitude: 6562 ft. (2000m)
• Operating / Storage Maximum Humidity: <75% non-condensing
• Operating Temp: ° ° ° °14 to 104 F (-10 to 40 C)
• Charging Temp: ° ° ° °32 to 104 F (0 to 40 C)
• Storage Temp: ° ° ° °-4 to 113 F (-20 to 45 C)
• Dimensions: 7.25" x 11.75" x 7.5" (184 x 298 x 191mm)
• Weight: 14.8 lbs (6.71 kg)
• Life Expectancy: 500 cycles to 70% capacity typical (depending on use and care)
• Standards:
UL1642,
IEC/EN60950-1, IEC/EN6065,
IEC62133, IEC60086-4, IEC62281,
UN38.3
• Charging Time: Full charge 8 to 10 hours
• Shelf Life: Charge every 3 months (fully charge before storage)
• Transportation: This unit complies with all legal requirements for transport of dangerous goods. The capacity of the lithium battery pack exceeds 100Wh. Based on
international standards, if this unit is transported by airplane, it must be transported in accordance with IATA standard packaging. IATA instructions and labeling
requirements and the relevant declarations must be completed.
Specifications subject to change.
ENGLISH
WARNINGS
To ensure safe operation and service of the meter, follow these instructions. Failure to observe these warnings can result in severe injury or death.
• Do NOT use portable battery in excess of its output rating. Overload outputs above rating may result in a risk of fire or injury to persons.
• Use of a power supply, charger, or cable not recommended or sold by portable battery manufacturer may result in a risk of fire or injury to persons.
• Do NOT use portable battery or AC wall charger, if it is damaged or has been modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire,
explosion, or risk of injury.
• Do NOT subject to vibration, impacts, or drops. Secure the unit during transport. The housing may not show signs of damage, but internal components may have been
compromised. It is adviseable to replace the unit if any such severe events occur.
• Do NOT expose portable battery to moisture, rain, or snow.
• Keep away from high voltage electrical fields.
• Do NOT attempt to repair portable battery or AC wall charger. There are no user-serviceable components inside.
• Risk of fire and burns, do not open, crush, heat above 140F (60C) or incinerate. Follow all instructions.
• NOT intended for use with plug types or adapters not listed on the product label.
• Do NOT handle unit with wet hands.
• Do NOT place the unit on its side or upside down while in use or in storage.
• If rust, odor, overheating, or other abnormal circumstance are observed, stop using and contact Klein Tools customer service.
COMPLIANCE
FCC & IC COMPLIANCE
This device complies with part 15 of the FCC RULES and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
NOTE: The grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user’s
authority to operate the equipment.
IC NOTICE TO CANADIAN USERS
This device complies with industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received, including interference that may cause undesired operation of the device.
This device complies with RSS-247 of Industry Canada. Operation is subject to the condition that this device does not cause harmful interference. This Class B digital apparatus
complies with Canadian ICES-003.
3
15
FEATURE DETAILS
NOTE: No user-serviceable
parts inside.
3
10
11
12
13
16
1
4
5
8
6
7
BATTERY FEATURES
1. 9.Handle AC Outlets (120V / 300W)
2. 10.LCD Screen UNITS Button
3. 11.AC Charger Input DISPLAY Button
4. 12.AC Charging Indicator LED INFO Button
5. 13.USB Output ON/OFF Button Klein Tools Accessory Mount
6. 14.USB-A Ports (5V / 2.4A output) AC Wall Charger
7. 15.USB-C Ports (5V / 3A output) Air Intake Vent w/ Fan
8. 16.AC Outlet ON/OFF Button Air Exhaust Vent
SYMBOLS ON BATTERY
Warning or Caution
Risk of Electrical Shock
Read Instructions
Conforms with BCS regulations of
California Energy Commission
WEEE – Battery disposal Recyclable
LCD FEATURES
A. Battery Level Indicator
B. Time Until Full / Empty
C. Input Stats
D. Output Stats
E. Hot / Cold Indicator
F. Battery Malfunction Indicator
G. Low Input Voltage Indicator
H. Overload Condition Indicator
SYMBOLS ON LCD
LOW
Low Source Voltage. This will result in very
limited charge, or none at all. Recommended
to only use supplied wall charger.
See OVERLOAD CONDITION in OPERATING
INSTRUCTIONS section of this manual
HOT
The battery temperature is higher than
rated operating temperature, the unit may
not function, or provide limited output
capability during this time. See GENERAL
SPECIFICATIONS for operating temperature
COLD
The battery temperature is less than
rated operating temperature, the unit may
not function, or provide limited output
capability during this time. See GENERAL
SPECIFICATIONS for operating temperature
The battery management system has
detected an unrecoverable failure.
DO NOT ATTEMPT TO SERVICE
Contact Klein Tools Customer Service Directly.
Visit: www.kleintools.com/warranty
Call: 1-800-553-4676
OL
HOT
COLD
LOW
1370572 Rev 9/18 A
Do not expose portable battery to
moisture, rain or snow.
Ne pas exposer le chargeur portatif
àl'humidité, à la pluie ou à la neige.
A B DG
E F C
H
9
14
2
SYMBOLS ON WALL CHARGER
Warning or caution
Risk of Electrical Shock
Read Instructions
Indoor use only
Double insulated
Efficiency Rating
Conformité Européenne:
Conforms with European
Economic Area directives
This product meets
applicable UL standards
This product meets
applicable NOM standards
WEEE – Battery disposal
MODEL: -25203500YHY
P/N: 29201
INPUT:AC100-240V~
50-60Hz,2.5A
OUTPUT:25.2V 3.5A
AC ADAPTER
Warning: For use with KLEIN TOOLS and BLACKFIRE products only.t
Avertissement: à utiliser uniquement avec les produits
KLEIN TOOLS et BLACKFIRE.
Advertencia: Para uso con productos KLEIN TOOLS
y BLACKFIRE solamente.
(2) This device must accept any interference received,
including interference that may cause undesired operations.
This device complies with part 15 of the FCC rules. Operation
is subject to the following conditions:
(1) This device may not cause harmful interference, and
MANUFACTURED BY:
SHENZHEN YINGHUIYUAN ELECTRONICS CO.,LTD
E480146
LISTED
I.T.E POWER SUPPLY
