INSTALLATION SHEET

LP28543

LED Linear Pendant

19054 28th Avenue Surrey, BC Canada V3Z 6M3

T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196

W: kuzcolighting.com

20230109

1a.

1b.

1c.

1e.

4a.

2a.

3a.

3b.

3d.3e.3c.

2b.

5a.

5b.

5c.

1.

2.

3.

4.

5.

6.

7.

8.

9.

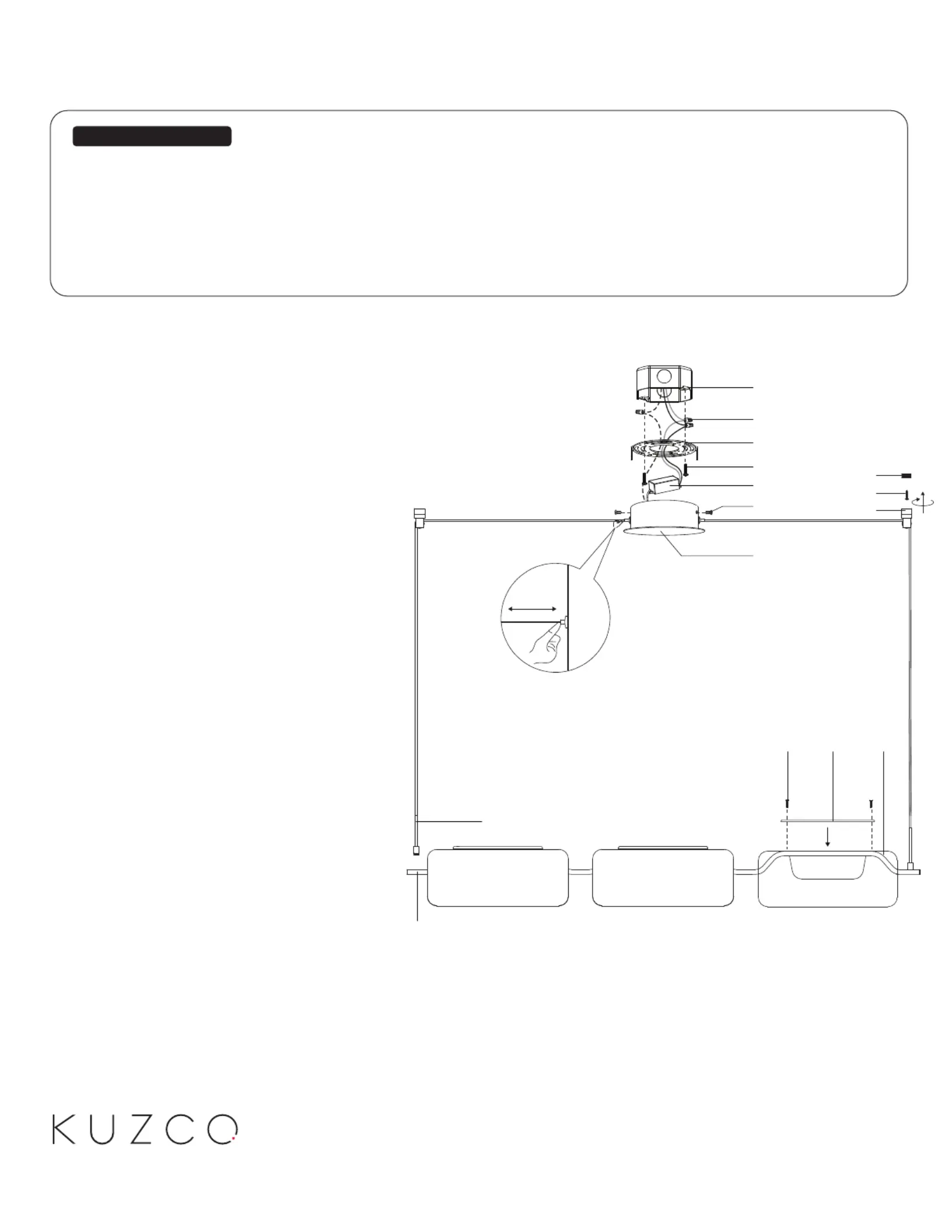

Remove fixture from its original package

Separate mounting plate from canopy by (1c)(2a)

removing canopy screws (2b)

Attach mounting plate to electrical junction box (1c)

(1a)(1e) using junction box screws provided in

hardware package

Attach glass to fixture with decorative bar (3c)(3b)

(3e)(3d) and secure with screws

Thread connector into fixture to secure(3a) (3b)

Make proper electrical connections ( to blackhot

“L”, whiteground“GND”) to “N”, neutral to with

wire nuts provided in hardware package and (1b)

place driver inside canopy (4a)(2a)

Attach canopy to mounting plate with (2a)(1c)

canopy screws (2b)

Mark and install ceiling gripper barrel with (5a)

screw (5b). Secure aircraft barrel (5c) to ceiling

gripper barrel by threading clockwise. (5a)Ideal

distance between aircraft barrels is 41-5/16”(5c)

Fine tone wire length if necessary, by push and hold

wire gripper and then adjust wire to desired (2g)

length

START FROM HERE

• Make sure is POWERCOMPLETELY OFF at the fuse box

• Have your fixture installed by a qualified licensed electrician

• Prepare everything in a clear area

• Wear gloves at all time during this installation

• Read instructions carefully before you start assembly

• Keep this installation sheet for future reference

Technical Support: 1-855-855-8926

Please Note:

• This Kuzco LED fixture comes with pre-wired LED module(s)

• Unless instructed, Do Not touch any part of the LED module(s) as any unnecessary

contact with the module could cause permanent damage

• Use ELV (Electronic Low Voltage) or TRIAC type of dimmer for dimming application

• 120V input
