Remove the fixture from its original packaging and remove the

fixture mounting plate from within the hardware package.

Attach the fixture mounting plate to the electrical junction box

(1a) on the wall using the two screws provided in the hardware

package.

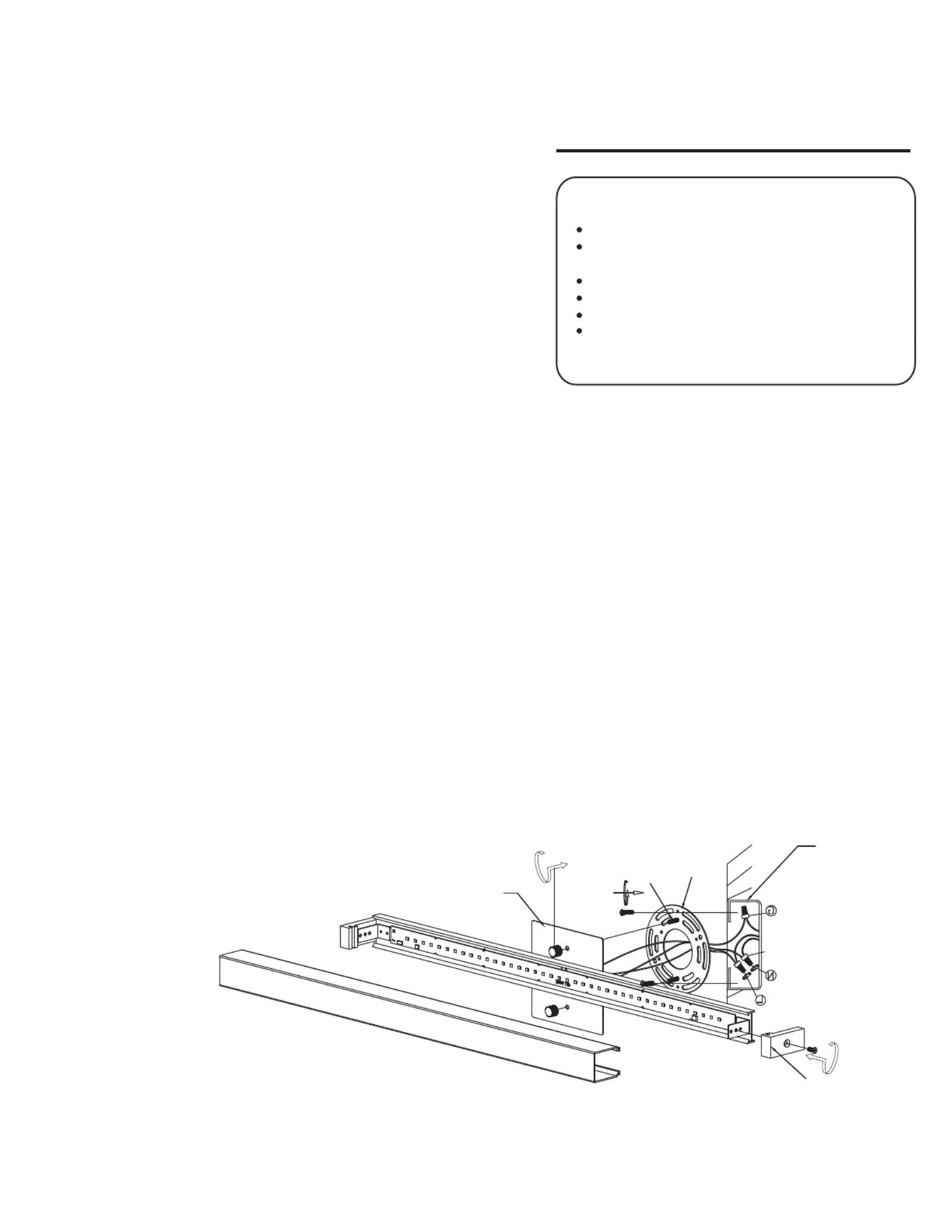

Attach the xture (2a) to the mounting plate (2b), which is attached

to the electrical junction box on the wall. First attach all wiring

with the provided marrets (2c) (white to white “N”, black to black

“L”, ground to ground “G”). Secure the mounting plate (2b) to the

junction box using the two threaded bolts. Connect the xture (2a)

to the mounting plate. Be sure to align the two support bolts to the

exture plate holes (2a). Once this is complete you can screw on

the decorative nuts (2e) until the xture (2a) is secured to the wall.

You have now completed the installation of your xture,

enjoy.

1.

2.

3.

Single lamp vanity with white squared acrylic

VL4721-CH

INSTALLATION SHEET

START FROM HERE

Make sure power is completely o at the fuse box.

Have your xture installed by a qualied licensed

electrician

Prepare everything in clear area.

Wear gloves at all times during this installation.

Read instructions carefully before you start assembly.

Keep this instruction sheet for future reference.

Technical Support: 1-877-452-6858

Install the acrylic cover (3a) onto the xture. The acrylic cover is

installed by gently pushing it foward between the two end

plates. When the acrylic meets the xture increase pressure util

the acrylic catches the xtures top and bottom leading edges

by the bracket. Lastly, connect the decorative end plates (3b)

to the xture using the machine screws provided.

Please Note:

• All Kuzco LED fixtures come with pre-wired LED

module(s).

• Unless instructed to do so, please do not touch any part

of the LED module(s) as any unnecessary contact with the

module could cause permanent damage.

• For dimming, an ELV (Electronic Low Voltage) dimmer is

required.

4.

2c

1a

2d

2b

2a

3a

3b

2e
