INSTALLATION SHEET

EB3024

Exterior Bollard LED

START FROM HERE

19054 28th Avenue Surrey, BC Canada V3S 6M3

T: 604 538 7162 TF: 1-855 85 KUZCO F: 604 538 7196

W

20190627

: kuzcolighting.com

3a.

2c.

1c.

1b.

2e.

1a.

2b.

2a.

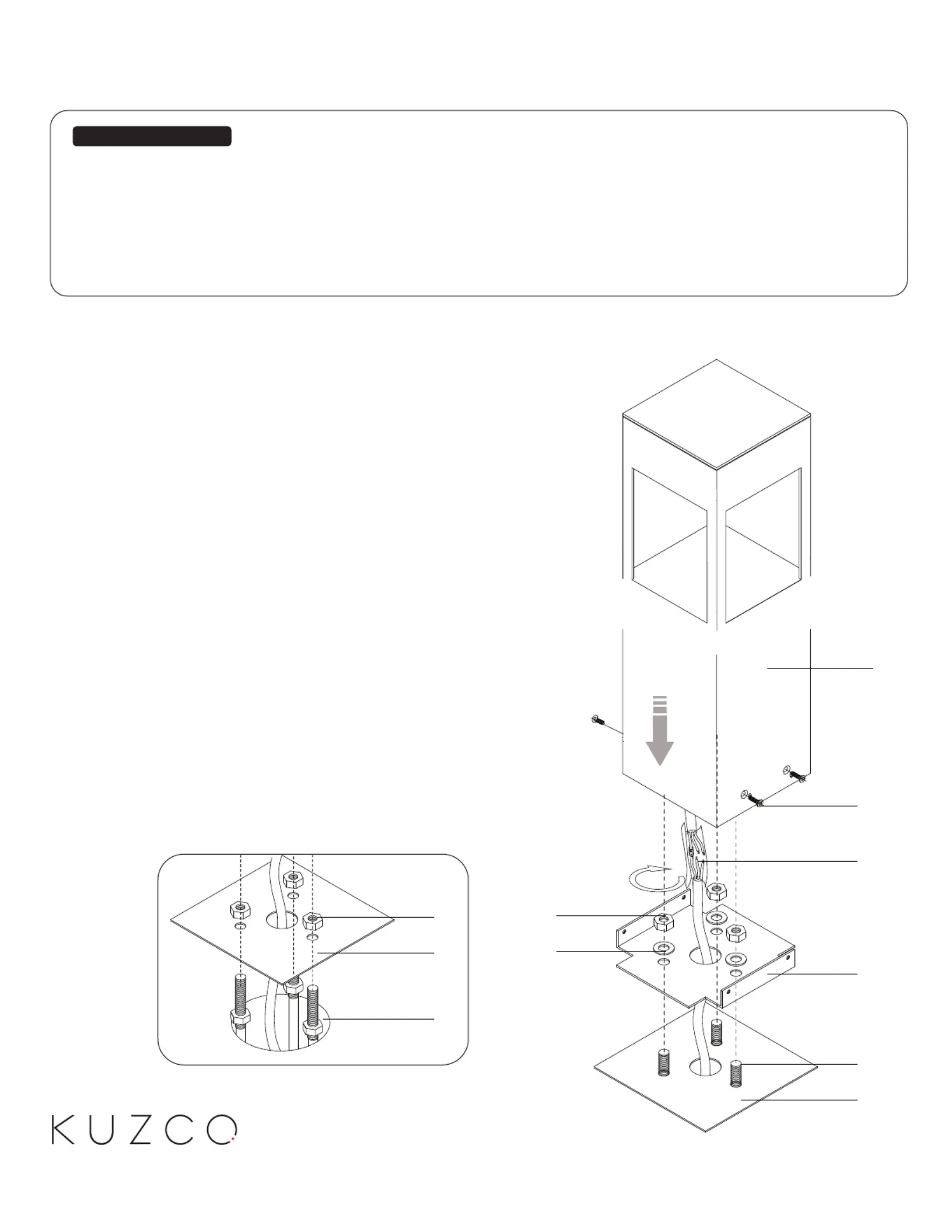

Illustration 2

• Make sure is POWERCOMPLETELY OFF at the fuse box

• Have your fixture installed by a qualified licensed electrician

• Prepare everything in a clear area

• Wear gloves at all time during this installation

• Read instructions carefully before you start assembly

• Keep this installation sheet for future reference

Technical Support: 1-855-855-8926

Please Note:

• This Kuzco LED fixtures come with pre-wired LED module(s)

• Unless instructed, Do Not touch any part of the LED module(s) as any unnecessary

contact with the module could cause permanent damage

• Use ELV (Electronic Low Voltage) type of dimmer for dimming application

1. Remove fixture from its original package

2. Provide means to bring supply wiring to bollard in accordance

with local code before pouring concrete

3. Secure anchor bolts to mounting plate with hex nuts (3a)(2e)

provided (2a) before concrete cures

4. After concrete is set, remove hex nuts and expose anchor (2a)

bolts (3a)

5. Remove base plate from fixture body by removing (2c)(1a)

mounting screws (1b)

6. Secure base plate to anchor bolts with washer (2c)(3a)(2b)

and hex nuts provided(2a)

7. Pull conduit through base plate to make proper electrical

connection (black to hot “L”, white to neutral “N”, ground to

“GND”) with wire nuts provided in hardware package, tie (1c)

access wires to avoid contact with ground

8. Install fixture body onto base plate, make sure wires are (1a)

not pitched between mounting surfaces, and then secure fixture

with mounting screws (1b)

Illustration 1

2a.

3a.

2e.
