wood block

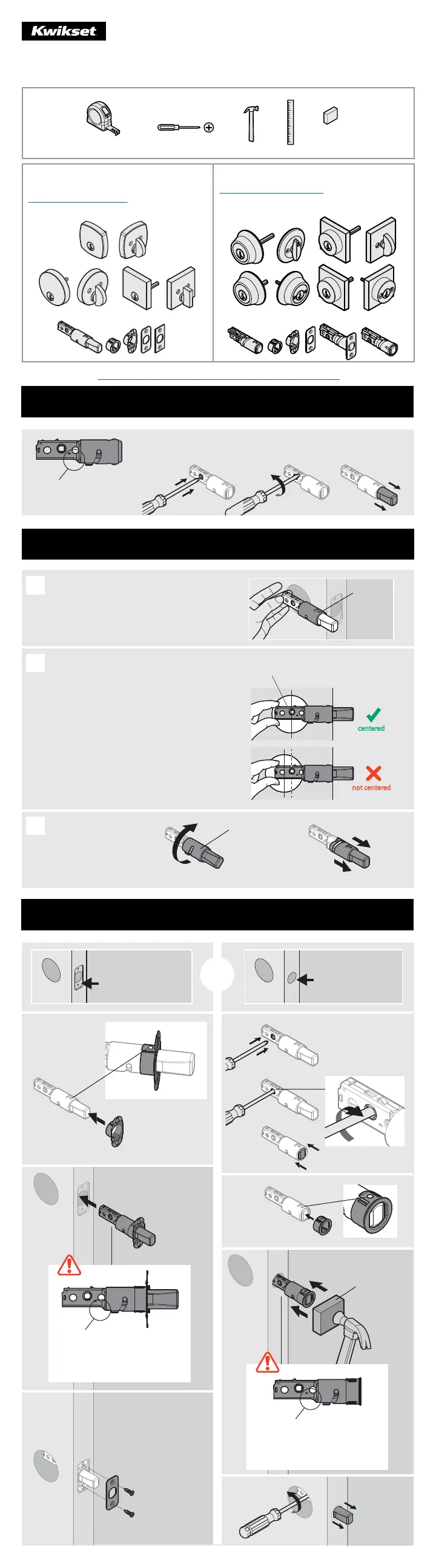

Installation Guide

www.kwikset.com

*Tools

*Tools will depend on install type

53973 / 01

This manual can be used to install a variety of deadbolts.

1-800-327-5625

Scroll to the bottom if you need help in preparing your door

oror

Latch

Latch

1

Extend latch bolt (Low prole models)

180°

Use a screwdriver to extend the latch bolt.

Make sure the curve is on

the bottom of the latch.

A

B

C

2

Adjust the backset of the latch (if needed)

Use a screwdriver to

retract the latch bolt.

Install

drive-in

collar.

Extend the

latch bolt.

2x

Install backplate.

Install

faceplate.

Make sure the curve is on

the bottom of the latch.

Make sure the curve is on

the bottom of the latch.

Door edge NOT

chiseled

Door edge chiseled

or

wood block

3

Install Latch

Hold the latch in front of the door hole, with

the latch case ush against the door edge.

latch case

If the D-shaped hole is centered

in the door hole, no adjustment is

required. Proceed to step 4.

If the D-shaped hole is NOT centered, adjust

latch. See “Latch Adjustment” (step 3C).

Latch Adjustment

(only if needed)

180°

Rotate the front of the

latch to extend it.

centered

not centered

D-shaped hole

For Low Profile Deadbolts Models

(

258 series, Uptown, Downtown, Midtown, and

San Clemente rectangular)

Follow steps 1 through 6

For Regular Deadbolts Models

(158

, 159, 660, 665, 780, 816, 980, 985, Halifax and Milan)

Follow steps 7 through 11
