Mounting & connecting

LANCOM, LANCOM Systems, LCOS, LANcommunity, LANCOM Service LANcare, LANCOM Active Radio Control, and AirLancer are registered trademarks. All other names or descriptions used may

be trademarks or registered trademarks of their owners. This document contains statements relating to future products and their attributes. LANCOM Systems reserves the right to change these

without notice. No liability for technical errors and/or omissions. 0825

Before initial startup, please make sure to take notice of the information regarding the intended use in the

enclosed installation guide!

Please note that support for third-party accessories is not provided.

Please observe the following when setting up the device

→Donotplaceanyobjectsonthetopofthedeviceorstackseveraldevices

→Lockablewallandceilingmountingusingthesuppliedwallmount

i

LANCOM LX-7400

Hardware Quick Reference

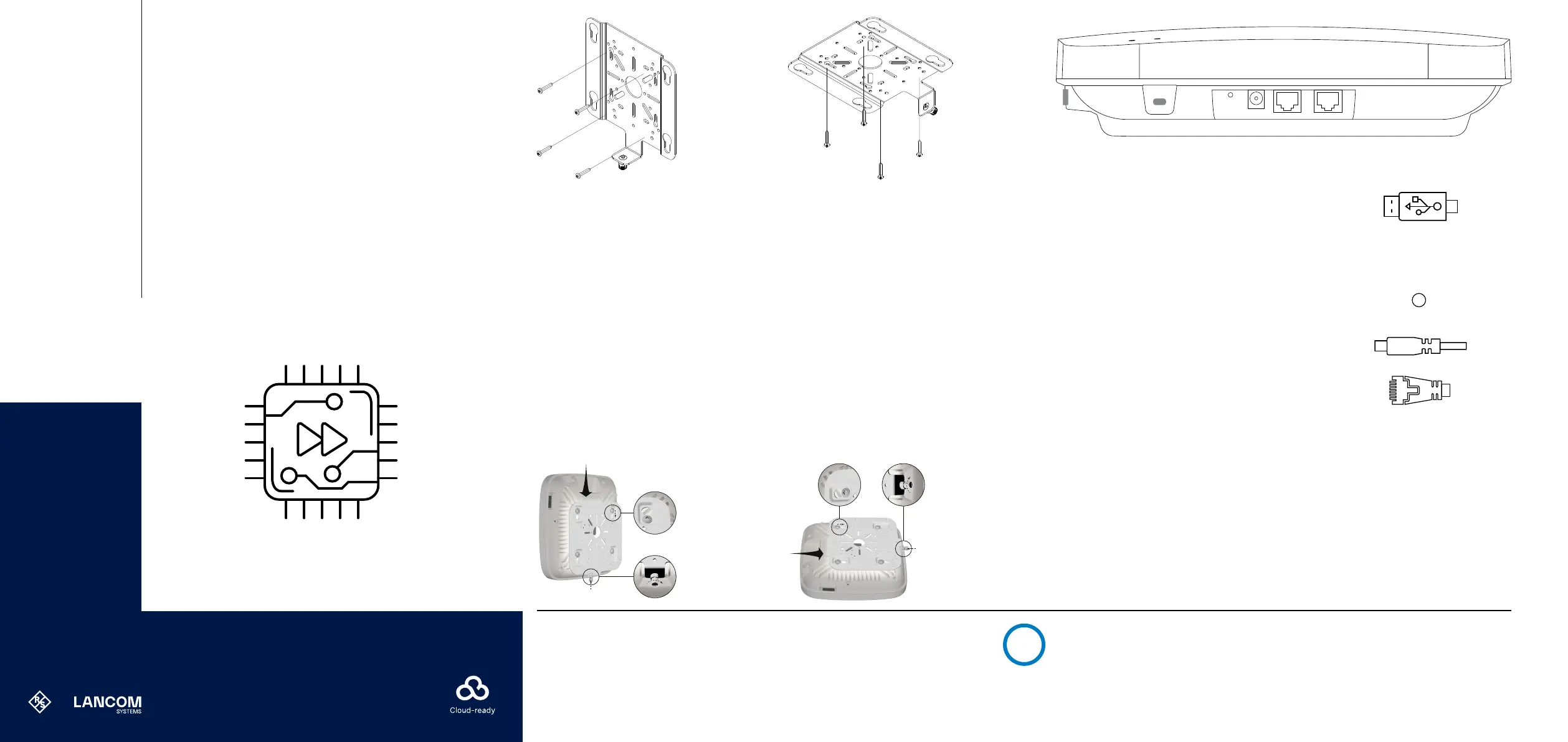

Wall mounting

Depending on the wall material structure, select 4 suitable pan

head screws M4x35

➀ and, if necessary, suitable dowels for

mounting the retaining plate

➁ on a sufficiently load-bearing

wall.

Mount the retaining plate

➁with the screws ➀through the

holes marked in the illustration to the wall.

The access point is already prepared for mounting on the

mounting plate.

Insert the access point into the mounting plate so that the locking

mechanisms on the device and mounting plate are opposite each

other and the screws M6x10

➃ already pre-assembled on the

device reach into the keyhole-shaped recesses of the retaining

plate. Then push the device towards the locking mechanism up

to the stop.

Ensure that the appliance is locked by tightening the locking

screw

➂ in the direction of the device and then turn it 90°

clockwise.

To remove the device, turn the locking screw

➂ 90°

counterclockwise and pull it away from the device. The device

can now be removed from the retaining plate in the opposite

direction to the locking direction.

➃

➂

Ceiling mounting

Depending on the ceiling material structure, select 4 suitable

pan head screws M4x35

➀ and, if necessary, suitable dowels

for mounting the retaining plate

➁ on a sufficiently load-bearing

ceiling.

Mount the retaining plate

➁with the screws ➀through the

holes marked in the illustration to the ceiling.

The access point is already prepared for mounting on the

mounting plate.

Insert the access point into the mounting plate so that the locking

mechanisms on the device and mounting plate are opposite each

other and the screws M6x10

➃ already pre-assembled on the

device reach into the keyhole-shaped recesses of the retaining

plate. Then push the device towards the locking mechanism up

to the stop.

Ensure that the appliance is locked by tightening the locking

screw

➂ in the direction of the device and then turn it 90°

clockwise.

To remove the device, turn the locking screw

➂ 90°

counterclockwise and pull it away from the device. The device

can now be removed from the retaining plate in the opposite

direction to the locking direction.

➃➂

➀

USB 2.0 interface

Connect compatible USB devices to the USB interface either

directly or via a suitable USB cable.

➁

Kensington Lock holder

For mechanical theft protection of the access point

➂

Reset button

Pressed up to 5 seconds: Device restart

Pressed longer than 5 seconds:

Configuration reset and device restart

RESET

➃

Power supply connection socket

Connect a suitable 12V power supply unit here.

➄

TP-Ethernet interfaces ETH1 / ETH2

Connect the ETH1 or ETH2 interfaces to other network

components using suitable Ethernet cables.

➀

➁

➂

➂

➁

➀

➁➃➂➀

➄
