EN

www.weldline.eu

LINCOLNELECTRICIBERIAS.L.

Ctra.LaureàMiró396-398,

08980SantFeliudeLlobregat(Barcelona)-SPAIN

WTT220W18W

Curent

Duty cycle 60%250 A350 A

Duty cycle 100%200 A320 A

Light alloy welding, reduce the duty cycle about 30%

Water flow mini1.0 l/mn

Water pressure3.3 bars

Maxi temperature inlet water45°C

Voltage classL - 113 V

Gas flowMini : 7 l/mn - Maxi : 13 l/mn

Using electrodesØ 1.0 / 3.2 mmØ 1.0 / 4.0 mm

Origin

equipment fitted

to the torch

Back Cap

LongLong

LongLong

NozzleØ 12 mmØ 12 mm

ElectrodeØ 2.4 LØ 2.4 L

WTT2

4 m8 m

20W

RL S

W000278893W000278906

RLS

18W

RL S

W000278897W000278900

20W

RL C5B

W000278894W000278905

RLC5B

18W

RL C5B

W000278898W000278899

N°8695-1196_Rev2_05/2018

We thank you for your trust in our company by purchasing this equipment which will provide

you with complete satisfaction if you comply with its conditions for use and maintenance.

CAUTION: The company declines all responsibility in case of modification, addition of

components or subassemblies,or any transformation of the equipment carried out by

the customer or a thirdparty, without prior specific written agreement from the company.

Arc welding and plasma cutting may be dangerous for the operator and persons close

to the work area. Read the operating manual and safety instructions W000261712.

See www.weldline.eu.

A) Maintenance / Troubleshooting

Before any internal verifications and repair work, make sure that the equipment is separated

from the electric installation by electrical isolation (by electrical isolation is meant a group of

operations designed to separate and keep the equipment de-energized).

At least every six months, you must check the proper condition of the insulation and

connections of the electric equipment and accessories such as plugs, flexible wires,ducts,

connectors, extension leads, partholders, electrode-holders, or torches...

Maintenance and repair work on the jackets and insulating ducts must be carried out

extremely carefully.

Have defective parts repaired by a specialist, or better still, have them replaced.

Routinely check the proper tightening and cleanliness of the electric connections.

B) Work-station

Use only electrode holders and torches which are perfectly insulated.

The operator must be insulated from the ground-surface and the workpiece (gloves, safety

shoes, dry clothes, leather apron, and so forth...).

Do not touch the electrode wire and the part (or the nozzle) simultaneously.

C) Protection

It is absolutely essential that your protect your eyes from blinding glare (glare of arc invisible

light and infrared and ultraviolet radiation).

The welding mask,without or with helmet,must always be equipped with a protective filter

whose gradation depends on the welding arc current intensity (EN 169 Standard).

Fumes emitted during welding operations may be dangerous. Use adequate protection

means (fumes extraction, ventiled masks...)

Technical data

TIG manual torch with natural cooling

Safety instructions

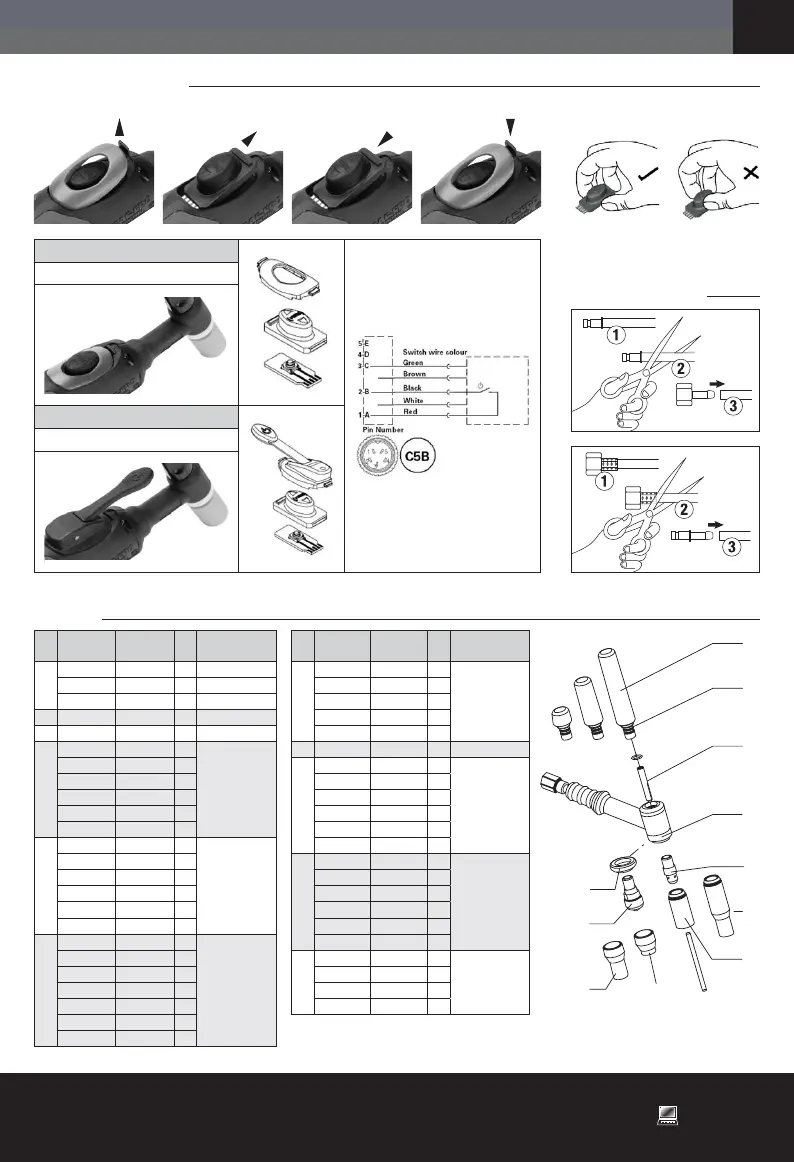

French lever rangeErgonomic Range

WTT2

4 m8 m

20W EB S

W000278891W000278911

EBS

18W EB S

W000278895W000278902

20W

EB C5B

W000278892W000278909

EB

C5B

18W

EB C5B

W000278896W000278901

20W EB S/

C5B FLEX

W000382786W000382787

18W EB S/

C5B FLEX

W000382788W000382789

WTT2 20W

WTT2 18W

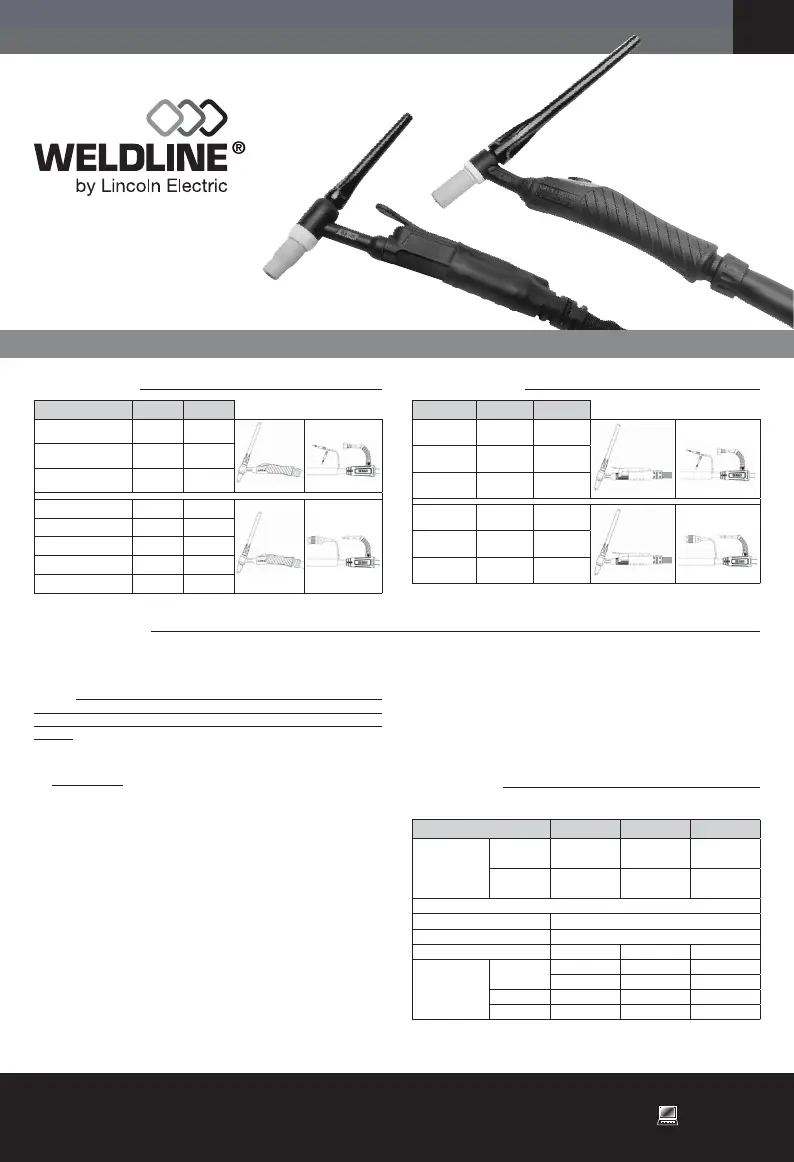

I nstructions for safety, use and maintenance

EN

www.weldline.eu

LINCOLN ELECTRIC EUROPE S.L.

c/o Balmes, 89 - 8

o

2

a

- 08008 Barcelona - SPAIN

We thank you for your trust in our company by purchasing this equipment which will

provide you with complete satisfaction if you comply with its conditions for use and

maintenance.

CAUTION: The company declines all responsibility in case of modifi cation, addition of

components or subassemblies, or any transformation of the equipment carried out

by the customer or a thirdparty, without prior specifi c written agreement from the

company.

Arc welding and plasma cutting may be dangerous for the operator and persons close

to the work area. Read the operating manual and safety instructions W000261712.

See www.weldline.eu.

A) Maintenance / Troubleshooting

Before any internal verifi cations and repair work, make sure that the equipment is separated

from the electric installation by electrical isolation (by electrical isolation is meant a group of

operations designed to separate and keep the equipment de-energized).

At least every six months, you must check the proper condition of the insulation and

connections of the electric equipment and accessories such as plugs, fl exible wires, ducts,

connectors, extension leads, partholders, electrode-holders, or torches...

Maintenance and repair work on the jackets and insulating ducts must be carried out

extremely carefully.

Have defective parts repaired by a specialist, or better still, have them replaced.

Routinely check the proper tightening and cleanliness of the electric connections.

B) Work-station

Use only electrode holders and torches which are perfectly insulated.

The operator must be insulated from the ground-surface and the workpiece (gloves, safety

shoes, dry clothes, leather apron, and so forth...).

Do not touch the electrode wire and the part (or the nozzle) simultaneously.

C) Protection

It is absolutely essential that your protect your eyes from blinding glare (glare of arc invisible

light and infrared and ultraviolet radiation).

The welding mask, without or with helmet, must always be equipped with a protective fi lter

whose gradation depends on the welding arc current intensity (EN 169 Standard).

Fumes emitted during welding operations may be dangerous. Use adequate protection

means (fumes extraction, ventiled masks...)

Technical data

TIG manual torch with natural cooling

WTT291726

Curent

Duty cycle

35%

110 A135 A180 A

Duty cycle

60%

80 A100 A130 A

Light alloy welding, reduce the duty cycle about 30%

Voltage classL - 113 V

Gas fl owMini : 7 l/mn - Maxi : 13 l/mn

Using electrodesØ 1.0 / 3.2 mmØ 1.0 / 3.2 mmØ 1.0 / 4.0 mm

Origin

equipment fi tted

to the torch

Back Cap

LongLongLong

LongLongLong

NozzleØ 10 mmØ 10 mmØ 12 mm

ElectrodeØ 1.6 LØ 2.0 LØ 2.4 L

I nstructions for safety, use and maintenance

N°8695-1195_Rev2_05/2018

Safety instructions

French lever range

WTT2

4 m8 m

9 RL S

W000278878W000278923

RLS

17 RL S

W000278883W000278918

26 RL S

W000278888W000278914

9 RL C5B

W000278879W000278922

RLC5B

17 RL C5B

W000278884W000278917

26 RL C5B

W000278890W000278913

WTT2 9

WTT2 17

WTT2 26

Ergonomic Range

WTT2

4 m8 m

9 EB S

W000278877W000278929

EBS

17 EB S

W000278881W000278920

26 EB S

W000278886W000278916

9 EB C5B

W000278875-

EBC5B

17 EB C5B

W000278882W000278919

26 EB C5B

W000278887W000278915

17 EB S/C5B FLEX

W000382782W000382783

26 EB S/C5B FLEX

W000382784W000382785

EN
