ASSEMBLY INSTRUCTIONS FOR

PREMIUM SIMPLEX SYSTEMS

PRE-PACKAGED UNIT:

Verify all parts with basin and cover assemblies are received intact. The

flanges provided will allow the following discharge/vent combinations to be

used: 3” discharge/2” vent, or a 2” discharge/2” vent, depending on cover

configuration. Please note that basin should be backfilled with cover secured

on basin to ensure that cover holes will align properly.

1. Remove bolts and washers in cover and set aside.

2. Remove gasket material from hardware kit and place material around

circumference of basin inside of bolt circle.

3. Place the pump on a flat surface and install the discharge pipe in the

discharge of the pump.

4. Install float switch 4” above discharge of pump with a 3-1/2” tether length.

Float switch should be installed in a manner that will not allow it to contact

the pump or side of basin during operation. Refer to float switch instruction

manual for alternative settings. Place the pump in the basin in the torque

stops.

5. To install the cover, pull the pump and float cords through the smallest hole

in the cover. Place the cover on the basin, making sure the discharge pipe

is through the proper hole in the cover. (Holes are labeled on bottom of

cover.) Secure the lid to the basin using the bolts and washers provided.

Place the larger, square-cut O-ring on discharge pipe, beveled edge down.

Install flange and tighten bolts. Place the remaining O-ring in the bottom of

the vent flange with beveled edge down. Install flange and tighten bolts.

6. Pull the slack out of the cords and install them through the grommet 1–2

inches above the cover. Press the grommet in the hole in the cover.

7. Install a 2” vent pipe by threading it on the vent flange. Make sure the flange

bolts are tight.

LITTLE GIANT

SEWAGE ACCESSORIES

& INSTRUCTIONS FOR

TYPICAL INSTALLATION

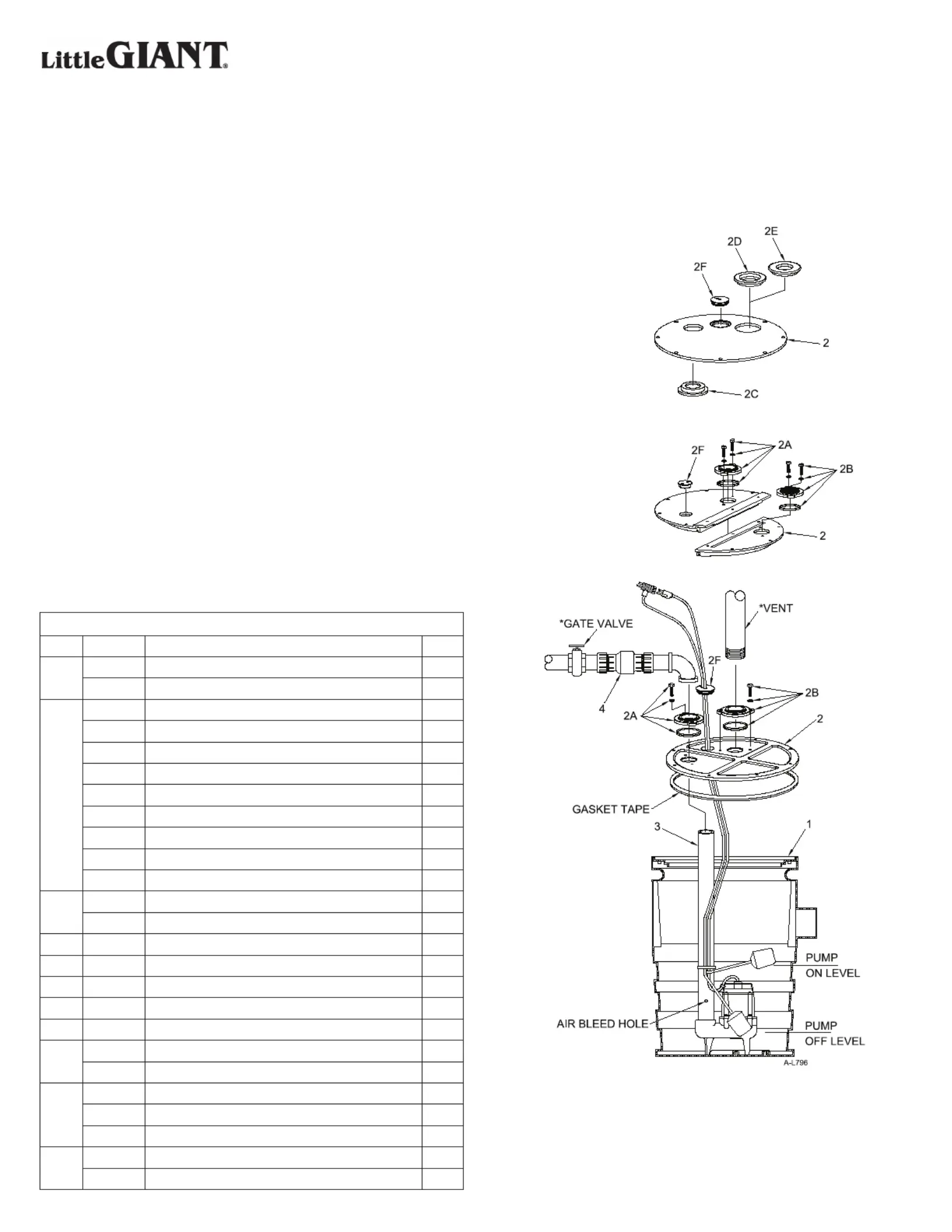

Figure 1 - Typical Installation

Franklin Electric Co., Inc.

P. O. Box 12010

Oklahoma City, OK 73157-2010

Phone: 405-947-2511 • Fax: 405-947-8720

www.LittleGiantPump.com

CustomerService-[email protected]

REPLACEMENT PARTS LIST

ITEMPART NO.DESCRIPTIONQTY.

1

113093Basin, 24” x 24”1

113095Basin, 20” x 30”1

2

1130571Cover, 1-piece, slip-fit flanges, foam, 3V2D, 2V3D, or 2V2D

11318000Cover, 1-piece, bolt-on flanges, foam, 2V2D1

113181Cover, 1-piece, bolt-on flanges, foam, 2V3D1

113182Cover, 1-piece, bolt-on flanges, foam, 3V2D1

113183Cover, 1-piece, bolt-on flanges, foam, 3V3D1

113184Cover, 2-piece, bolt-on flanges, foam, 2V2D1

113185Cover, 2-piece, bolt-on flanges, foam, 2V3D1

113186Cover, 2-piece, bolt-on flanges, foam, 3V2D1

113187Cover, 2-piece, bolt-on flanges, foam, 3V3D1

2A

113214Discharge flange kit, 2”1

113216Discharge flange kit, 3”1

2B113215Vent flange kit, 2” (threaded)1

2C925024Grommet, 2” pipe1

2D113341Grommet, 3” pipe1

2E113418Grommet, reducer 3” to 2” pipe1

2FN/AGrommet, 2-hole 1

3

113423Discharge pipe, 2”1

113424Discharge pipe, 3”1

4

940022Swing check valve, 2”1

940023Swing check valve, 3”1

940026Swing check/ball valve combo, 2”1

5

513288HWAB tank alert, indoor only (not shown)1

513273303HWXT tank alert, indoor/outdoor (not shown)1

Form 998264 - 12/01/2010

© 2006 Franklin Electric Co., Inc.

Little Giant® is a registered trademark of Franklin Electric Co., Inc.

PRE-ASSEMBLED UNIT:

The pre-assembled unit is furnished fully assembled and ready for installation.

Remove check valve or ball/check valve from discharge pipe and re-install as

shown on typical installation. For best performance of check valves CAUTION:

when handling solids, install in a horizontal position or at an angle of not more

than 45°. Do not install check valve in a vertical position, as solids may settle in

valve and prevent opening on start-up. Remove the cord from the vent hole and

install the vent pipe. See Figure 1 to complete a typical installation.

To test the unit, plug the unit in and run water into the basin until the unit

switches on. If the unit does not operate, refer to the troubleshooting information

in the instructions for the pump.
