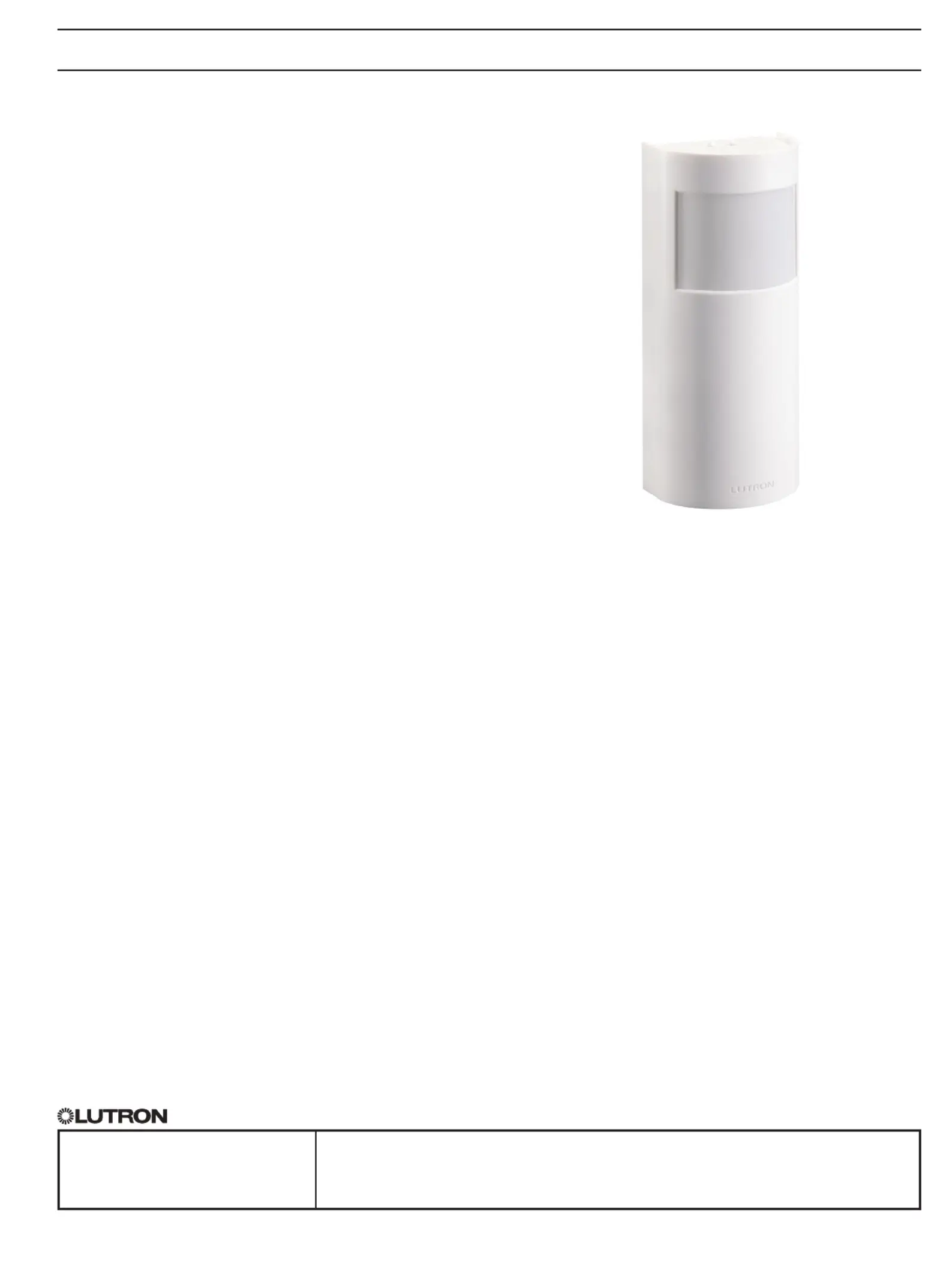

S P E C I F I C AT I O N S U B M I T TA L Page
Job Name:
Job Number:
Model Numbers:
Caséta Wireless Motion Sensor
3691125b 1 03.09.20
Caséta Wireless Motion Sensor
Lutron Caséta motion sensors are wireless, battery-
powered, passive infrared (PIR) sensors that automatically
control lights via RF communication to compatible dimming
or switching devices. These sensors detect the heat from
people moving within an area to determine when the space
is occupied. The sensors then wirelessly transmit the
appropriate commands to the associated dimming or
switching devices to turn the lights on or off automatically.
They combine both convenience and exceptional energy
savings along with ease of installation.
Features
• Wireless motion sensor has two settings available: Auto-
On/Auto-Off, and Manual-On/Auto-Off
• Vacancy model meets CA Title 24 requirements
• Passive infrared motion detection with exclusive Lutron XCT
Technology for fine motion detection
• 180° field of view:
– Minor motion = 15 x 2 x 35 = 1050 ft
2
(97.5 m
2
)
– Major motion = 20 x 2 x 45 = 1800 ft
2
(167.2 m
2
)
• Simple and intuitive adjustments available for Timeout,
Activity, and Auto-On settings
• Accessible test buttons make setup easy
• Lens illuminates during test mode to verify ideal locations
• Multiple sensors can be added for extended coverage; refer
to product specification submittal of receiving device to
determine system limits
• 10-year battery life design
• RoHS compliant
Compatible RF Devices
• For use with Lutron Caséta products only
Models Available
• PD-OSENS
• PD-VSENS
Sensor Type
O = Occupancy/Vacancy (Auto-On/Auto-Off)
V = Vacancy (Manual-On/Auto-Off)
1
S P E C I F I C AT I O N S U B M I T TA L Page
Job Name:
Job Number:
Model Numbers:
Caséta Wireless Motion Sensor
3691125b 2 03.09.20
RF Range
• Distance between local load controls and sensor should
not exceed 60 ft (18 m) line-of-sight or 30 ft (9 m)
through walls.
Sensor Coverage Test
• Dedicated test button
• Lens illuminates orange in response to motion during
test mode
Wireless Communication Test
• Dedicated test button
• Turn associated loads on and off
Timeout Options
• 1 minute
• 5 minutes
• 15 minutes (default setting)
• 30 minutes
Auto-On Options (Occupancy Versions Only)
• : Sensor turns lights ON and OFF automatically Enabled
(default setting)
• *: Lights must be turned ON manually from Disabled
dimming or switching device. Sensor turns lights OFF
automatically
• Pets transmit heat and may activate sensor. It is Pets:
recommended to disable Auto-On.
• If placing sensor in bedroom, it is Bedroom:
recommended to disable Auto-On.
• When the load control is manually Off While Occupied:
turned OFF, the sensor will not turn the lights back ON
automatically while the room is occupied. Once the room
is vacated, the sensor returns back to normal operation
after the timeout period has expired.
Example: Watching a movie.
Sensitivity Options
• : (default setting)Low Activity
• : Medium Activity
• : High Activity
* There is a 15-second grace period that begins when the lights are
automatically turned off, during which the lights will automatically turn
back on in response to motion. This grace period is provided as a safety
and convenience feature in the event the lights turn off while the room is
still occupied, so that the user does not need to manually turn the lights
back on. After 15 seconds, the grace period expires and the lights must
be manually turned on.
Specifications
Regulatory Approvals
• cULusR listed
• FCC
• IC
• IFT
• Meets CA (U.S.A.) Energy Commission
Title 24 requirements
Power/Performance
• Operating voltage: 3 V-
• Operating current: 14 μA nominal
• Requires one CR 123 lithium battery
• 10-year battery-life design
• Non-volatile memory (saved changes are stored during
power loss)
Environment
• Temperature: 32 °F to 104 °F (0 °C to 40 °C)
• For indoor use only
• Relative humidity: less than 90% non-condensing
For unconditioned environments where the air Note:
temperature may approach the temperature of the
occupants, additional sensors will be needed to achieve
the same coverage. This is true of any sensor that relies
exclusively on passive infrared technology.
Warranty
• 1-Year Limited Warranty. For additional Warranty
information, please visit www.casetawireless.com/warranty
2
S P E C I F I C AT I O N S U B M I T TA L Page
Job Name:
Job Number:
Model Numbers:
Caséta Wireless Motion Sensor
3691125b 3 03.09.20
Installation Overview
Sensor Setup
• For more information, please see the Caséta Motion
Sensor Quick-Start Guide (P/N 0301931) at
www.lutron.com.
Sensor Placement
• The mounting height of the sensor should be between
6 ft and 8 ft (1.6 m and 2.4 m).
• For smaller rooms, detection may be improved by placing
the sensor between 3 ft and 6 ft (0.91 m and 1.8 m) from
the floor.
• The ability to detect motion requires that the sensor have
line-of-sight of all room occupants. The sensor must have
an unobstructed view of the room. place behind DO NOT
or near tall cabinets, shelves, hanging fixtures, or anything
that may obstruct the sensor’s view. The sensor cannot
detect occupants through glass objects such as patio or
shower doors.
• Hot objects and moving air currents can affect the
performance of the sensor. To ensure proper operation,
the sensor should be mounted at least 4 ft (1.2 m) away
from light bulbs and HVAC vents.
• The performance of the sensor depends on a temperature
differential between the ambient room temperature and
that of room occupants. Warmer rooms may reduce the
sensor’s ability to detect occupants.
• Distance between local load controls and sensor should
not exceed 60 ft (18 m) line-of-sight or 30 ft (9 m)
through walls.
3
