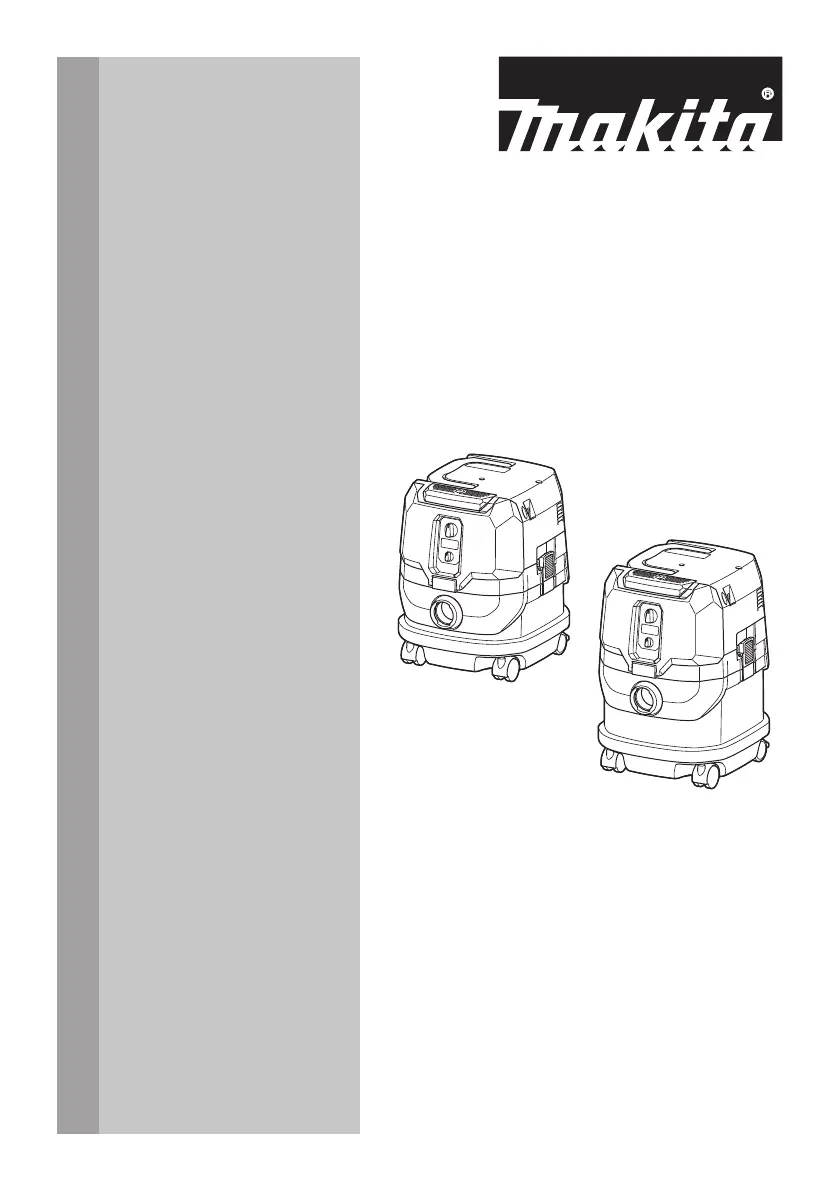

INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
Cordless Vacuum Cleaner
Aspiradora Inalámbrica
GCV01
GCV03
IMPORTANT: Read Before Using.
IMPORTANTE: Lea antes de usar.
2 ENGLISH
ENGLISH (Original instructions)
SPECIFICATIONS
Model: GCV01 GCV03
Standard îš¿lter type Cloth îš¿lter (for dry and wet dust)
Maximum air volume (with BL4040, ø32 mm (1-1/4") x 1.7 m (67") hose)
2.7 m3/min (95.35 cu.ft/min)
Vacuum (with BL4040, ø32 mm (1-1/4") x 1.7 m (67") hose) 23 kPa
Recoverable capacity 8 L (2.1 gal.) 15 L (4 gal.)Dust
Water 6 L (1.6 gal.) 12 L (3.2 gal.)
Dimensions (L x W x H) 366 mm x 334 mm x 425 mm
(14-3/8″ x 13-1/8″ x 16-3/4″)
366 mm x 334 mm x 475 mm
(14-3/8″ x 13-1/8″ x 18-3/4″)
Rated voltage D.C. 36 V - 40 V max
Net weight 8.1 - 10.0 kg (17.9 - 22.0 lbs) 8.4 - 10.3 kg (18.5 - 22.7 lbs)
• Due to our continuing program of research and development, the specications herein are subject to change
without notice.
• Specications and battery cartridge may di󰀨er from country to country.
• The weight does not include accessories but battery cartridge(s). The lightest and heaviest combination weight
of the appliance and battery cartridge(s) are shown in the table.
• For wet dust, the oat and the water lter or cloth lter are required.
Applicable battery cartridge and charger
Battery cartridge BL4020 / BL4025 / BL4040* / BL4050F*
* : Recommended battery
Charger DC40RA / DC40RB / DC40RC
• Some of the battery cartridges and chargers listed above may not be available depending on your region of
residence.
WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges
and chargers may cause injury and/or îš¿re.
SAFETY WARNINGS
IMPORTANT
SAFETY
INSTRUCTIONS
When using an electrical appliance,
basic precautions should always be fol-
lowed, including the following:
READ ALL
INSTRUCTIONS
BEFORE USING
THIS APPLIANCE.
WARNING
To reduce the risk of îš¿re, electric shock
or injury:
1. Do not leave appliance when battery
îš¿tted. Remove battery from appli-
ance when not in use and before
servicing.
2.
Do not expose to rain. Store indoors.
3. Do not allow to be used as a toy.
Close attention is necessary when
used by or near children.
4. Use only as described in this man-
ual. Use only manufacturer's recom-
mended attachments.
5. Do not use with damaged battery.
If appliance is not working as it
should, has been dropped, dam-
aged, left outdoors, or dropped into
water, return it to a service center.
3 ENGLISH
6. Do not handle battery or appliance
with wet hands.
7.
Do not put any object into openings.
Do not use with any opening blocked;
keep free of dust, lint, hair, and any-
thing that may reduce air ow.
8. Keep hair, loose clothing, îš¿ngers,
and all parts of body away from
openings and moving parts.
9. Turn o󰀨 all controls before removing
the battery cartridge.
10. Use extra care when cleaning on
stairs.
11. Do not use to pick up ammable or
combustible liquids, such as gaso-
line, or use in areas where they may
be present.
12. Use only the charger supplied by
the manufacturer to recharge.
13. Do not pick up anything that is burn-
ing or smoking, such as cigarettes,
matches, or hot ashes.
14. Always make sure that îš¿lters are
correctly installed before use. Do
not use the cleaner without îš¿lters
in place. Replace a damaged îš¿lter
immediately. It is recommended to
have some spares as îš¿lters are con-
sumable items.
15. Do not charge the battery outdoors.
16. Always install oat before any wet
pick-up operation.
17.
Do not use the cleaner as a stool or
work bench. The machine may fall
down and may result in personal injury.
18. Do not vacuum the following:
• Flammable liquid (kerosene,
gasoline, solvents such as ben-
zine, thinner, etc.)
• Hot substances that are burn-
ing or smoking (cigarettes,
matches, incense sticks, can-
dles, hot ashes), sparks and
metal dust generated by cutting
or grinding metal, etc.
• Flammable material (toner,
paint, spray, etc.)
• Foam like carpet cleaning agent,
etc. (they may cause explosion
or îš¿re)
• Explosive or pyrophoric sub-
stances (nitroglycerin, alumi-
num, magnesium, titanium, zinc,
red phosphorus, yellow phos-
phorus, celluloid, etc. and their
dust, gas or steam)
• Sharp objects (glass, cutlery,
wood splinter, metal, stone, nail,
razor, push pin, etc.)
•
Solidifying and conductive îš¿ne
powder (metal or carbon powder)
• Dehumidier
• Large amount of powder (our,
îš¿re extinguisher powder, etc.)
• Substances that cause toxic
symptoms
• Aggressive chemicals (acid,
leach, etc.)
• Liquid or damp garbage, includ-
ing vomit and excreta
• Asbestos
• Pesticides
Such action may cause îš¿re, injury
and/or property damage.
To reduce your exposure to these
chemicals, always wear approved
respiratory protection such as dust
masks that are specially designed
to îš¿lter out microscopic particles.
Direct the exhaust air away from
your face and body.
NOTE: Read the OSHA regulation
on silica dust to understand the
requirements needed to reduce
exposure to silica dust at the job-
site. Speciîš¿c rules apply to the drill-
ing, demolition cutting and grinding
materials that contain silica. All
OSHA requirements regarding
reducing silica dust can be found at
the OSHA website: www.osha.gov.
Battery tool use and care
1. Prevent unintentional starting.
Ensure the switch is in the o󰀨-po-
sition before connecting to battery
pack, picking up or carrying the
appliance. Carrying the appliance with
your îš¿nger on the switch or energiz-
ing appliance that have the switch on
invites accidents.
