Seite 1/8
Metra. The World’s Best Kits.
®
MetraOnline.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 3/22/24 INST109-KI1HG
I N S TA L L AT I O N I N S T R U C T I O N S
109-KI1HG
Patent Pending
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product. Ensure
that all installation connections, especially the
air bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
KIT FEATURES
• Engineered exclusively for the new 9-inch Pioneer
®
Modular
Solutions Receiver (DMH-WC6600NEX) Radio
*See radio manufacturer for current models.
• Both textured and painted gloss black to match the factory finish.

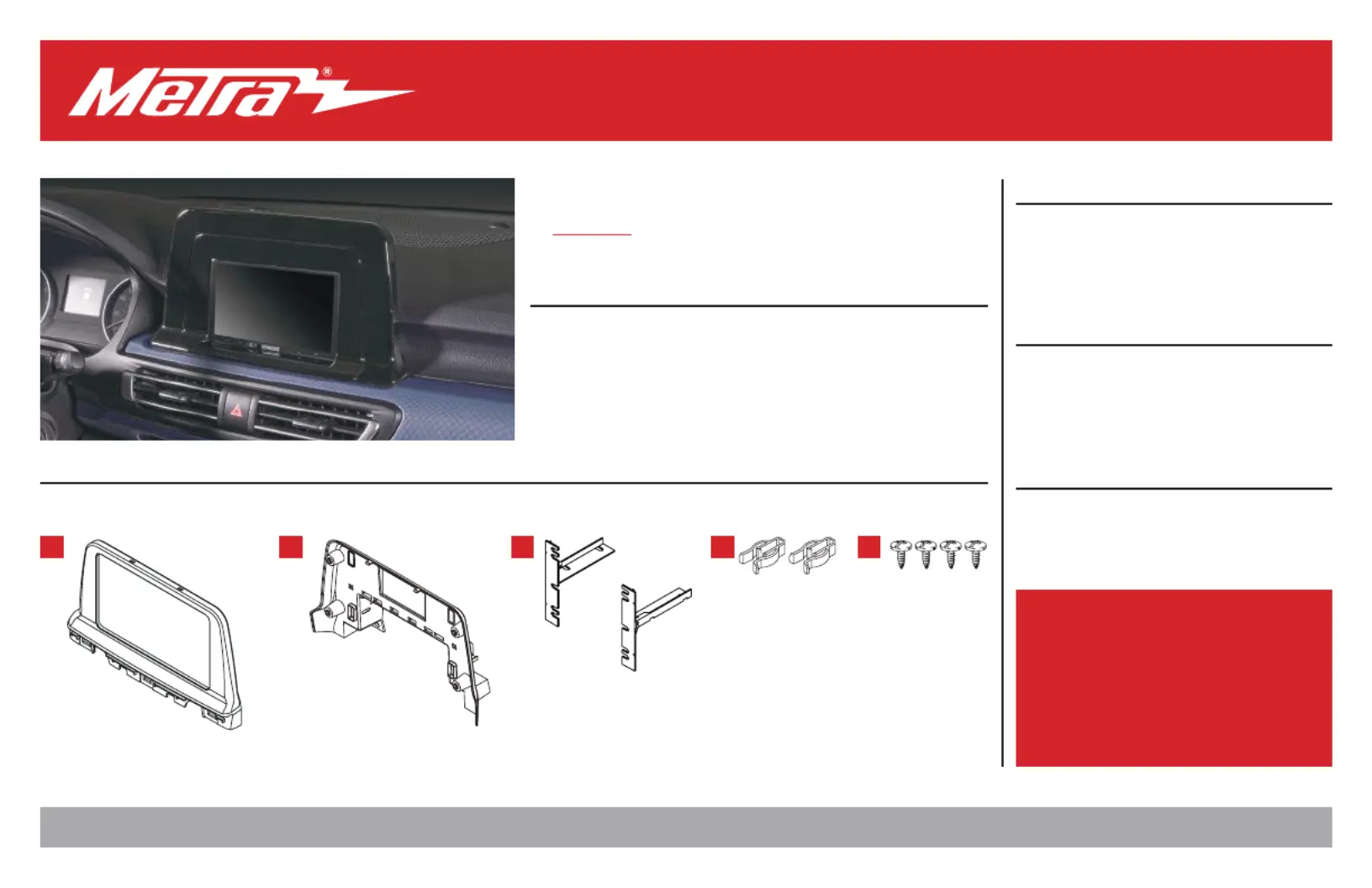

KIT COMPONENTS
A) Radio housing front • B) Radio housing back • C) Pioneer brackets • D) (2) panel clips • E) (4) #8 x 3/8” Phillips screws
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 10mm socket
TABLE OF CONTENTS
Dash Disassembly 2-3 ..............................................
Kit Preparation 4 .......................................................
Kit Assembly 5-6 ......................................................
Kia Seltos 2021-2023
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
A CB D E
WIRING & ANTENNA CONNECTIONS
Wiring Harness:
Visit metraonline.com for audio/
video and steering wheel control interface options.
Antenna Adapter: 40-KI11
386.257.1187
|
MetraOnline.com
2

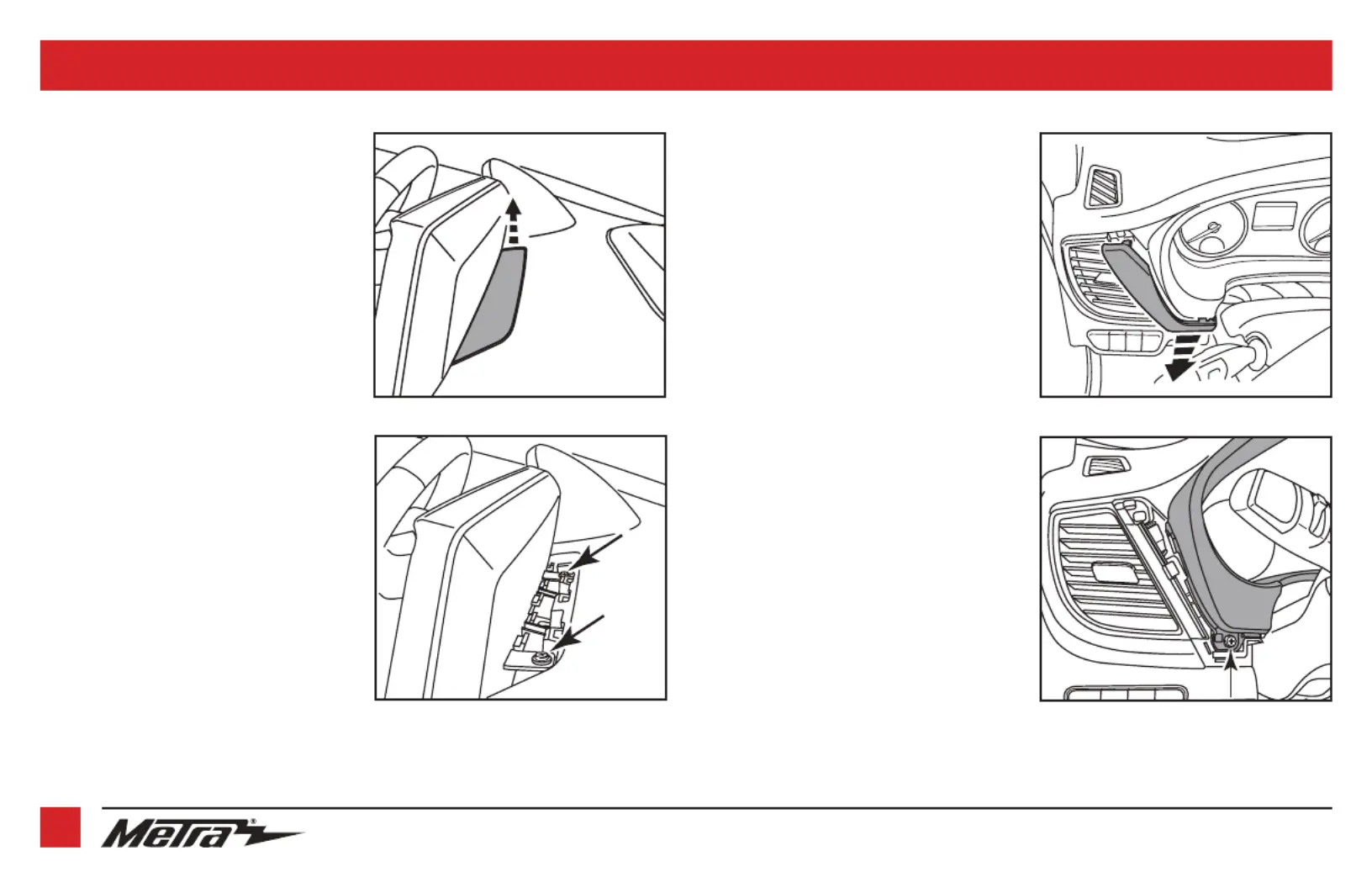

1. Unclip and remove the trim panel
behind the radio display. (Figure A)
2. Remove the (2) Phillips screws under
trim panel removed in step 1. (Figure B)
(Figure C)(Figure A)
(Figure D)(Figure B)
DASH DISASSEMBLY
3. Unclip and remove the small trim to the
left of the instrument cluster. (Figure C)
4. Remove (1) Phillips screw from behind
small trim panel removed in step 3.
(Figure D)
Continued on the next page
REV. 3/22/24 INST109-KI1HG
3

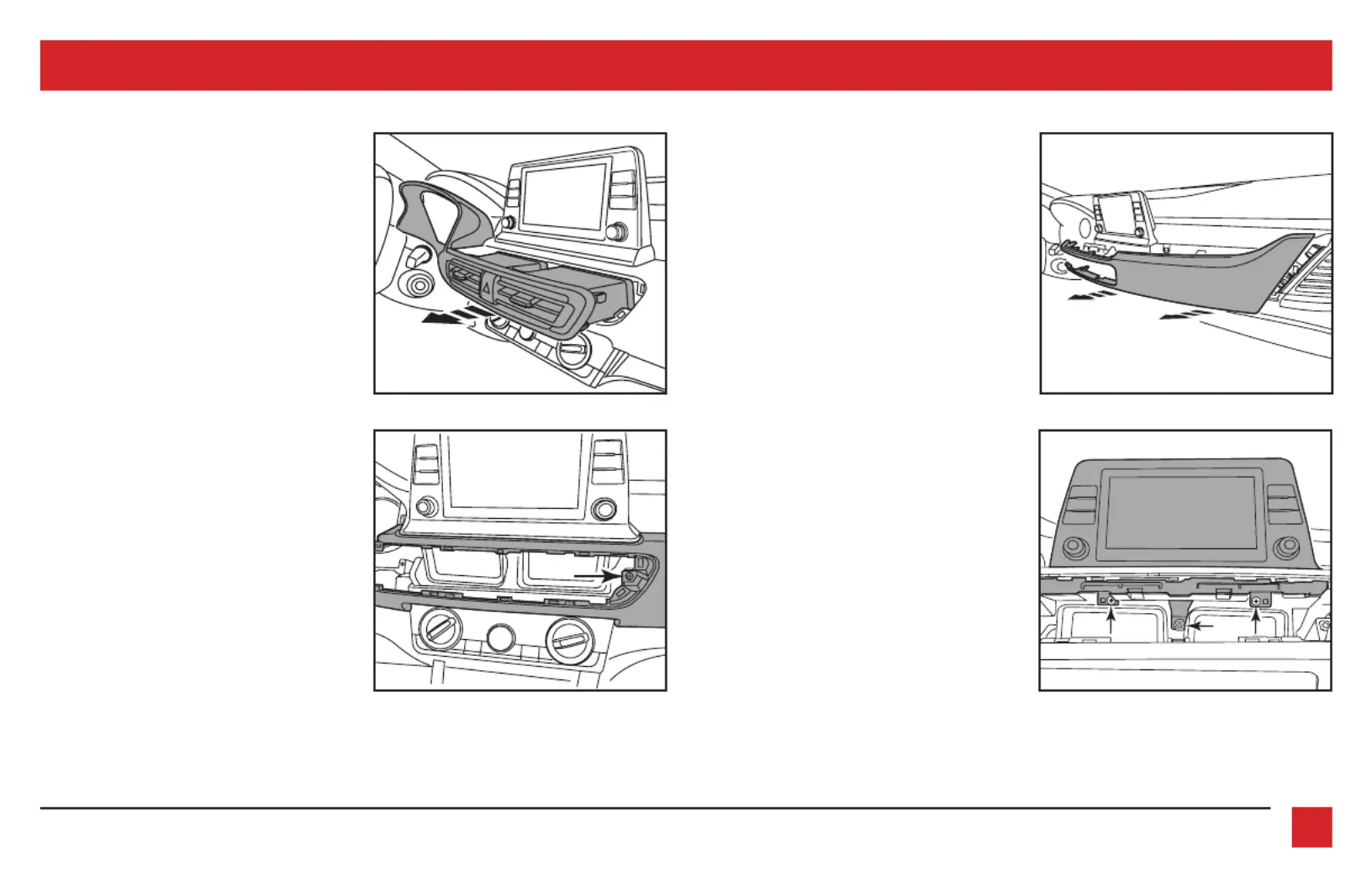

DASH DISASSEMBLY (CONT.)
(Figure E) (Figure G)
(Figure F) (Figure H)
5. Unclip and remove the entire trim
surrounding the instrument cluster and
including the a/c vents under the radio
display. (Figure E)
6. Remove (1) Phillips screws securing
the trim panel below the radio display
which had the a/c vents in it then unclip
and remove the panel. (Figure F, G)
7. Remove (2) Phillips screws and (1)
10MM nut securing the radio display and
chassis. (Figure H)
8. Unclip unplug and remove the radio
display and chassis.
Continue to Kit Assembly
