Seite 1/7
Copyright © 2011 SMSC or its subsidiaries. All rights reserved.
Circuit diagrams and other information relating to SMSC products are included as a means of illustrating typical applications. Consequently, complete information sufficient for
construction purposes is not necessarily given. Although the information has been checked and is believed to be accurate, no responsibility is assumed for inaccuracies. SMSC
reserves the right to make changes to specifications and product descriptions at any time without notice. Contact your local SMSC sales office to obtain the latest specifications
before placing your product order. The provision of this information does not convey to the purchaser of the described semiconductor devices any licenses under any patent
rights or other intellectual property rights of SMSC or others. All sales are expressly conditional on your agreement to the terms and conditions of the most recently dated
version of SMSC's standard Terms of Sale Agreement dated before the date of your order (the "Terms of Sale Agreement"). The product may contain design defects or errors
known as anomalies which may cause the product's functions to deviate from published specifications. Anomaly sheets are available upon request. SMSC products are not
designed, intended, authorized or warranted for use in any life support or other application where product failure could cause or contribute to personal injury or severe property
damage. Any and all such uses without prior written approval of an Officer of SMSC and further testing and/or modification will be fully at the risk of the customer. Copies of
this document or other SMSC literature, as well as the Terms of Sale Agreement, may be obtained by visiting SMSC’s website at http://www.smsc.com. SMSC is a registered
trademark of Standard Microsystems Corporation (“SMSC”). Product names and company names are the trademarks of their respective holders.
SMSC DISCLAIMS AND EXCLUDES ANY AND ALL WARRANTIES, INCLUDING WITHOUT LIMITATION ANY AND ALL IMPLIED WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND AGAINST INFRINGEMENT AND THE LIKE, AND ANY AND ALL WARRANTIES ARISING FROM ANY COURSE
OF DEALING OR USAGE OF TRADE. IN NO EVENT SHALL SMSC BE LIABLE FOR ANY DIRECT, INCIDENTAL, INDIRECT, SPECIAL, PUNITIVE, OR CONSEQUENTIAL
DAMAGES; OR FOR LOST DATA, PROFITS, SAVINGS OR REVENUES OF ANY KIND; REGARDLESS OF THE FORM OF ACTION, WHETHER BASED ON CONTRACT;
TORT; NEGLIGENCE OF SMSC OR OTHERS; STRICT LIABILITY; BREACH OF WARRANTY; OR OTHERWISE; WHETHER OR NOT ANY REMEDY OF BUYER IS HELD
TO HAVE FAILED OF ITS ESSENTIAL PURPOSE, AND WHETHER OR NOT SMSC HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
SMSC EVB-USB82514Q36-BAS Revision 1.1 (07-13-11)
USER MANUAL

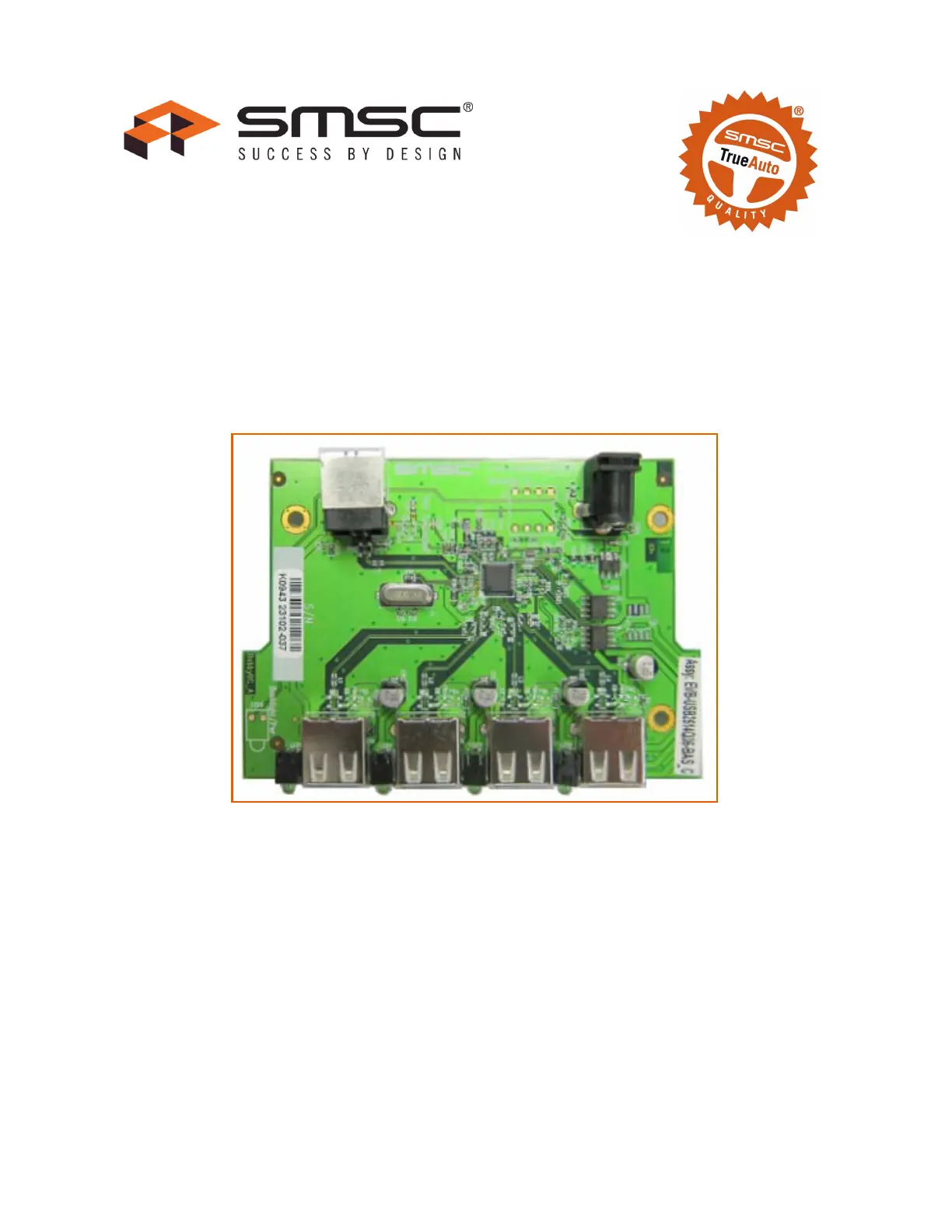

EVB-USB82514Q36-BAS 36-Pin QFN
Evaluation Board User Manual (Revision C)
EVB-USB82514Q36-BAS 36-Pin QFN Evaluation Board User Manual (Revision C)
Revision 1.1 (07-13-11) 2 SMSC EVB-USB82514Q36-BAS
USER MANUAL
1 Overview
The SMSC Automotive Grade USB 2.0 4-Port Hub is designed, fabricated, tested, characterized and
qualified for automotive applications. The USB82514 MultiTRAK™ is a low-power, OEM configurable,
full featured Hi-Speed USB 2.0 compliant hub contnroller IC with four down-stream ports for embedded
USB solutions. The EVB-USB82514Q36-Bas 36-Pin QFN Evaluation Board demonstrates a stand
alone application for the hub with all the features listed below and demonstrates the advanced power
saving options and configurable port assignments.
1.1 Features
Low pin count USB82514 36 - pin QFN package
Hi-Speed (480 Mbits/s), Full-Speed (12 Mbits/s), and Low-Speed (1.5 Mbits/s) compatible
Operation from a single voltage (+5.0 VDC, regulated) 'wall wart' external power supply
Low cost 4-layer design: two outer signal layers
- power inner layers
- ground inner layers
Optional pull-up resistors for disabling individual downstream ports
Self-powered operation
Multi-transaction translator enabled
Support of internal default hub configuration
Single onboard +3.3 VDC regulator
Single crystal clock sourc
Individual port over-current sensing
Individual port power control
Port over-current sensing (OCS)/port power control interface with LEDs for port power indication
Red LED indicator for active hub state (not suspend)
EMI suppression provided by ferrite beads, selection of capacitors, and internal power/ground
layers.
ESD protection up to 25 kV direct contact to USB signals provided with diode bridges and common
mode chokes.
1.2 General Description
The EVB-USB82514Q36-BAS is a demonstration and low-cost evaluation platform featuring the
USB82514 4-port, low-power Hi-Speed USB2.0 Hub with MultiTRAK technology. The platform is
designed to robustly demonstrate the unique features of this device using a low-cost PCB
implementation with individual port power control. TheEVB-USB82514Q36-BAS is designed for low
cost, power efficient implementation of a Hi-Speed USB Hub with minimal bill of materials. Schematics,
layout, and bill of materials are included minimizing the customers new product development time.
Revision C of the EVB-USB82514Q36-BAS has a four-layer printed circuit board to improve coupling
between power and ground to reduce EMI. Ferrite beads have been added on all connector ground
and power nets. Protective diode bridges and common mode chokes were added to all USB signals.
Figure 2.1 and Figure 2.2 show the top and bottom level silk screen and copper layers.
