Single and Double Wall Spotlight

Art.no 36-4939-1, -2, -3 Model Vidar

36-4940-1, -2, -3 Vidar

Please read the entire instruction manual before use and save

it for future reference. We reserve the right for any errors in text

or images and for making any necessary technical changes to

this document. If you should have any questions concerning

technical problems please contact our CustomerServices.

Safety

• All light fittings must be installed in accordance with current

safety regulations to prevent life-threatening accidents.

• Installation must only be carried out by a qualified electrician.

• Follow the instructions carefully and keep them for future

reference.

• Turn off the power and let the bulb cool before changing it.

Avoid holding the light bulb with your bare hands when

fitting it.

• Only use a light bulb with a wattage of max 35 W.

• The light fitting is designed for permanent wall installation.

• The minimum distance between the bulb and

itsilluminated surface is 50 cm.

• The light must be connected to an electrical earth.

Installation

WARNING: Always turn off the power before beginning

theinstallation.

7. Fit a light bulb (GU10, max 35 W) by

pushing the bulb in and twisting it

clockwise until it is locked into the socket.

Product description

• Protection class: IP44

• 230 V

36-4939

• Downlight

• Bulb: GU10, max 35 W (sold separately)

• Height: 10.5 cm. Diam: 7.5 cm

36-4940

• Bi-directional light, upwards and downwards

• 2 bulbs: GU10, max 35 W (sold separately)

• Height: 19.5 cm. Diam: 7.5 cm

WARNING: Always turn

off the power before

beginning the installation.

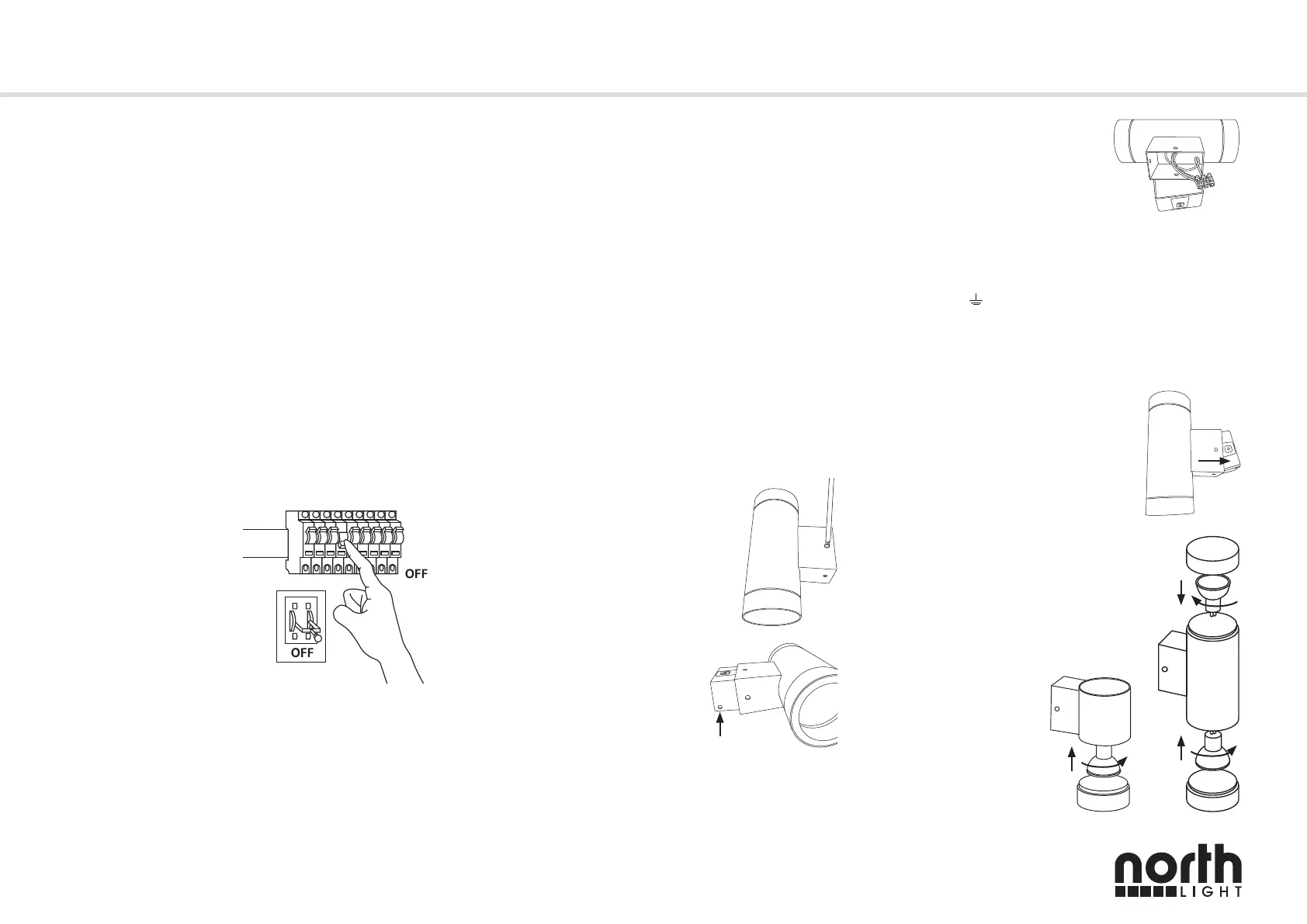

1. Undo the screws on the side

and remove the wall plate.

2. Thread the incoming cable

through the rubber grommet in

the wall plate and into thefitting.

Pull the terminal block off

thewall plate.

3. Screw the black wall plate onto

the wall (ventilation holes at

thebottom).

6. Screw the base of the light

back onto the wall plate

with theventilation holes at

thebottom.

4. Strip the insulation off the ends

of the wires and connect them

to the terminal block. Remember

that the yellow/green earth wire

needs to be a little longer than

the others.

-Connect the incoming neutral

wire to the terminal marked (N).

-Connect the incoming earth

wire to the Earth terminal

marked (

).

-Connect the incoming live wire

to the terminal marked (L).

5. Push the terminal block back

onto the wall plate.
