FOR YOUR SAFETY

WARNING: BE SURE THE ELECTRICITY TO THE WIRES YOU ARE

WORKING ON IS SHUT OFF; EITHER THE FUSE IS REMOVED OR

THE CIRCUIT BREAKER IS SHUT OFF.

GENERAL

You don’t need special tools to install this xture. Be sure to follow

the steps in the order given. Under no circumstances should a xture

be hung on house electrical wires, nor should a swag type xture be

installed on a ceiling which contains a radiant type heating system.

Read instructions carefully. If you are unclear as to how to proceed,

consult a qualied electrician.

NOTE: Proper wiring is essential for the safe operation of this xture.

FIXTURE ASSEMBLY

Carefully remove the xture from the carton and check that all parts

are included as shown in gure. Be careful not to misplace any of the

screws or parts, which are needed to install this xture.

INSTALLATION

IMPORTANT: Do not attach xture directly to outlet box.

STEP 1: Install mounting plate to junction box in wall using mounting

screws.

STEP 2: Secure the two screws to the mounting plate. You should

leave the proper length of the two screws beyond the surface of the

mounting plate to ensure enough thread is available to properly mount

the canopy with the mounting screws.

STEP 3: Pull the existing electrical wires out of the junction box and

make proper connections using wire nuts.

GROUNDING INSTRUCTIONS

STEP 1: Insert the green grounding screw into the hole with two

raised dimples on the mounting bar. Wrap the ground wire from the

xture (if supplied) around the green grounding screw, then connect it

to ground wire from the outlet box (if not xed on the outlet box) using

a wire connector (not supplied). If ground wire from the xture is not

supplied, wrap the ground wire (if not xed on the outlet box) from the

outlet box around the green grounding screw and tighten it.

NEVER CONNECT GROUND WIRE TO BLACK OR WHITE

POWER SUPPLY WIRES.

STEP 2: Take note of the color of the wire(s) on your xture. Identify

which group your xture wire(s) falls into and connect the wires

according to the directions below:

GROUP A:

Connect to Black House Wire

GROUP B:

Connect to White House Wire

BLACKWHITE

* PARALLEL WIRE (round & smooth)* PARALLEL WIRE (square & ridged)

WHITE OR GREY WITH TRACERWHITE OR GREY WITHOUT TRACER

BROWN, GOLD OR BLACK

WITHOUT TRACER

BROWN, GOLD OR BLACK

WITH TRACER

NOTE: When parallel wire (SPT-I & SPT-2) is used, the tracer wire is

square shaped or ridged and the less tracer wire is round in shape or

smooth (seen best when viewed from wire end).

STEP 3: Take your xture wire(s) from group A and place evenly

against the black wire from the outlet box. Do NOT twist wires together

before using wire connectors.

STEP 4: Fit a wire connector over the wires and screw the connector

clockwise until you feel rmness.

STEP 5: Try gently to pull the connector off the wires. If you can pull

the connector off, carefully re-do steps 3 and 4 as above, and check

again for a rm connection.

STEP 6: Connect the xture wire from group B to the white wire from

the outlet box in the same manner. Make sure no bare wires can be

seen outside wire connectors.

FINAL ASSEMBLY

STEP 1: Position canopy over mounting plate and align holes in

canopy with mounting screws. Leave thread protruding through

canopy surface and secure the two decorative nuts with a

at-head screwdriver.

CLEANING

To clean, wipe xture with a soft cloth. Clean glass with a mild soap.

Do not use abrasive materials such as scouring pads or powders,

steel wool or abrasive paper.

ORDERING PARTS

Keep this sheet for future reference, and in case you need to order

replacement parts. Be sure to use exact wording from illustration when

ordering parts.

Line art shown may not exactly match the xture enclosed. However, the installations

do apply to this xture.

La ilustración puede no concordar exactamente con la pieza enviada. Sin embargo,

las instalaciones sí aplican para esta pieza.

Les images peuvent ne pas correspondre exactement au luminaire de la boîte.

Par contre, les directives d’installation s’appliquent au luminaire.

INSTALLATION AND SAFETY INSTRUCTIONS

ITEM NO: 62-2620, 62-2621, 62-2622, 62-2630,

62-2631, 62-2632, 62-2640, 62-2641, 62-2642

© Copyright 2025 Satco Products, Inc. 01/25 v2.0

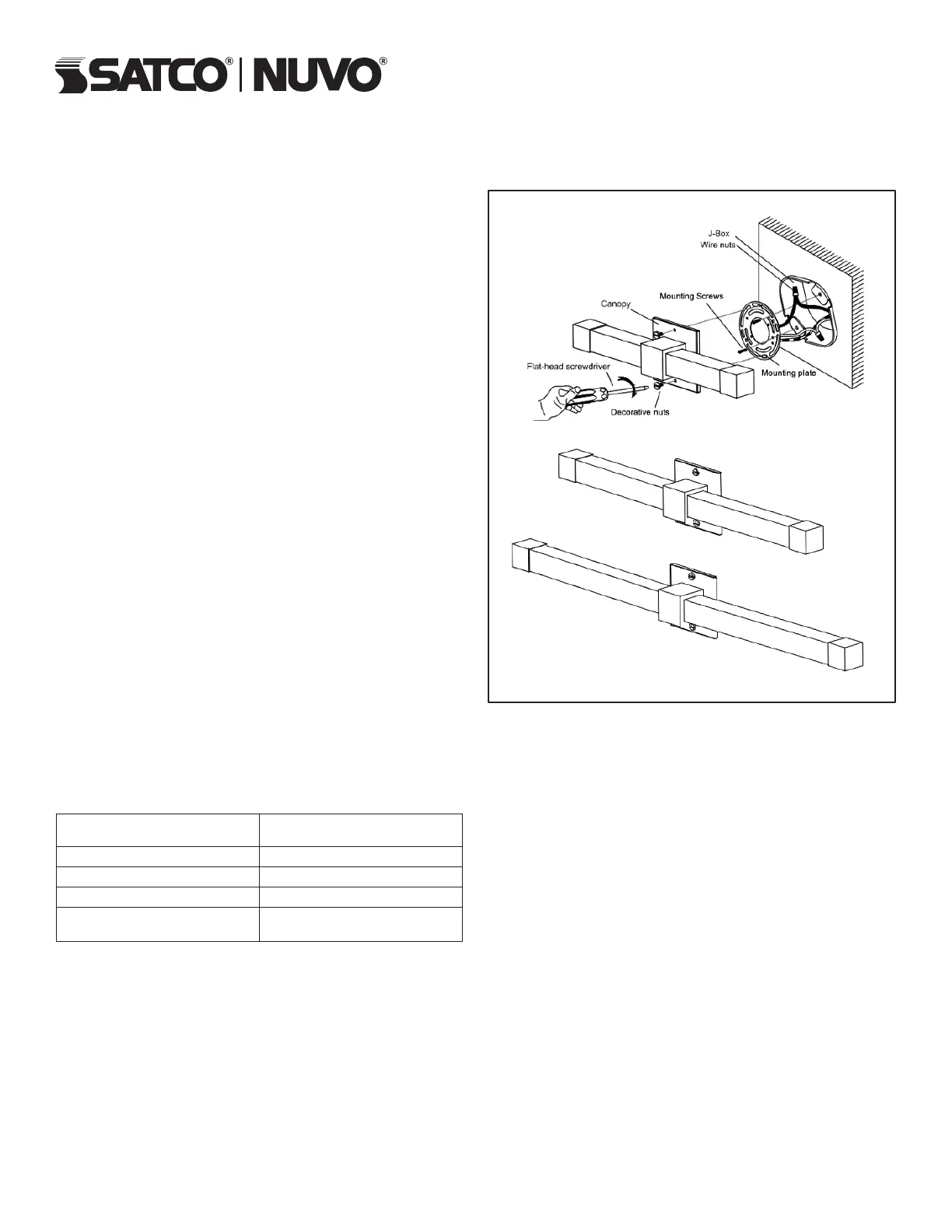

FIGURE
