Follow STEPS 1 and 2 above (see diagrams).

STEP 3: Unscrew the cover of the entry hole on

the lamp base and remove the cover.

STEP 4: According to the embedded terminal

box, punch the corresponding mounting hole on

the light mount.

STEP 5: Tear off the adhesive paper of the

waterproof pad and stick the waterproof pad to the

lamp base.

STEP 6: Put the input line and dimming line from

the embedded junction box through the lamp base

and then screw the lamp base to the embedded

junction box.

STEP 7: Install the upper half of the xture on

the lamp base, then use the threaded terminal

to connect L, N, ground wire, dim+ and dim–

separately. Next, plug the threaded terminals into

the embedded junction box.

STEP 8: Screw the cover back in place.

STEP 9: To complete installation, install the heat

sink assembly and tighten screws and xing knobs.

WARNING: Risk of Fire or Electric Shock

• To reduce the risk of re, electrical shock or injury to persons; read and follow all

warnings and installation instructions before installing.

• All installation should be performed by a qualied electrician.

• To avoid electric shock, ensure power is turned off before installation or inspection.

All wiring must be installed in accordance with Electrical Code and local electrical code.

• To prevent re, this xture is rated for use in 120-277V, 50-60Hz protected circuit and

105°C rated supply wire.

• To prevent product malfunction and/or electrical shock, this product must be

properly grounded.

• To avoid damage and/or product malfunction, do not modify the xture or

replace accessories without conrming with the supplier rst.

• To prevent wiring damage or abrasion, do not expose wiring to edges of sheet

metal or other sharp objects.

• Suitable for wet locations.

IMPORTANT:This product must be installed in accordance with the applicable installation code by a person familiar with the

construction and operation of the product and the hazards involved.

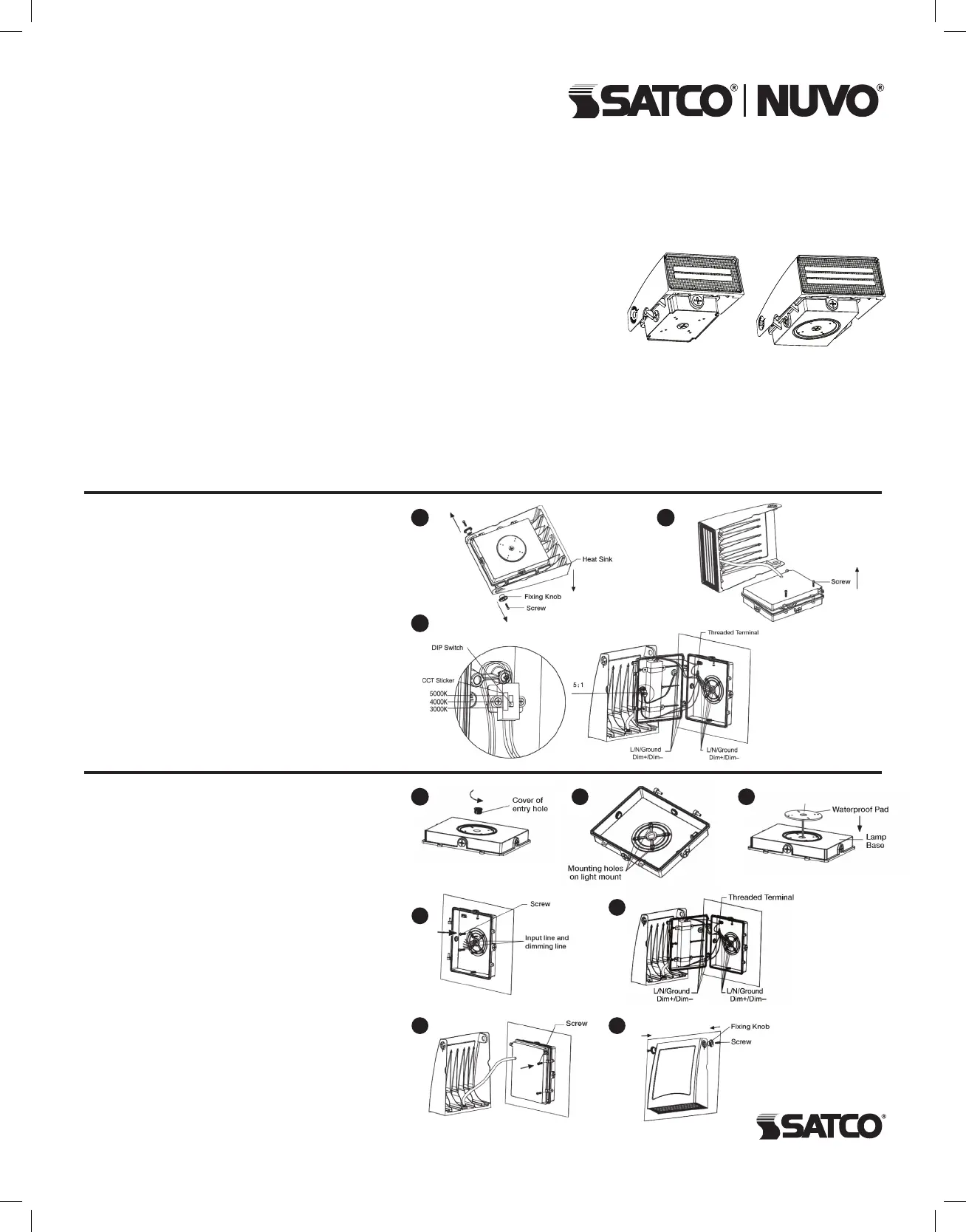

STEP 1: Use screwdriver to remove screws and xing

knobs on both sides, then take down the heat sink.

STEP 2: Remove screws with screwdriver, detach

the cover from bottom box.

STEP 3: Unscrew and open bottom box, set up

CCT through inside DIP Switch, default switch gear

is 4000K, dial downward for positioning 3000K, dial

upward for 5000K, dial to middle for 4000K. Users

can dial to positions for the CCT needed.

STEP 4: After selecting CCT, screw the cover back

in place.

STEP 5: To complete CCT adjustment, attach the

heat sink to bottom box, tighten screws and xing

knobs.

CCT SELECTABLE ADJUSTABLE

LED WALL PACK

Models: 65/677, 65/678, 65/679, 65/680

CCT INSTRUCTIONS

INSTALLATION

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing xture. Retain for future reference.

© Copyright 2020 Satco Products, Inc. 5/20

4

2

6 1/2" (165mm) W

x 3 7/8" (98mm) H

x 8" (205mm) D

8 1/2" (216mm) W

x 4 3/8" (112mm) H

x 11" (280mm) D

3

1

3

5

6

7

89

Satco Products, Inc.

Brentwood, NY 11717
