1

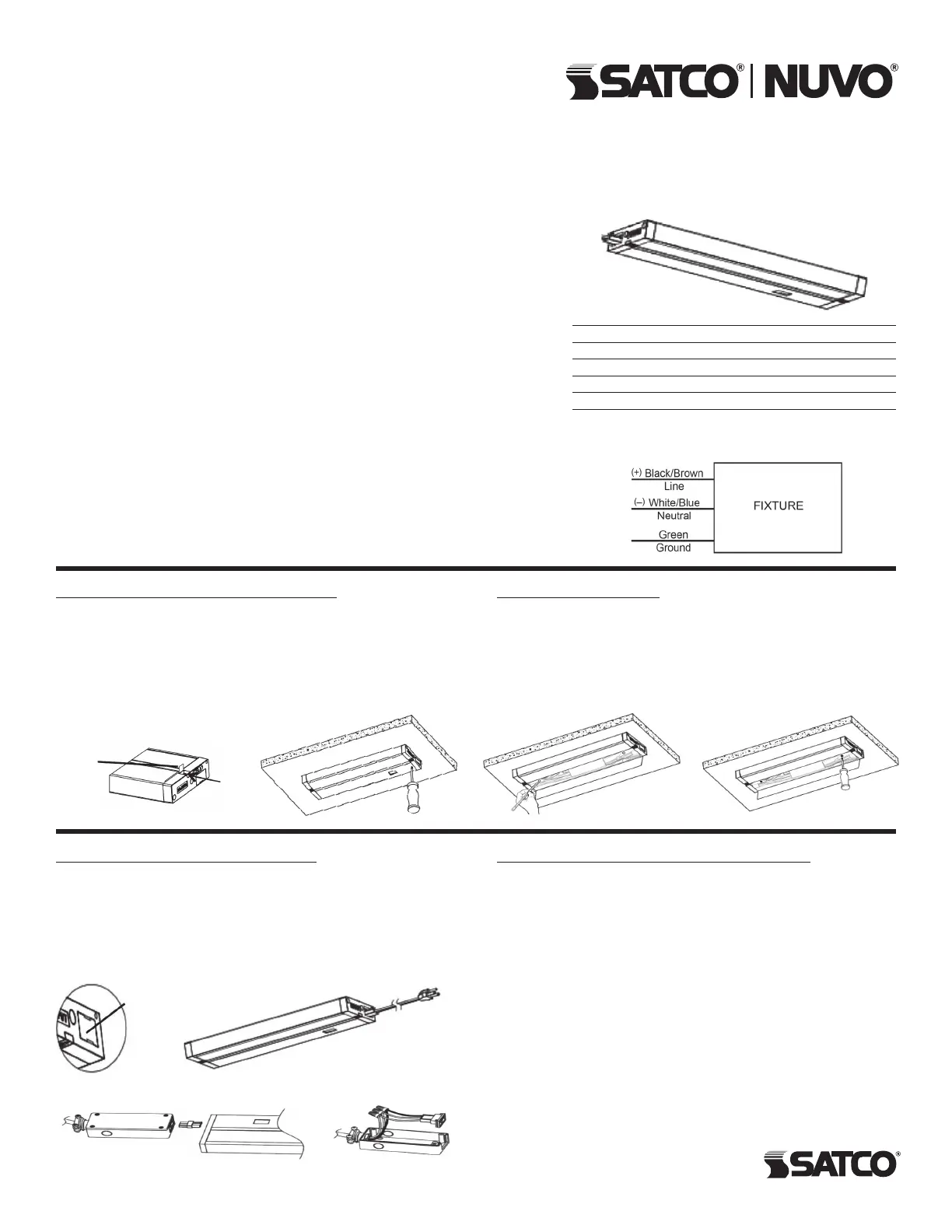

WIRING DIAGRAM

LED UNDER CABINET

FIXTURE

Models: 63-500, 63-501, 63-502, 63-503, 63-504, 63-505,

63-520, 63-521, 63-522, 63-523, 63-524, 63-525

INSTALLATION: Mounting – Direct

STEP 1: Open the two mounting screw covers located on the

front edge of the xture (A).

STEP 2: Place the xture in desired position and mount with

included screws (B).

STEP 3: Close the mounting screw cover.

Mounting – Keyhole

STEP 1: Place the xture in the desired location, open the front

panel using a at tool to pry it open, and mark the locations of the

keyholes through the wiring area (C).

STEP 2: Install (2) screws into the marked locations.

STEP 3: Mount xture through 2 keyholes on back of device.

Tighten screws if required (D).

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing xture. Retain for future reference.

Satco Products, Inc.

Brentwood, NY 11717© Copyright 2024 Satco Products, Inc. 7/24

WARNING: Risk of Fire or Electric Shock

• LED Under Cabinet Fixture installation requires knowledge of luminaries’

electrical systems. If not qualied, do not attempt installation. Contact

a qualied electrician.

• To reduce risk of re and over-heating, secure all connections.

• TURN OFF the electrical power before proceeding.

• The electrical rating of this product is 120V/60Hz.

• To prevent wiring damage or abrasion, do not expose wiring to edges

of sheet metal or other sharp objects.

• Do not make or alter any open holes in an enclosure of wiring or

electrical components during installation.

• Not rated for wet locations.

• This product must be installed in accordance with the owner’s manual,

current electrical codes and/or the current National Electric Code (NEC).

WARRANTY: This product is guaranteed for a 5-year warranty. Any

quality issue in normal use within the warranty period, will be repaired or

replaced according to the situation and under the condition specications

can be provided. Visit www.Satco.com for full warranty details and

dimmer compatibility information.

Model # (Color) Dimensions

63-500 (Wht), 63-520 (Dk Brz) 8"L x 3 1/2"W (203mm x 90mm)

63-501 (Wht), 63-521 (Dk Brz) 11"L x 3 1/2"W (280mm x 90mm)

63-502 (Wht), 63-522 (Dk Brz) 14"L x 3 1/2"W (355mm x 90mm)

63-503 (Wht), 63-523 (Dk Brz) 22"L x 3 1/2"W (559mm x 90mm)

63-504 (Wht), 63-524 (Dk Brz) 28"L x 3 1/2"W (711mm x 90mm)

63-505 (Wht), 63-525 (Dk Brz) 34"L x 3 1/2”W (863mm x 90mm)

(B)(A)

Mounting

Screw

Cover

Mounting

Screw

(C)(D)

WIRING: Option 1 – Power Cord

STEP 1: Mount the xture.

STEP 2: Remove the electrical port cover on the INPUT side.

STEP 3: Connect the power cable to the female port on the

xture.

STEP 4: Plug the power cable into a 120 Volt outlet.

STEP 5: Bundle the excess power cord with zip ties or twist ties.

Electrical Port

Cover

Option 2 – Hardwire to a Junction Box

(sold separately)

STEP 1: Disconnect power from the breaker or fuse box.

STEP 2: Remove the electrical port cover from the INPUT end.

STEP 3: Use the provided end-to-end connector or link cable

accessory to link the junction box to the INPUT side of the xture.

STEP 4: Connect the OUTPUT end of the end-to-end connector

to the junction box.

STEP 5: Open the junction box and remove the most convenient

of the three knockouts.

STEP 6: Mount the junction box and the xture to the cabinet.

STEP 7: Attach the 3/8" die-cast connector to the junction box

and pull wiring through it.

STEP 8: Connect wiring using above wiring diagram.

STEP 9: Close the junction box.

End-to-End Connector
