PASSIVE INFRARED DETECTOR

CX-702RS , CX-702S

No.59-0974-3 0708-30

BATTERY OPERATED (CE) Form C Relay

(CX-702RS Only)

FEATURES

Selectable ”WIDE ANGLE” and “LONG RANGE”

detection patterns.

Double Conductive Shielding of the pyroelectric

element - Extremely High Light.

Multifocus Optics Design (Patent listed)

Sealed Optics

Easy Installation

CX-702RS Only

Low Current Draw : 5µA (Normal. In Standby)

Battery Oparated

Form C Alarm Output and Tamper Switch

OPTION

CA-1W : Wall Mount Bracket ; Adjustable ±45°(Horizontally), 0-20°(Vertically downwards)

CA-2C : Ceiling Bracket ; Adjustable ±45°(Horizontally), 0-20°(Vertically downwards)

BA-70 : Backbox for wireless transmitter

CX-702S Only

Form C Alarm Output Relay

LED On/Off Switch

1.INSTALLATION HINTS

1

Avoid direct sunlight.

2

Avoid mounting detector where

movement of Fans or Air

Conditioning Fans can be detected.

3

Avoid vapor or high humidity

that can cause condensation.

4

Avoid blocking detection area

with curtain, screen, etc.

5

Do not install in the outdoors.

6

WARNING

Never repair or modify

product. It may cause

accident, fire hazard or

electric shock.

7

WARNING

When damage has occured to the

product, i.e. water logged, abnormal

things inside product, overheating or

smoking, strange smells etc.,

immediately stop using product and contact your supplier.

Otherwise, continued use in such condition may cause

electric shock or fire hazard.

8

CAUTION

Mount securely.

Fall of A product

may cause injury.

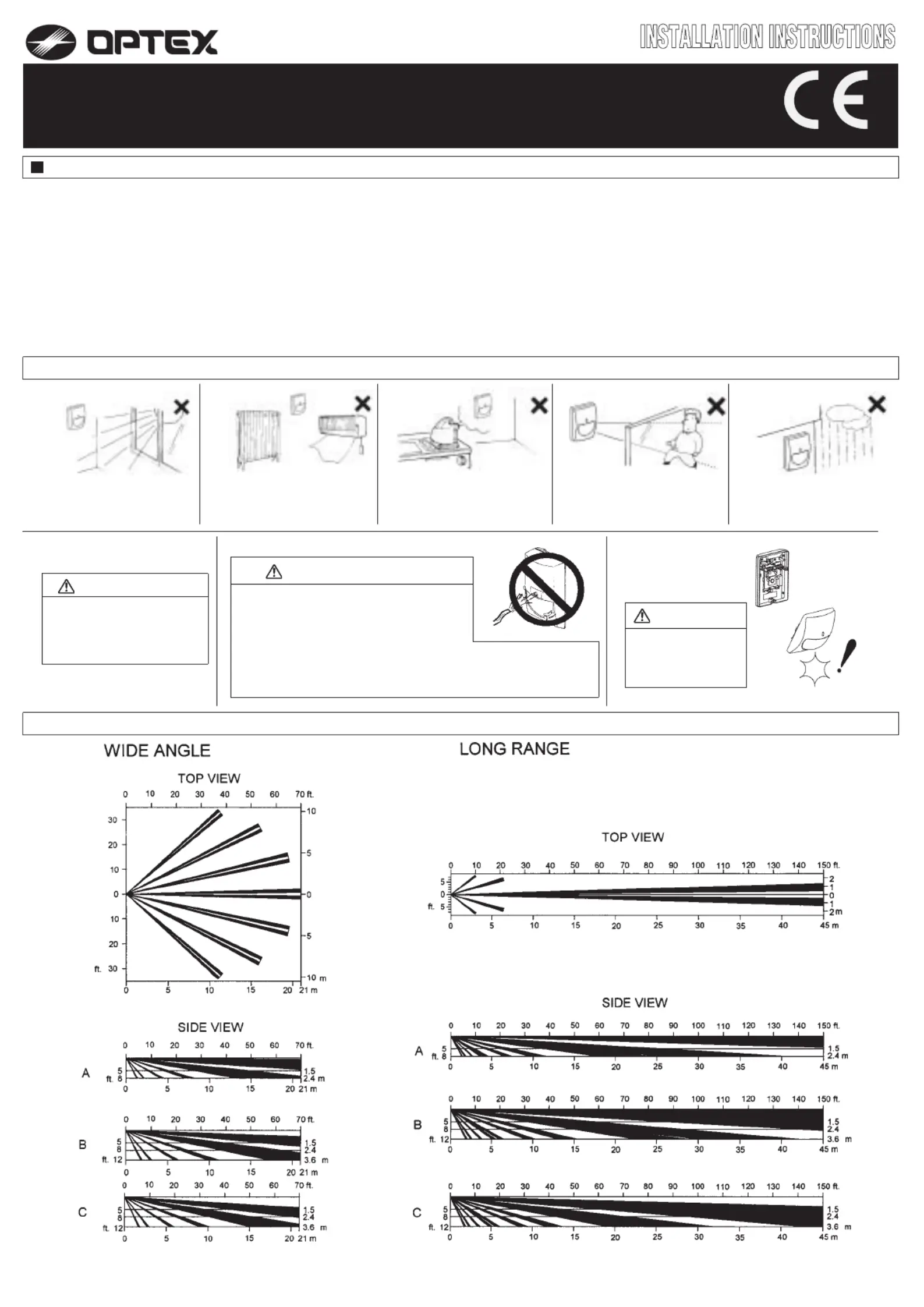

2.DETECTION AREA

●

●

●

●

●

●

●

●

●

**ATTENTION**

The specified detection area can be achieved by mounting the unit at a height of 2.4m. Mounting at a lower or higher height may reduce the area of coverage.

●
