Advanced Subwoofer Amplier Interface
for Select Toyota and Lexus Applications
APSUB-TY13
The APSUB-TY13 provides a 2-channel non-fading output for use with an aftermarket amplier and subwoofer. Using the
full range, xed level head unit output, in conjunction data bus messages, the APSUB-TY13 delivers a variable 5v RMS
pre-amp output with bass equalization and level control capabilities. The signal has a 350Hz / 24dB Linkwitz-Riley low
pass lter applied. A data controlled remote amplier turn on wire is also provided by the APSUB-TY13.
Introduction and Features
Important Notes
1. Only compatible in vehicles equipped with a data bus controlled premium sound system. To verify compatibility in Toyota,
look for a JBL logo on the radio. In Lexus, compatible applications will have a center channel or factory subwoofer.
2. Toyota Safety Connect / Lexus Enform (SOS) audio mute can be retained. See the page 3 for detailed instructions.
3. The factory radio's speed controlled volume, DSP, and surround sound mode are not supported by the APSUB outputs.
4.Thefactoryampliermustremainconnected,andinthevehicleaftertheAPSUBhasbeeninstalled.
5. The radio's minimum volume level is set to 0 dB by default. If you are happy with this level in your particular application,
additionaladjustmentisnotrequired.PleaserefertotheSetupandCongurationsectiononpage3formoredetails.
6. The remote output is rated at 2A of current. If more current is needed, an external relay must be used.
7. The subwoofer channels are non-fading outputs. The output level of subwoofer channels can be controlled using the
supplied level control knob.

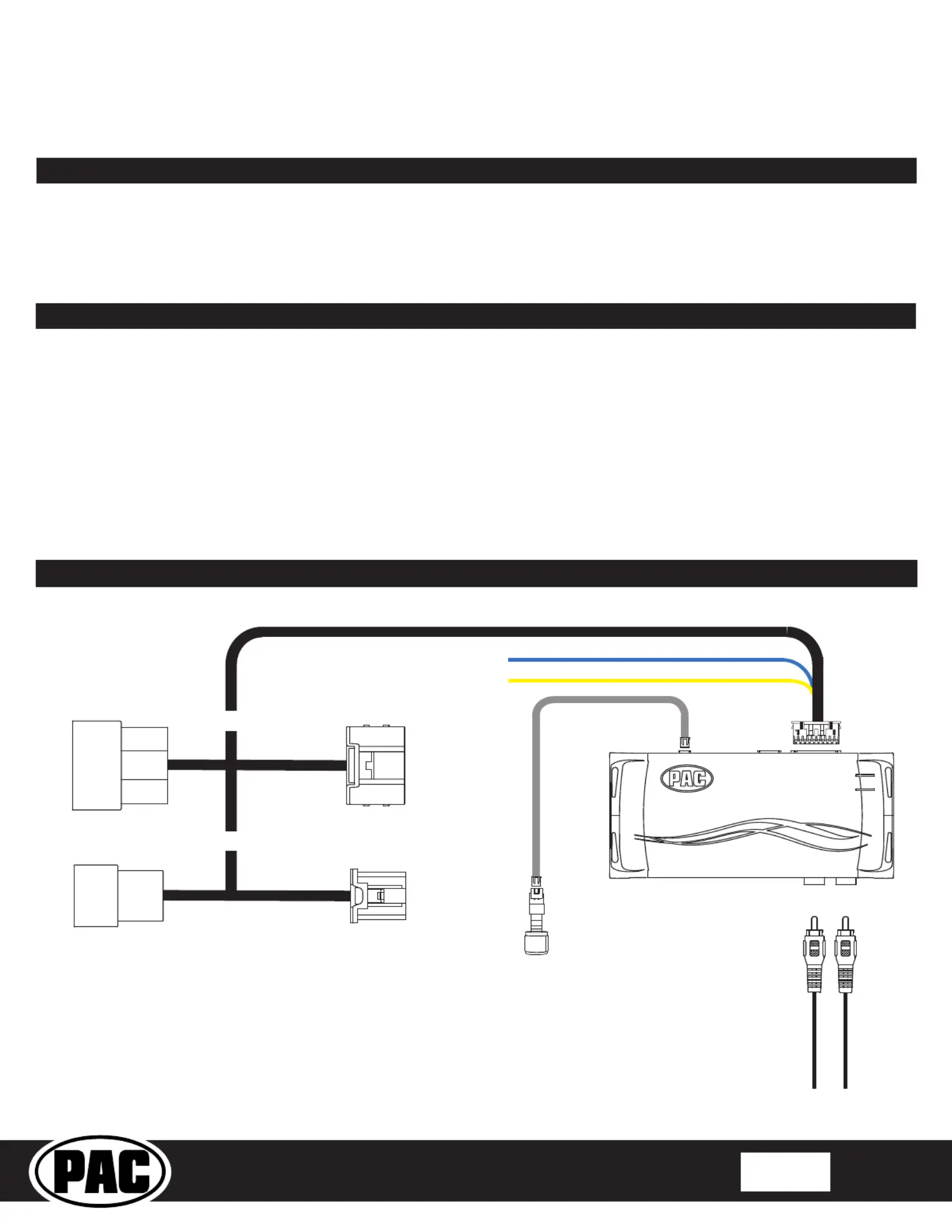

Wiring Connection Chart
To Aftermarket
Amplier
Subwoofer Outputs
Non-Fading
Level Control
Knob
Remote Turn On Output (2A Max)
SOS Mute ( - Trigger Input )
GRAY
GRAY
BLACK
BLACK
28-pin
10-pin
