Multi Camera Input Interface

for Select Ford Vehicles

MCI-FD22

© 2017 AAMP Global. All rights reserved. PAC is a Power Brand of AAMP Global.

PAC-audio.com

C

Page 1

Rev. 070617

The MCI-FD22 will allow the addition of front, and blind spot cameras, in vehicles equipped with the 4.2” screen and a

factory reverse camera. The MCI-FD22 has multiple user proles that can be set using the DIP switches or by PC app.

The MCI-FD22 also has on-demand activation of rear or front camera.

Introduction & Features

Important Notes

1. Only compatible in vehicles equipped with the 4.2” screen and a factory reverse camera.

2. The accessory output is rated at 10A of current. If more current is needed an external relay must be used.

3. All DIP switches must remain in the off (up) position in order to set up the MCI with the app.

DIP switchesBlind Spot Camera OperationFront Camera Operation

All Off (up)PC SetupPC Setup

1 onOn with Turn SignalOff

2 onOn with Turn SignalOn with Shift to Drive, then Off with MPH > 6 MPH or 30s

1,2 on

On with Turn Signal and MPH

> 0

Off

3 on

On with Turn Signal and MPH

> 0

On with Shift to Drive, then Off with MPH > 6 MPH or 30s

1,3 on

On with Turn Signal and MPH

> 20

Off

2,3 on

On with Turn Signal and MPH

> 20

On with Shift to Drive, then Off with MPH > 6 MPH or 30s

1,2,3 onDouble Tap Turn SignalOff

4 onDouble Tap Turn SignalOn with Shift to Drive, then Off with MPH > 6 MPH or 30s

2,3,4 onOn with Shift to Drive, then Off with MPH > 6 MPH or 30sOff

All On (down)OffOff

Set DIP switches to the ON position to activate the corresponding features.

Set DIP switches to the OFF position for any features that are not desired.

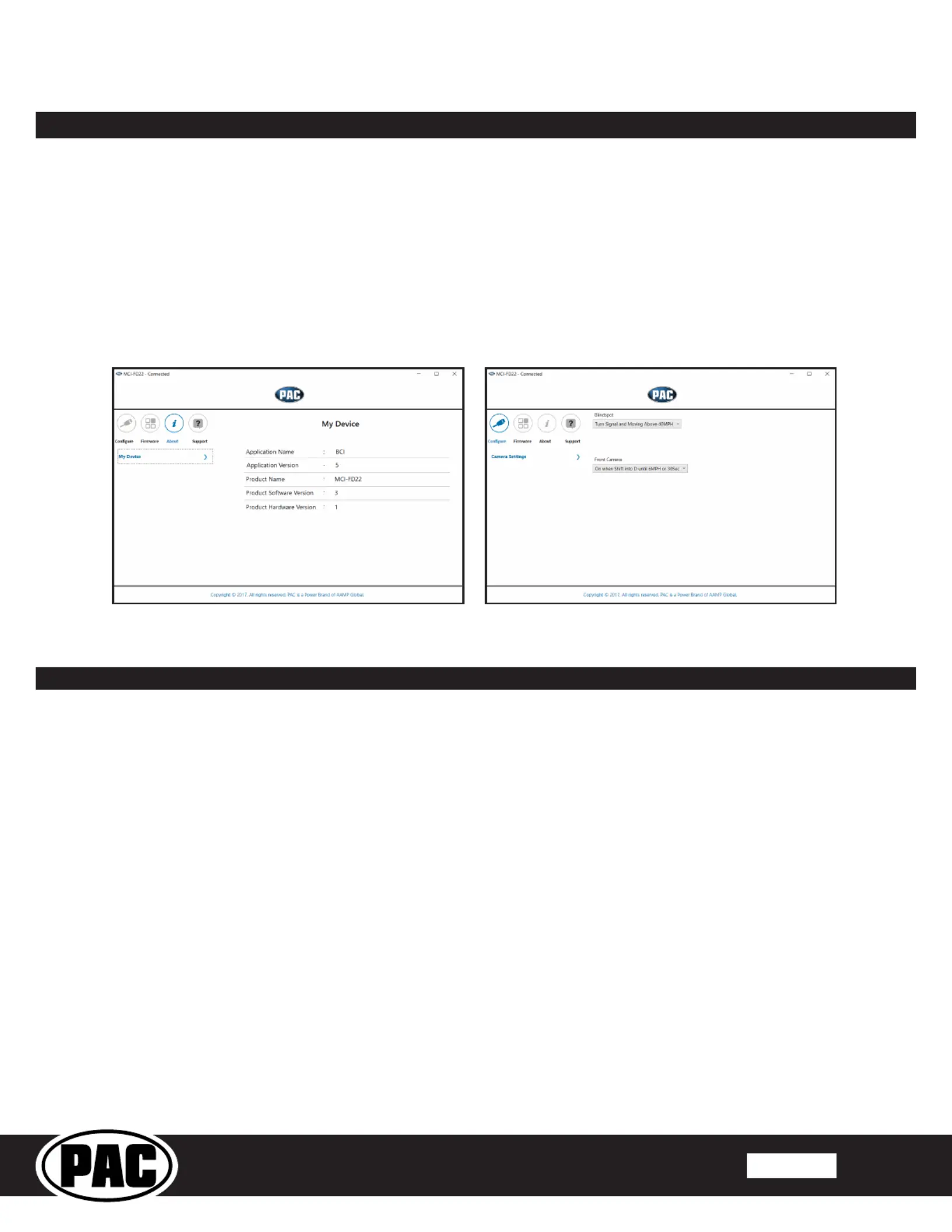

***All DIP switches must remain in the off (up) position in order to set up the MCI with the PC

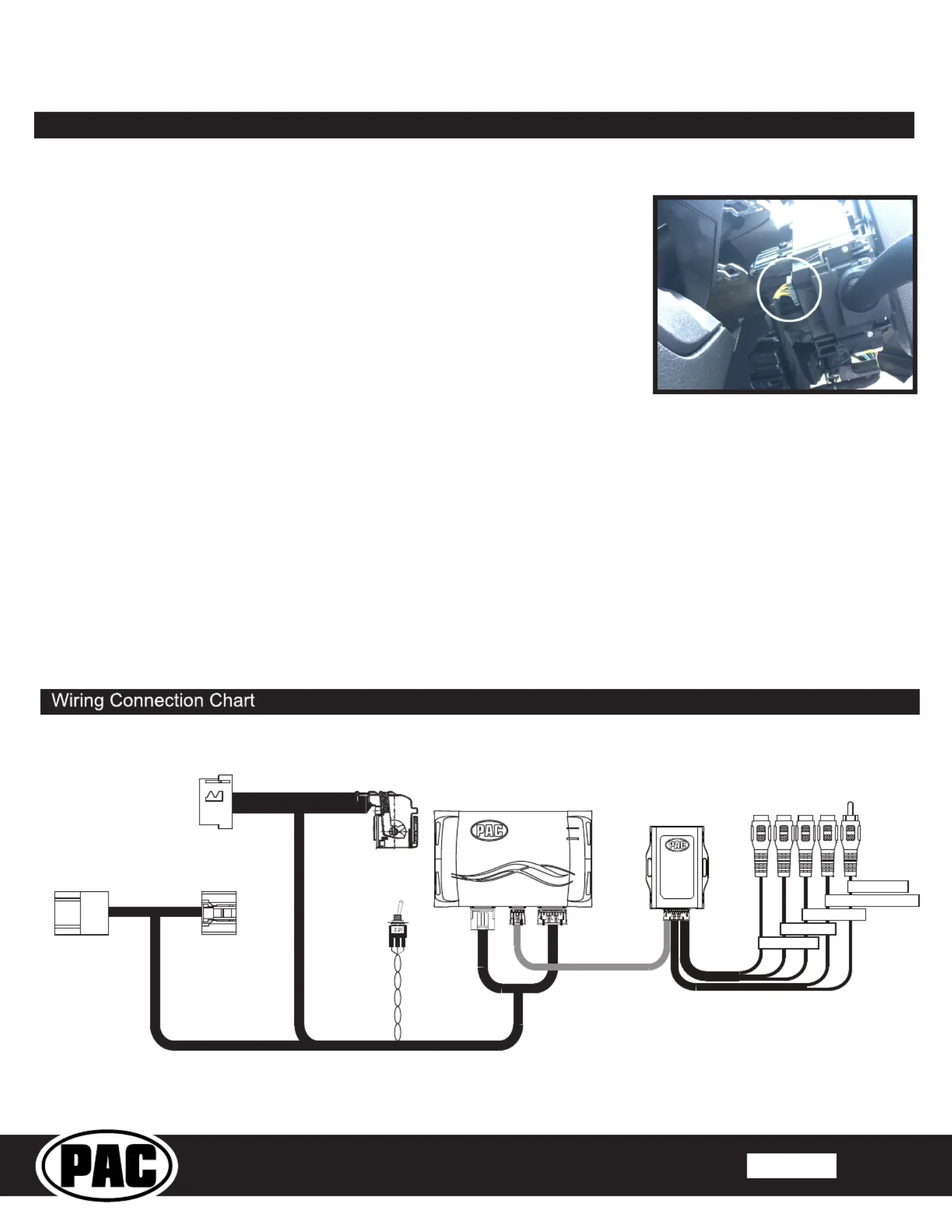

Installation

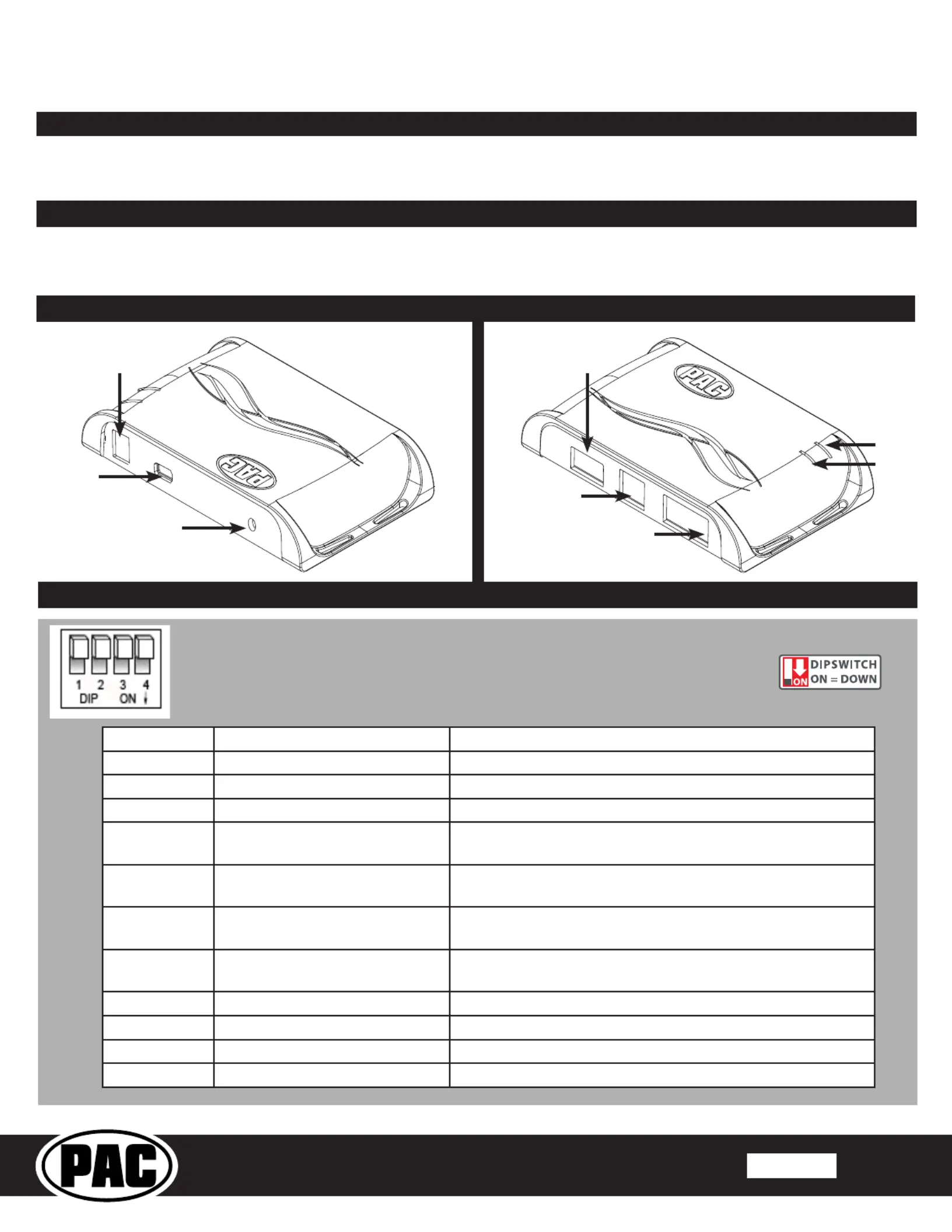

Module Layout

LED 1

LED 2

Interface

Connector 1

Expansion Port

(For VS41 Connection)

Interface Connector 2

Reset Button

USB Port

(For Firmware

Updates)

Feature Select

DIP switches
