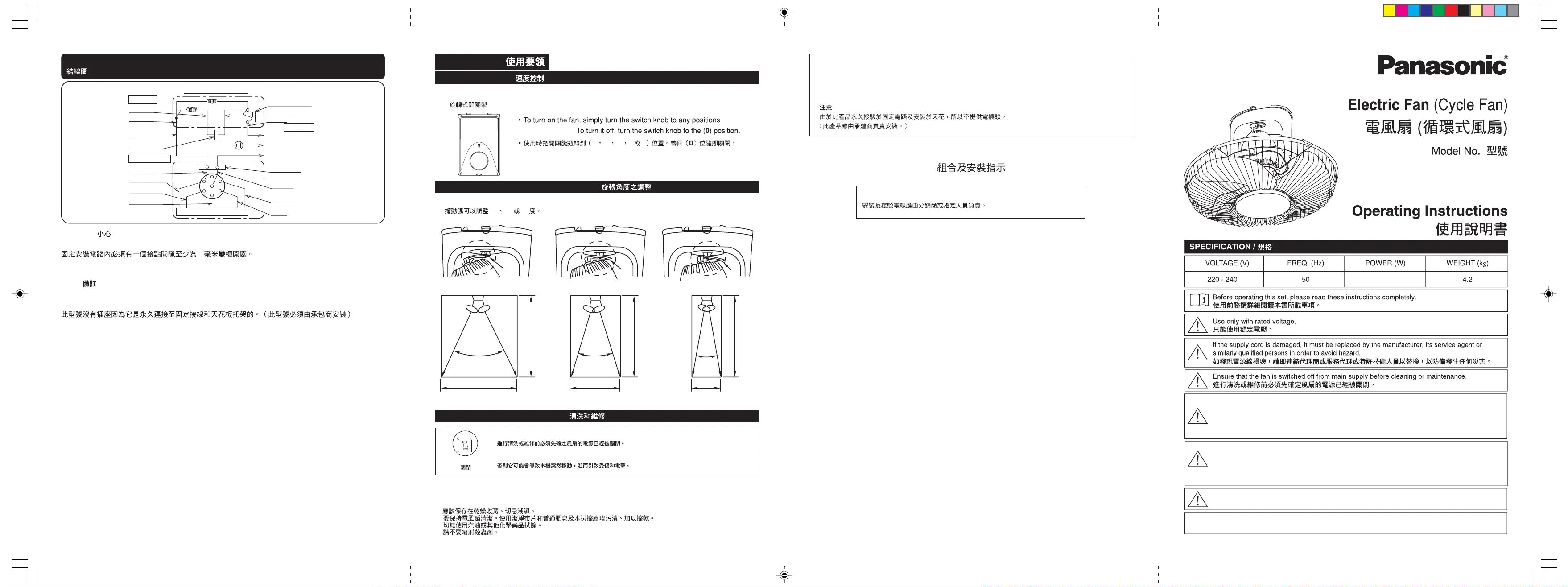

409QH8001ZM

WIRING DIAGRAM

Note

Thismodeliswithoutplugbecauseitispermanentlyconnectingtofixwiringandmountingonthe

ceiling.

(This model to be installed by contractor.)

ASSEMBLE AND INSTALLATION INSTRUCTION

Installation and wiring should be done by dealer or authorized person.

SPEED CONTROL /

Rotary switch control

ADJUSTMENT OF CIRCULATING ANGLE /

The oscillation angle can be adjusted to 15, 30 or 50 degrees.

NRPMRM

%

%

%

50°

30°

15°

Fig. A

Fig. B

Fig. C

2.5m

1.5m

0.75m

50°

15°

30°

3~3.5m

3~3.5m

3~3.5m

CLEANING AND MAINTENANCE /

CAUTION/

:

There must be a double pole switch with a minimum 3mm contact gap in the fixed installation circuit.

3

Note / :

This model is without plug because it is permanently connecting to fixed wiring and mounting on the

ceiling. (This model is to be installed by contractor)

1.Keep in a dry place, free of excessive humidity and water.

2.Keep the fan clean. Wipe away dirt with a clean soft cloth, ordinary soap and water, wipe dry.

Do not use solvents......etc.(gasoline or petroleum).

3.Do not spray with insecticides.

1.

2.

3.

Ensure that the fan is switched off from supply main before cleaning or maintenance.

Other wise it may cause the sets to move suddenly, injuries and electric shock.

Switched off

OPERATION /

This appliance is not intended for use by persons (including children) with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a person responsible for their safety.

To avoid the possibility of causing injury to users or damage properties, please follow all the

explanation written below. The manufacturer is not responsible for accidents and injuries caused

by defective or deficient installation.

本設備是不打算供與（包括兒童）身體，感官或心理能力欠佳人士使用，或缺乏經驗和知識，

除非他們是在負責他們安全的人員監督下或有關使用該設備的指示下使用。

為了避免可能造成傷害用戶或損壞財產， 請遵守以下所有的書面解釋。

製造商不會因有缺陷或不足的安裝所造成的意外及傷而亡負責。

Children should be supervised to ensure that they do not play with the appliance.

兒童應該受到監督以確保它們不玩該設備。

Thank you for purchasing this product.

感謝您選購此產品。

F-409QS

F-409QH

45 - 51.5

Panasonic Corporation

Web Site: http://panasonic.net

1 2 3 4 5

(1, 2, 3, 4, or 5).

0

3

1

4

2

5

WIRING DIAGRAM

MOTOR

CAPACITOR

SOURCE

REGULATOR

YELLOW

THERMAL FUSE

BROWN

TERMINAL

BROWN

YELLOW

BLUE

BLACK

BLUE (N)

BROWN (L)

GREEN/YELLOW

(FOR EARTH)

WHITE

WHITE

RED

BLACK

0

1

2c

3

4

5

BROWN (CORD)

BROWN

CAPACITOR
