HST Thick Wall Heat Shrink

INSTALLATION INSTRUCTIONSIN003

© Panduit Corp.2013

6R72

(HST2.7 and smaller)

(HST2.7 and smaller)

Black Only

(HST2.7 and smaller)

Sunlight Resistant

VW-1

WARNING:

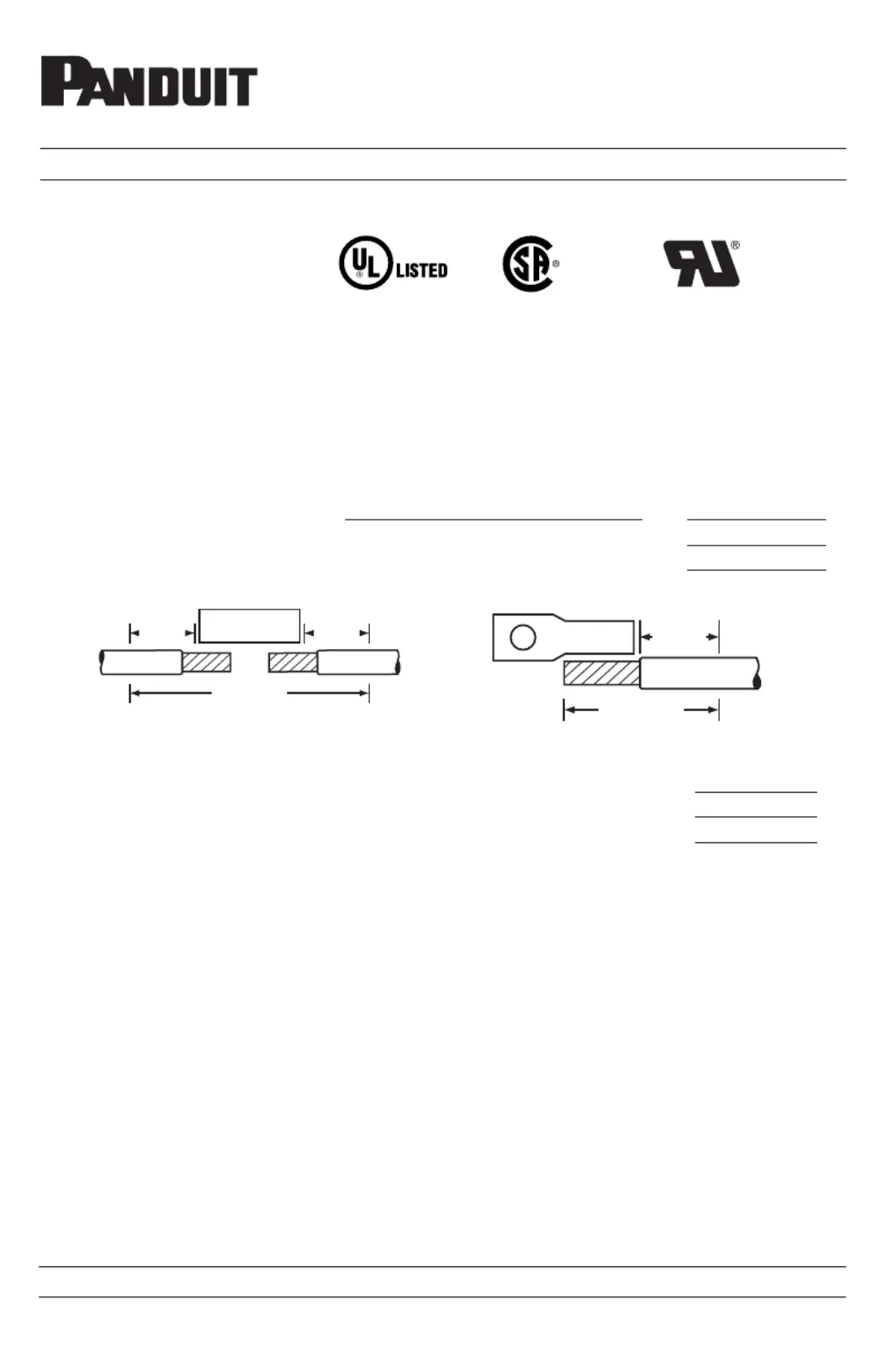

1.Calculate the minimum tube length.

A.IN-LINESPLICECONNECTOR

minimum overlap length (2 Inches)__________________________________x 2= ________________

splice length from manufacturer .........................................................................=________________

total minimum tube length (add) .........................................................................=________________

Splice

Overlap

Overlap

Tube Length

Lug

Overlap

Tube Length

2.Clean the cable which will be covered by the tube.Lightly sanding the surface is recommended.

3.Remove the cable insulation length for the connector according to the manufacturer's instructions.

4.Place the tube over the cable.

5.Install the connector according to the manufacturer's instructions.

6.Preheat the cable insulation where it will contact the tube.

7.Center the tube over the splice, or position it against the lug tongue.

8.Starting in the centerthe tube using a broad soft flame and working your way out to the ends, shrink

which will cause the product to recover.Do not scorch the tube.

A.IN-LINE SPLICECONNECTOR

Shrink from the center of the

tube tard the ends.ow

B.LUG CONNECTOR

Shrink from the lug end tard the opposite end.ow

The shrink is complete when adhesive oozes from between the tube and the cable and/or the lug.

Page 1 of 2

B.LUGCONNECTOR

minimum overlap length (2 inches) .....................................................................=______________

conductor strip length from manufacturer ...........................................................=______________

total minimum tube length (add) .........................................................................=______________

For Technical Support:www.panduit.com/resources/install_maintain.asp

4

2

"2"2"2

244528

torch or hot air gun.Minimum recommended shrink temperature is 248° F (120° C). Use higher

temperatures to recover faster. Continually move the source around the diameter of the tube,heat

Follow installation instructions carefully to avoid charring or burning. Use adequate ventilation.

Consult Material Safety Data Sheet for further information.
