Seite 1/32

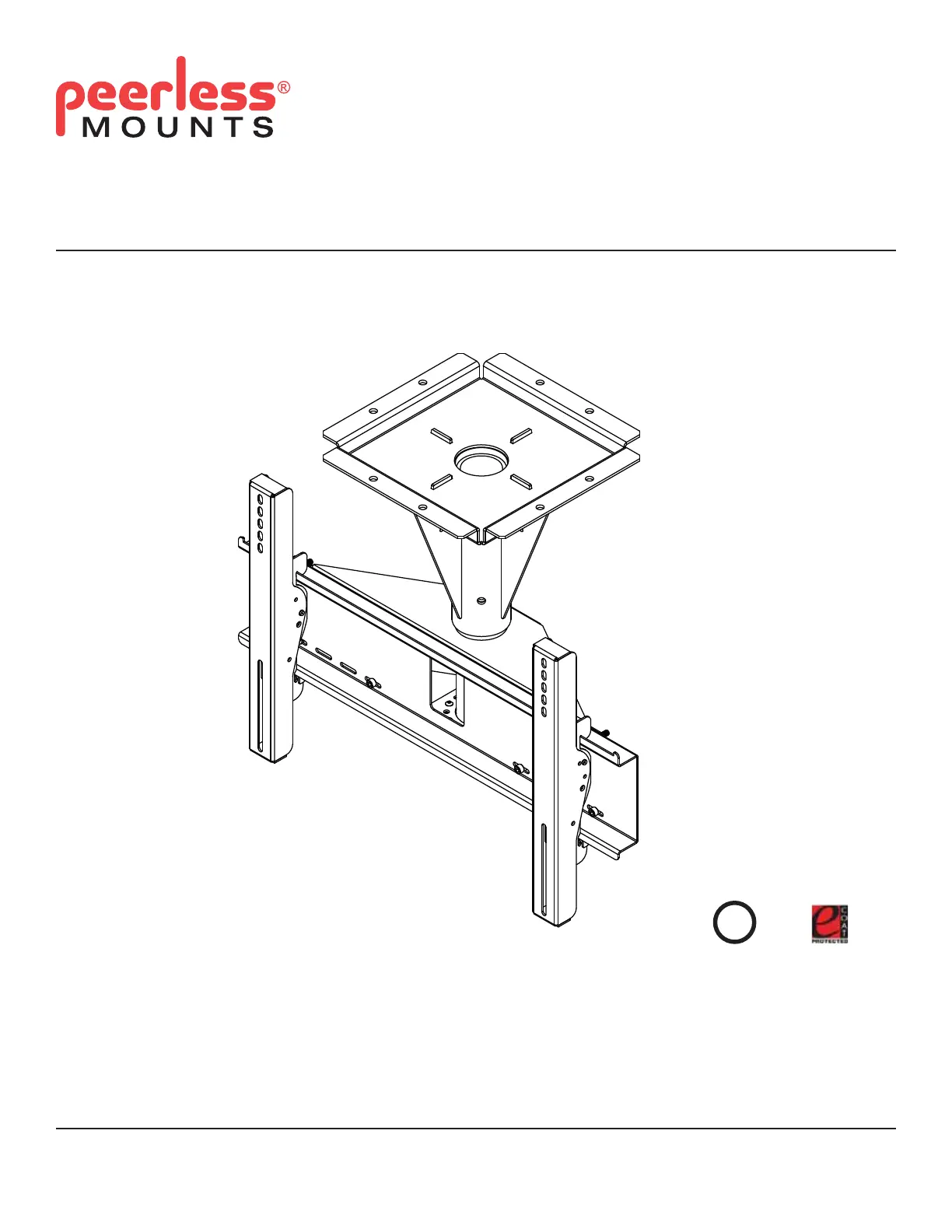

Installation and Assembly:

Wind Rated Concrete Ceiling Tilt Mount for 32" - 65" Outdoor

Flat Panel Displays

Models: ECMU-01-C, ECMU-01-C-S, ECMU-02-C, ECMU-02-C-S

ECMU-03-C, ECMU-03-C-S, ECMU-04-C, ECMU-04-C-S

ISSUED: 06-22-10 SHEET #: 061-9054-6 01-15-11

Max UL Load Capacity: 200 lb (90.7 kg)

Max Wind Rating: 90 mph, elevation 200 ft, Category D

USC

2 of 32

ISSUED: 06-22-10 SHEET #: 061-9054-6 01-15-11

NOTE: Read entire instruction sheet before you start installation and assembly.

Tools Needed for Assembly

• phillips screwdriver, 3/16" allen wrench

• drill

• 3/8" (10 mm) drill bit

• level

• Do not begin to install your Peerless product until you have read and understood the instructions and warnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US

customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact

your local distributor.

• This product should only be installed by someone of good mechanical aptitude, has experience with basic building

construction, and fully understands these instructions.

• Due to outdoor environmental conditions such as strong wind gusts, heavy snow, hail, rain, etc. The environmental

enclosure, together with its mount, extension tube and hardware, must be inspected at least once a year, and

immediately following any time winds exceed 90 mph. A qualiﬁ ed installer or inspector must check for signs of rust,

loose fasteners, bent metal, etc. If evidence of excessive wear, deterioration or any unsafe condition is observed,

this product must be taken out of service immediately. Direct all inquiries to customer care if you have any

questions.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached

hardware and components.

• Never exceed the Maximum UL Load Capacity. See page one.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tighten screws ﬁ rmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding

power.

• This product was designed for use with other outdoor products only.

• This product was designed to be installed on the following wall construction only;

WALL CONSTRUCTION HARDWARE REQUIRED

• Solid Concrete Included

• Other or unsure? Contact Qualiﬁ ed Professional

WARNING

Table of Contents

Parts List.................................................................................................................................................................................3

Installation to Solid Concrete Surface ....................................................................................................................................4

Installing Tilt Brackets .............................................................................................................................................................6

Mounting and Removing Flat Panel Screen ...........................................................................................................................7

Produktspezifikationen

Marke:	Peerless-AV
Kategorie:	Flachbildschirmunterstützung
Modell:	ECMU-02-C
Produktfarbe:	Schwarz
Befestigungstyp:	Zimmerdecke
Höchstgewichtskapazität:	91 kg
Paketgewicht:	29900 g
Neigungswinkelbereich:	5 - 15 °
Maximale Bildschirmgröße:	65 "
Drehungswinkel:	360 °
Anzahl der Display unterstützt:	1
Minimum Bildschirmgröße:	32 "
Maximaler Deckenabstand:	686 mm
Befestigungslochabmessungen:	720 x 449 mm
