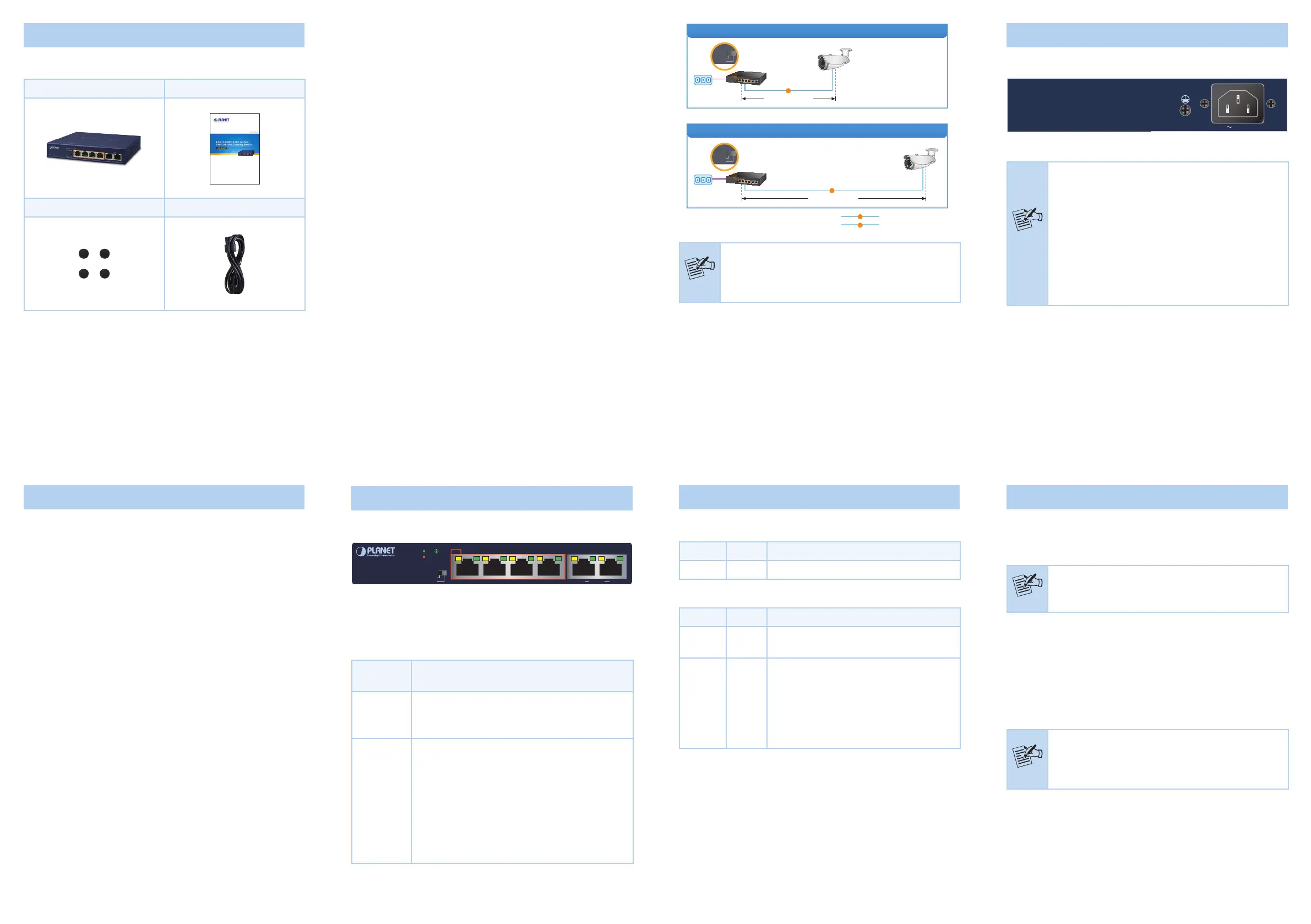

1. Package Contents

Check the following contents of your package:

FSD-604HP User’s Manual

Foot Pad Power Cord

If any of these are missing or damaged, please contact your

dealer immediately.

 Switching

 Hardware-based 10/100Mbps auto-negotiation and auto

MDI/MDI-X

 Flow control for full duplex operation and back pressure

for half duplex operation

 1536bytes packet size

 Integrates address look-up engine, supporting 2K absolute

MAC addresses

 Automatic address learning and address aging

 Solid DIP switch to isolate ports to prevent broadcast

storm and defend DHCP spoong

 Hardware

 Desktop palm size

 LED indicators for PoE ready/activity and LINK/ACT

 Supports Contact Discharge of ±4KV DC and Air Discharge

of ±6KV DC for Ethernet ESD protection

 Supports ±4KV Surge Immunity

 Internal AC power supply

 Fanless design

5. Switch Rear Panel

Figure 5-1 shows the rear panel of the FSD-604HP.

100-240V , 50/60Hz, 2A max.

Figure 5-1: FSD-604HP Rear Panel

Power

Note

1. The device is a power-required device, meaning

it will not work till it is powered. If your

networks should be active all the time, please

consider using UPS (Uninterrupted Power

Supply) for your device. It will prevent you from

network data loss or network downtime.

2. In some areas, installing a surge suppression

device may also help to protect your FSD-604HP

from being damaged by unregulated surge or

current to the FSD-604HP.

Extend PoE Mode

Standard PoE Mode

Power

PoE IP Camera

PoE

10BASE- T UTP with PoE

PoE

100BASE- TX UTP with PoE

PoE

100 meters (328 feet)

FSD-604HP

Power

PoE

250 meters (820 feet)

PoE IP Camera

Standard

Extend

Standard

Extend

Note

After changing the mode, you need to manually

restart the FSD-604HP to make the corresponding

configuration take effect.

2. Product Features

 RJ45 Interfaces

 4 IEEE 802.3af/at 10/100TX Ethernet PoE injection ports

(ports 1 to 4)

 Two 10/100TX Ethernet uplink ports (ports 5 to 6)

 Power over Ethernet

 Complies with IEEE 802.3af/at Power over Ethernet end-

span PSE

 Up to 4 IEEE 802.3af/2 IEEE 802.3at devices powered

 Supports PoE power up to 30 watts for each PoE port

 60-watt PoE budget

 Hardware-based DIP switch for “Standard” and “Extend”

mode selection; the “Extend” mode features 30-watt PoE

transmit distance of 250m at speed of 10Mbps and VLAN

isolation

 Auto detects powered device (PD)

 Circuit protection prevents power interference between

ports

 Remote power feeding up to 100m in standard mode

3. Switch Front Panel

Figure 3-1 shows the front panel of the FSD-604HP.

PoE

1 2 3 4

5 Uplink 6

ACTLNK

PoE-in-Use

FSD-604HP

PWR

Standard

Extend

Figure 3-1: FSD-604HP Front Panel

The front panel of the FSD-604HP provides one DIP switch

for “Standard” and “Extend” mode selections. The detailed

descriptions are shown in the following table.

DIP Switch

Mode

Function

Standard

(default)

This mode makes the FSD-604HP operate

as a general switch and all ports operate at

10/100Mbps auto-negotiation.

Extend

This mode makes the FSD-604HP operate as

a VLAN isolation switch and port 1 to port

4 will isolate respectively. Port 1 to port 4

can communicate with uplink ports 5 and 6.

This mode also makes the FSD-604HP

operate at auto–negotiation 10Mbps speed

duplex mode only, but the delivery distance

of PoE power and network data can reach

250m.

4. LED Indicators

System

LED Color Function

PWR Amber Lights to indicate the Switch has power.

Per 10/100Mbps Port

LED Color Function

PoE Amber

Lights to indicate the port is providing

DC in-line power to remote PoE PD.

LNK/ACT Green

Lights to indicate the link through

that port is successfully established at

10/100Mbps.

Blinks to indicate that the Switch is

actively sending or receiving data over

that port.

6. Installing the Switch

This part describes how to install your FSD-604HP and make

connections to it. Please read the following sections and follow

the procedures as presented.

Note

This FSD-604HP does not need software

configuration.

Desktop Installation

To install the FSD-604HP on desktop, simply follow the

following steps:

Step 1: Place the FSD-604HP on desktop near an electrical

outlet.

Step 2: Keep enough ventilation space between the

FSD-604HP and the surrounding objects.

Note

When choosing a location, please keep in mind the

environmental restrictions discussed in Chapter 7 --

Product Specifications.

- 9 -

- 10 -

- 11 -

- 12 - - 13 - - 14 -

Step 3: Connect your FSD-604HP to network devices.

A. Connect one end of a standard network cable to

Uplink Ports 5 and 6 of the FSD-604HP.

B. Connect the other end of the cable to the network

devices such as routers, Ethernet switches or NVRs

(network video recorders).

Step 4: Connect your FSD-604HP to PoE PDs.

A. Connect one end of a standard network cable to

one of the four 10/100Mbps RJ45 PoE+ ports of

the FSD-604HP.

B. Connect the other end of the cable to the 802.3af/

at PD.

Office Building Office Area

Warehouse

Control Room

Office Building

FSD-604HP

Power Line (DC)

100BASE-TX UTP

PoE

100BASE-TX UTP with PoE

IEEE 802.3af PoE

VoIP Phone

IEEE 802.3at

PoE IP Camera

Fixed IP Dome

IEEE 802.3af PoE Splitter

IEEE 802.3af

PoE IP Camera

PoE Extender

PoE

Wall-mount Installation

Step 1: Find a suitable wall location to mount the FSD-604HP.

Step 2: Refer to the picture below to tighten the two screws

on the wall.

122mm

Step 3: Hang the FSD-604HP on the screws from the wall.

Step 4: Repeat step 5 of Desktop Installation for power

supply to the FSD-604HP.

Note

Before mounting the device to the wall, please

check the location of the electrical outlet and the

length of the Ethernet cable.

Note

Length of cable

If the “DIP Switch Mode” is set to “Standard”,

the distance (UTP/STP cable length) between the

FSD-604HP and PC/PD should not exceed 100

meters.

If the “DIP Switch Mode” is set to “Extend”,

the distance between the FSD-604HP and PC/PD

should not exceed 250 meters.

Note

Make sure the wiring is correct

Category 3/4/5 cable can be used in 10 Mbps

operation. To reliably operate your network at

100Mbps, you must use an unshielded twisted-pair

(UTP) Category 5/5e cable, or better data grade

cabling. While a Category 3 or 4 cable may initially

seem to work, it will soon cause data loss.

Step 5: Supply power to the FSD-604HP.

A. Connect one end of the power cable to the Switch.

B. Connect the plug of the power cable to a standard

wall outlet.

When the Switch receives power, the power LED should remain

solid Amber.

7.ProductSpecications

Model

FSD-604HP

4-Port 10/100Mbps 802.3at PoE + 2-Port

10/100Mbps Desktop Switch

Hardware Specications

Uplink Port

2-Port RJ45 for 10/100BASE-TX, auto MDI/

MDIX

PoE Inject Port

4-Port with 802.3af/at PoE injector function

(Port 1 to port 4)

LED Display

System: Power (Amber)

Per PoE port: PoE (Amber, port 1 to port 4)

LNK/ACT (Green, port 1 to port 6)

DIP Switch

Distance in Standard mode is 100M

Distance in Extend mode is 250M

Based on the cable category

Switch Architecture Store and Forward switch architecture

MAC Address Table

2K MAC address table with auto learning

function

ESD Protection 6KV

Switch Fabric 1.2Gbps

Switch Throughput 0.89Mpps @64bytes

Maximum Packet Size 1536bytes

Flow Control

Back pressure for half duplex. IEEE 802.3x

pause frame for full duplex

Power Requirements AC 100~240V, 2A max.

Power Consumption Max. 63 watts, 214 BTU

Dimensions (W

H) 168 x 93 x 32mm

Weight 499g

Power over Ethernet

PoE Standard

IEEE 802.3af Power over Ethernet/PSE

IEEE 802.3at Power over Ethernet Plus/PSE

PoE Power Supply Type End-span

Power Pin Assignment 1/2 (+), 3/6 (-)

PoE Power Output

Per Port 54V DC, 300mA. max. 15.4 watts

(IEEE 802.3af)

Per Port 54V DC, 600mA. max. 30 watts

(IEEE 802.3at)

PoE Power Budget 60 watts

Number of PDs

watts)

Number of PDs

(15.4 watts)

Number of PDs

(30 watts)

Standard Conformance

EMI Safety CE, FCC

Standard Compliance

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3af

IEEE 802.3at

Ethernet

Fast Ethernet

Flow Control

Power over Ethernet

Power over Ethernet Plus

Environment

Operating Environment 0 ~ 50 degrees C

Storage Environment -10 ~ 70 degrees C

Operating Humidity 5 ~ 95%, relative humidity, non-condensing

Storage Humidity 5 ~ 95%, relative humidity, non-condensing

8. Customer Support

Thank you for purchasing PLANET products. You can browse

our online FAQ resource on PLANET Website rst to check if it

could solve your issue. If you need more support information,

please contact PLANET support team.

PLANET online FAQs:

https://planet.com.tw/en/support/faq

Support team mail address:

support@planet.com.tw

Contents are subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp.

All other trademarks belong to their respective owners.
