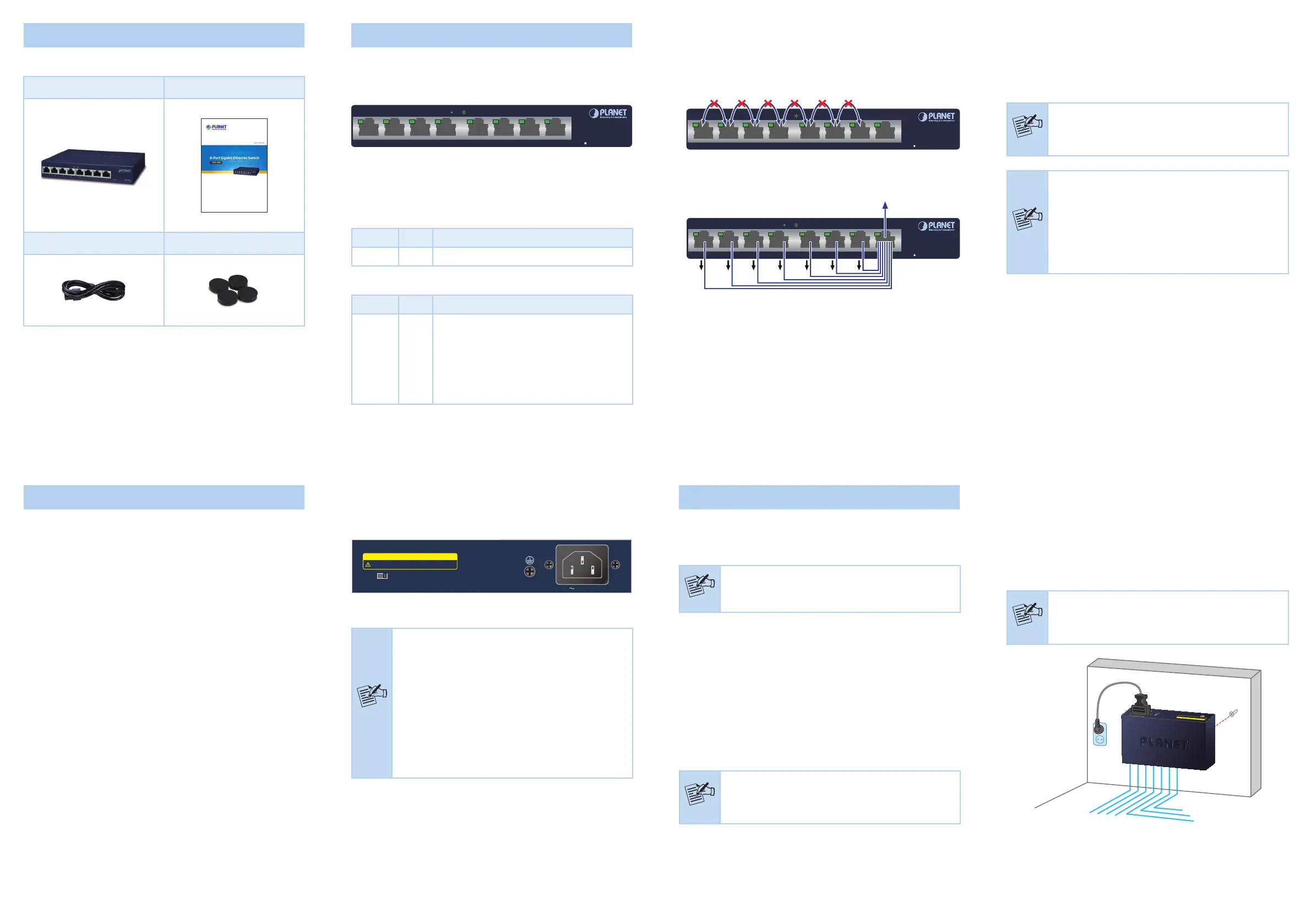

1. Package Contents

Check the following contents of your package:

GSD-805 User’s Manual

AC Power Cord Rubber Feet x 4

If any of these are missing or damaged, please contact your

dealer immediately; if possible, retain the carton including the

original packing material, and use them again to repack the

product in case there is a need to return it to us for repair.

3. Hardware Introduction

3.1 Switch Front Panel

Figure 3-1 shows the front panel of the GSD-805.

1 2 3 4 5 6 7 8

ACTLNK

GSD-805

PWR

Figure 3-1: GSD-805 Front Panel

3.2 LED Indicators

System

LED Color Function

PWR Green Lights to indicates the Switch has power.

Per 10/100/1000Mbps Port

LED Color Function

LNK/ACT Green

Light to indicate the link through that

port is successfully established at

10/100/1000Mbps.

Blinks to indicate that the Switch is

actively sending or receiving data

over that port.

Step 4: Connect your GSD-805 to network devices.

A. Connect one end of a standard network cable to

Port 1 or Port 8 on the front of the Gigabit Switch.

B. Connect the other end of the cable to a network

video recorder, workstation or router.

Note

Cable Distance for Switch

The UTP/STP cable distance between the GSD-805

and PC/PD devices should not exceed 100 meters.

Note

Make sure the wiring is correct

Category 3/4/5 cable can be used for 10/100Mbps

operation. To reliably operate your network at

1000Mbps, you must use an unshielded twisted-

pair (UTP) Category 5/5e cable, or better data

grade cable. While a Category 3 or 4 cable may

initially seem to work, it will soon cause data loss.

Step 5: Supply power to the GSD-805.

A. Connect one end of the power cable to the

Switch.

B. Connect the power plug of the power cable to a

standard wall outlet.

When the GSD-805 receives power, the Power LED should

remain solid Green.

3.4 DIP Switch -- VLAN Isolation Feature

The GSD-805 has one feature called VLAN Isolation. When

switching the DIP to the “Enable” position, port 1 to port 7

wouldn’t able to communicate with each other.

1 2 3 4 5 6 7 8

ACTLNK

GSD-805

PWR

Port Isolation

Port 1 to Port 7 only can communicate with Uplink Port 8

1 2 3 4 5 6 7 8

ACTLNK

GSD-805

PWR

Port-based VLAN

Uplink

2. Product Features

RJ45 Interface

z 8 10/100/1000Mbps Gigabit Ethernet ports

z Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-

TX, IEEE 802.3ab 1000BASE-T

z Supports auto MDI/MDI-X function

Switching

z Hardware-based 10/100Mbps in half/full duplex mode and

1000Mbps in full duplex mode, ow control, and auto-

negotiation

z Features Store-and-Forward mode with wire-speed ltering

and forwarding rates

z IEEE 802.3x ow control for full duplex operation and

backpressure for half duplex operation

z Integrated address look-up engine, supporting 8K absolute

MAC addresses

z 9K jumbo packet size

z Automatic address learning and address aging

z Supports VLAN isolation mode

z Supports CSMA/CD protocol

Hardware

z Metal housing, desktop size and wall-mount design

z LED indicators for system power, Link/Act port

z Internal power adapter 100-240V AC, 50/60Hz, 0.2A

z FCC, CE Class B compliant

3.3 Switch Rear Panel

Figure 3-2 shows the rear panel of the GSD-805 where there is

a 100-240V, 50/60Hz AC inlet power socket.

DisableEnable

100-240V

, 50/60Hz, 0.2A Max.

Please power off before switching DIP.

Port-based VLAN Function

Figure 3-2: GSD-805 Rear Panel

Power

Note

1. The device is a power-required device, meaning

it will not work till it is powered. If your

networks should be active all the time, please

consider using UPS (Uninterrupted Power Supply)

for your device. It will prevent you from network

data loss or network downtime.

2. In some areas, installing a surge suppression

device may also help to protect your GSD-805

from being damaged by unregulated surge or

current to the GSD-805 or the power adapter.

4. Installing the Switch

This part describes how to install your GSD-805 and make

connections to it. Please read the following topics and follow

the procedures as presented.

Note

The GSD-805 does not need software

configuration.

Desktop Installation

To install the GSD-805 on desktop, simply follow the following

steps:

Step 1: Attach the rubber feet to the recessed areas on the

bottom of the GSD-805.

Step 2: Place the GSD-805 on desktop near AC power source.

Step 3: Keep enough ventilation space between the GSD-805

and the surrounding objects.

Note

When choosing a location, please keep in mind the

environmental restrictions discussed in Chapter 5

-- Product Specifications.

Wall-mount Installation

Step 1: Please nd the wall that can mount the GSD-805.

Step 2: Install two screws on the wall.

Step 3: Hang the GSD-805 on the screws from the wall.

Step 4: Repeat step 5 of Desktop Installation for power

supply to the GSD-805.

Note

Before mounting the device to the wall, please

check the location of the electrical outlet and the

length of the Ethernet cable.

RJ45

UTP Cable

100~240V AC, 50/60Hz

DisableEnable

Port-based VLAN Function

- 9 -

- 10 -

- 11 -

- 12 - - 13 -

- 14 -

5.ProductSpecications

Model GSD-805

Hardware Specications

Hardware Version 3

Network Connector

8-Port RJ45 for 10/100/1000BASE-T,

auto MDI/MDIX

LED Display

System:

Power (Green)

Per port:

10/100/1000 LNK/ACT (Green)

Switch Architecture Store and Forward switch architecture

MAC Address Table

8K MAC address table with auto

learning function

Packet Buer 1Mbit

Switch Fabric 16Gbps

Switch Throughput 11.9Mpps @64 bytes

Jumbo Packet 9216 bytes

Flow Control

Back pressure for half duplex. IEEE

802.3x pause frame for full duplex

Power Requirements

Internal power 100-240V AC,

50/60Hz, 0.2A

6. Customer Support

Thank you for purchasing PLANET products. You can browse

our online FAQ resource on PLANET Website rst to check if it

could solve your issue. If you need more support information,

please contact PLANET switch support team.

PLANET online FAQs:

https://www.planet.com.tw/en/support/faq

Switch support team mail address:

support@planet.com.tw

Contents are subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp.

All other trademarks belong to their respective owners.

Power Consumption Max. 2.4 watts/8.1 BTU

Dimensions

(W x D x H)

168 x 93 x 32mm

Weight 428g

Standard Conformance

EMI Safety FCC Class B, CE

Standard Compliance

IEEE 802.3

IEEE 802.3u

IEEE 802.3ab

IEEE 802.3x

Ethernet

Fast Ethernet

Gigabit Ethernet

Flow Control

Environment

Operating

Environment

0 ~ 50 degrees C

Storage Environment -10 ~ 70 degrees C

Operating Humidity

5 ~ 95%, relative humidity

non-condensing

Storage Humidity

5 ~ 95%, relative humidity,

non-condensing

PLANET TECHNOLOGY CORPORATION

e-mail: sales@planet.com.tw http://www.planet.com.tw

10F., No.96, Minquan Rd., Xindian Dist., New Taipei City, Taiwan, R.O.C. Tel:886-2-2219-9518 Fax:886-2-2219-9528

EC Declaration of Conformity

For the following equipment:

*Type of Product: 8-Port 10/100/1000Mbps Gigabit Ethernet Switch

*Model Number: GSD-805

* Produced by:

Manufacturer‘s Name : Planet Technology Corp.

Manufacturer‘s Address: 10F., No.96, Minquan Rd., Xindian Dist.,

New Taipei City 231, Taiwan, R.O.C.

is herewith confirmed to comply with the requirements set out in the Council Directive on the

Approximation of the Laws of the Member States relating to Electromagnetic Compatibility

Directive on 2014/30/EU and Low Voltage Directive 2014/35/EU.

For the evaluation regarding the EMC, the following standards were applied:

EN 55032 (2015 + AC:2016)

EN 61000-3-2 (2014)

EN 61000-3-3 (2013)

EN 55035 (2017)

EN 62368-1 (2014 + A11:2017)

Responsible for marking this declaration if the:

 Manufacturer  Authorized representative established within the EU

Authorized representative established within the EU (if applicable):

Company Name: Planet Technology Corp.

Company Address: 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan

R.O.C.

Person responsible for making this declaration

Name, Surname Kent Kang

Position / Title : Director

Taiwan June 19, 2019

Place Date Legal Signature
