Seite 1/9

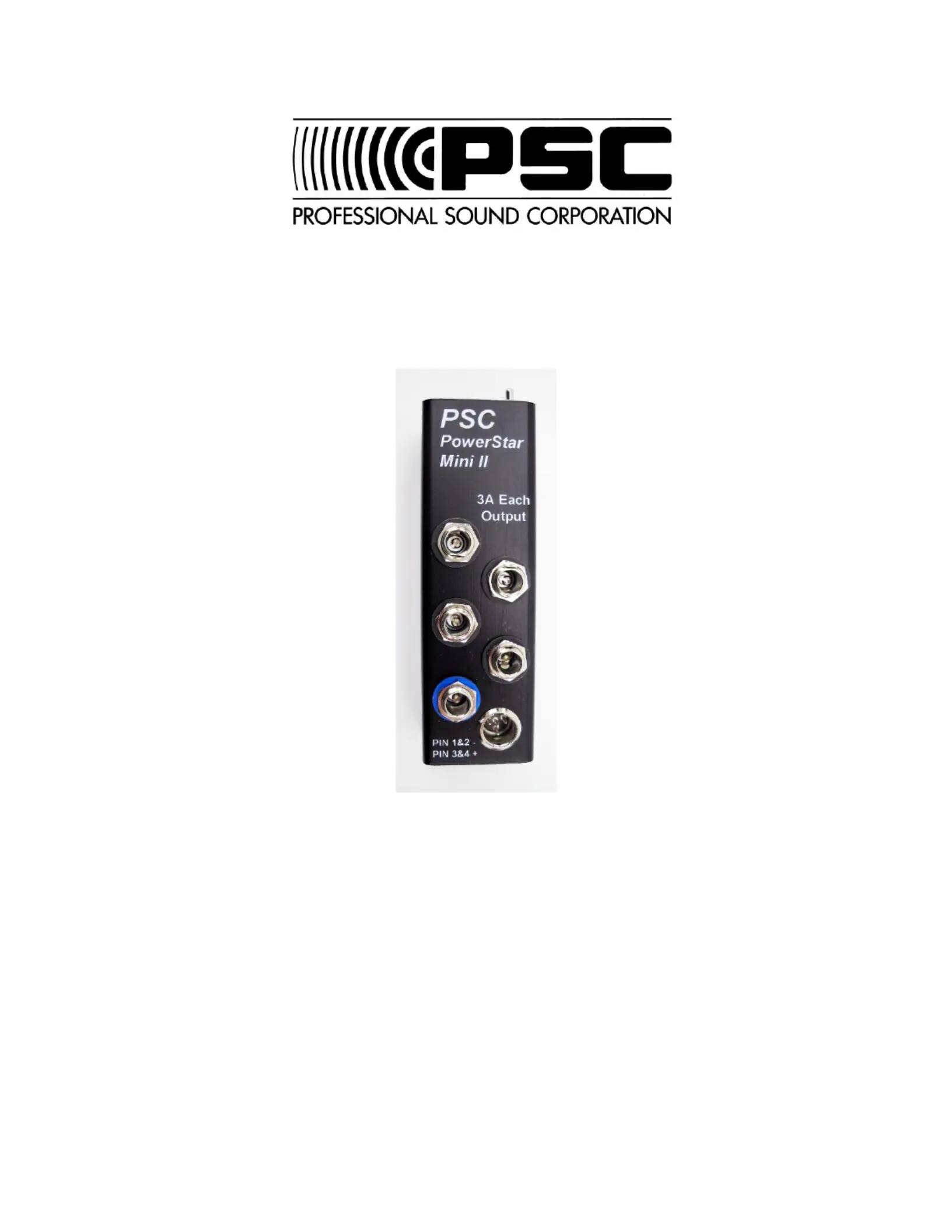

PowerStar Mini II
tm
Quiet Power Distribition for Audio Bags
• One TB4M Power Input
• Five (5) Main Power Outputs, One lways On “A ”
• 7 Amps (100.8 watts) Global Power Output
• USB Power Output with up to 2 Amp Capacity
• Polyfuse Protection on all Outputs
• PSC Quiet Power Technology Filtering on All Outputs
• Multi Color LED Battery Voltage Meter
• Belt Clip for Easy Bag Mounting
• Robust Aircraft Aluminum Housing with Powder Coat Finish
• Made in the U.S.A.
Professional Sound Corp
28085 Smyth Drive
Valencia, CA 91355
www.professionalsound.com
The PSC PowerStar Mini II power distribution system provides a convenient way of new
distributing clean, quiet, reliable 12Vdc power to all your ENG audio equipment from a single
rechargeable battery. The PSC PowerStar Mini II features ve outputs. Each of these outputs is
designed to deliver up to 3 amps of continuous current. The PowerStar Mini II has a global (total)
current limit of 7 amps. top panel features the main power switch, a Multi-Color LED battery The
meter and a USB power output that will supply up to 2 Amps of current. e power switch always Th
controls f of the ve output power connectors. The 5th connector is always turned our on
whenever a battery is connected to the power input TB4M connector. This 5th connector is
conveniently marked with a blue ring surrounding the connector.
The PowerStar Mini II features PSC’s exclusive Silent Power Technology designed to filter out
unwanted switch mode noise and RF interference from your power lines. Th exclusive PSC is
lter g will ensure you of clean, quiet recordings in the eld by minimizing unwanted inter-in
modulation noise, RF interference and other noise sources. In addition, each of the PSC
PowerStar Mini ve output connectors are individually Polyfuse protected. Power input is via II’s
a 4-pin mini XLR connector. The PowerStar Mini II includes a Multi-Color LED battery meter and
a USB power output connector that can supply up to 2 Amps of current. An optional NP-1 battery
cup and an assortment of PSC power cables are available. The PowerStar Mini features reverse
polarity protection, genuine Switchcraft tm connectors, a sturdy aircraft aluminum case tough ,
powder coat nish and a removable stainless steel belt clip.

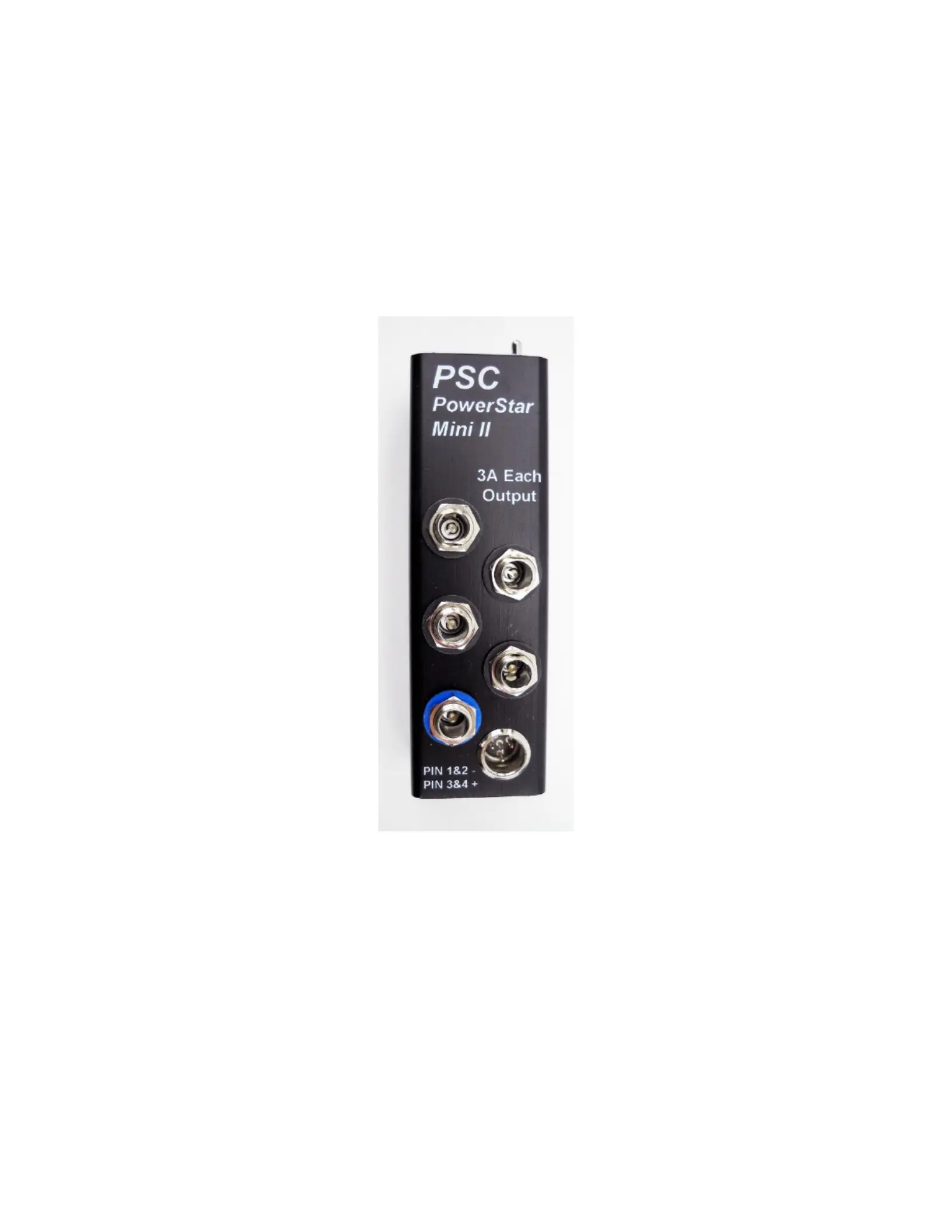

POWERSTAR MINI II CONNECTORS:
The PSC PowerStar Mini uses a Switchcraft mini 4 pin male chassis XLR for power input. This II
connector is wired as follows: Pins 1 and 2 are negative (-) ground and pins 3 and 4 are positive
(+). These pins are doubled up for redundancy and to lower connection impedance. The five
output connectors are genuine Switchcraft tm coaxial power connectors. They feature a 2.5mm
center pin and special threaded locking sleeve. They are wired as follows: Center Pin Positive
(+) and Outside Ring Negative (-). These connectors must be used with long barrel 2.5mm
mating connectors. All cables provided by PSC incorporate these features.
The fth output connector is surrounded by a blue ring. We suggest you use this connector to
power your audio mixer.
Power Input Connector TB4M:
Pins 1&2 Negative (-)
Pins 3&4 Positive (+)
Power Output Connectors: Switchcraft PCL712A
Center Pin Positive (+)
Outside Ring Negative (-)
