Personal injury and/or equipment

damage may result if proper safety

precautions are not observed.

• Ensure that the reel has been properly

installed before connecting supply line

(see installation instructions).

• Bleed fluid/gas pressure from system

before servicing reel.

• Before connecting reel to supply line

ensure that supply line pressure does

not exceed maximum rated working

pressure of reel.

• Do not play pranks on other personnel.

Even low pressure is very dangerous

and can cause irrepairable damage or

death.

• Do not wear loose fitting clothing while

operating reel.

• Be aware of other personnel in work

area.

• Be aware of other machinery in work

area.

• If a leak occurs in the hose or reel,

remove supply line pressure

immediately.

• Treat and respect a hose reel as any

other piece of machinery, observing all

common safety practices.

Operating Instructions

Series 30000 Hand Crank Reels

Form# 837-696A Rev: 10/2025

CA30106 LCA32106 MCA33106 MCA33122 M

CA30112 LCA32112 LCA33112 LCA33128 L

CA30118 LCA32112 MCA33112 MCA33128 M

CA30122 LCA32118 LCA33118 LGCCA33112 L

CA30128 LCA32118 MCA33118 M

CA32106 LCA33106 LCA33122 L

Safety Precautions

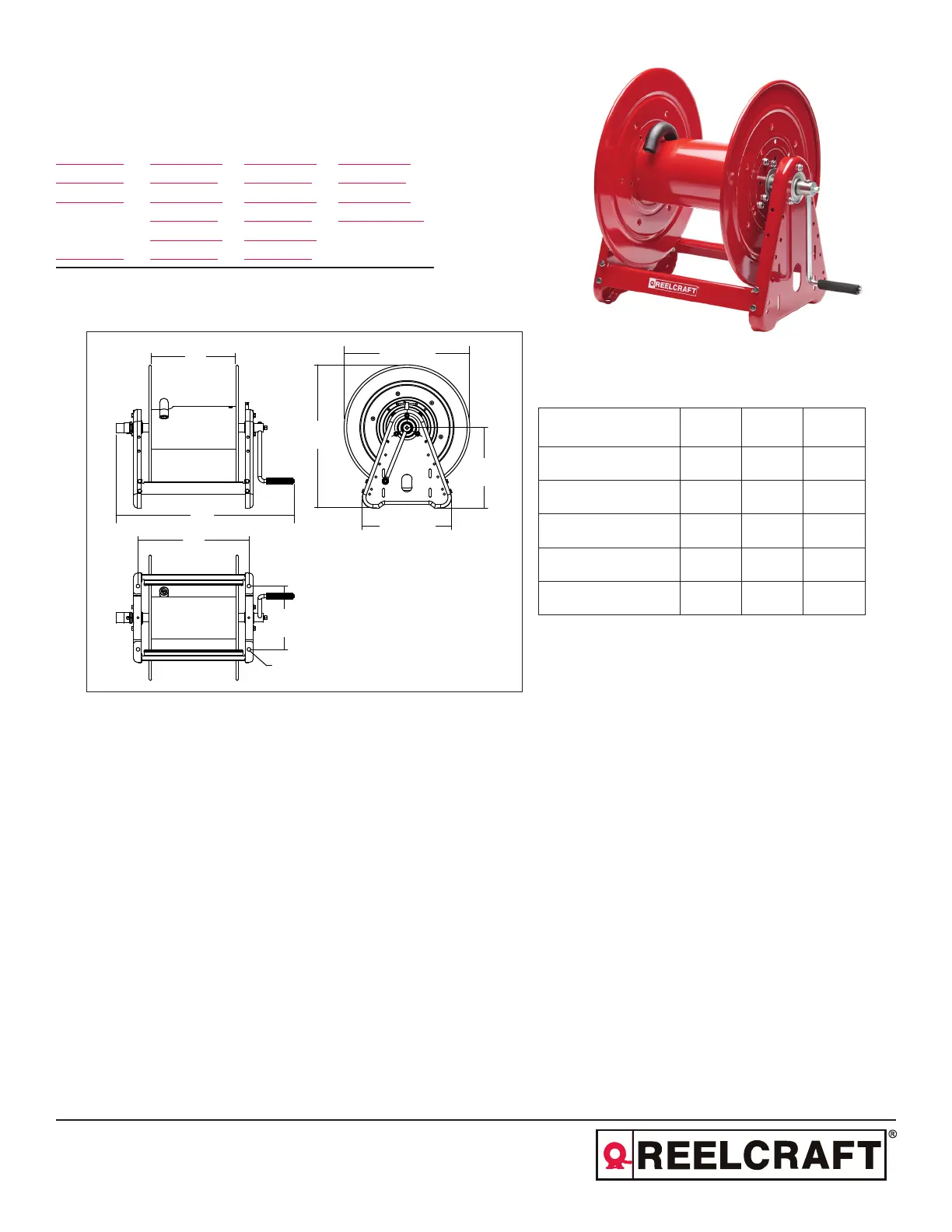

Dimensional Data

Part #BCD

30106 / 32106 / 33106

6”19 5/8”9 3/4”

30112 / 32112 / 33112

12”25 5/8”15 3/4”

30118 / 32118 / 33118

18”29 5/8”21 3/4”

30122 / 32122 / 33122

22”33 5/8”25 3/4”

30128 / 32128 / 33128

27”38 5/8”30 3/4”

17 3/4”

(451 mm)

11 3/8”

(289 mm)

12 3/4”

(324 mm)

20 1/4”

(514 mm)

9”

(229 mm)

B

C

D

Ø 0.531”

(4) Places

Reelcraft Industries, Inc

2842 E Business Hwy 30, Columbia City, IN 46725

855-634-9109 • [email protected] • www.reelcraft.com
