1. Do not use reel at higher pressures or temperatures than listed on

the back of this bulletin.

2. Remove all spring tension before beginning dissassembly process.

SAFETY

TH5400 OMP

Four 5/16” diameter mounting holes

Operating Instructions

Series TH5000 Spring Driven Hose Reels

Medium Pressure Model Numbers:

Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725

Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605

Customer Service: 855-634-9109 • [email protected] • www.reelcraft.com

Form# 1150-1003 Rev: 2/2024

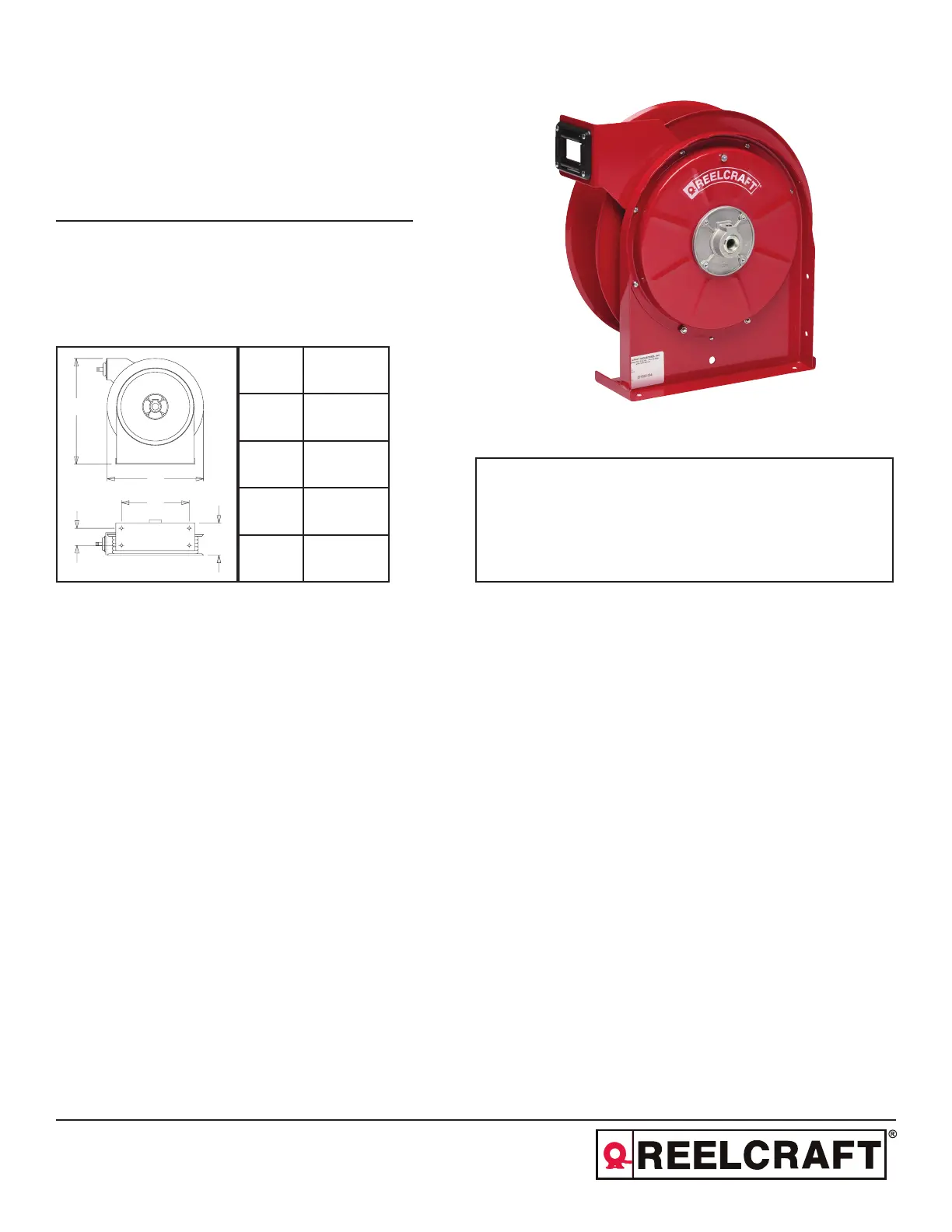

Dimensions

A14 1/2”

B13 1/2”

C9 3/4”

D2 1/2”

E6”

E

D

C

B

A

5 3/8"

2 1/2"

8"

12 5/8"

12 7/8"

E

D

C

B

A

INSTALLATION:

A flexible hose connection must be used between the hose reel inlet and the source of supply to prevent possible

misalignment and binding.

LUBRICATION:

Hose reel spring and bearings are factory lubricated and require no further lubrication.

REPLACING HOSE:

1. Wind spool flange clockwise-facing swivel-until spring is tight.

2. Back off three turns and latch.

3. Insert hose through roller guide.

4. Connect hose fitting to swivel joint and secure hose with clamps.

ADJUSTMENTS:

To adjust spring tension, add or remove wraps of hose from the spool, one wrap at a time until desired tension is

obtained.

REPAIRS:

Extensive repairs should be performed only by an authorized serviceman or factory to avoid damage which may

void your warranty. Remove all spring tension before beginning disassembly process.

MOUNTING:

The hose reel is equipped with a universal mounting bracket so that it can be mounted on the floor, wall or

ceiling; whichever place is convenient. The hose guide arm can be moved to the position desired by removing

the screws fastening the guide bracket to the reel base. Shift the guide arm bracket so the hose comes off the

reel at the desired position and replace the screws. NOTE: For proper installation in wall mount applications, ensure

reel is mounted with inlet on the right as you are facing the reel. Failing to do so could cause latching issues.
