TH 210-R
Quick Start Guide
www.sauermanngroup.com
EN FR ES
English
Quick Start Guide
Humidity and temperature transmitter

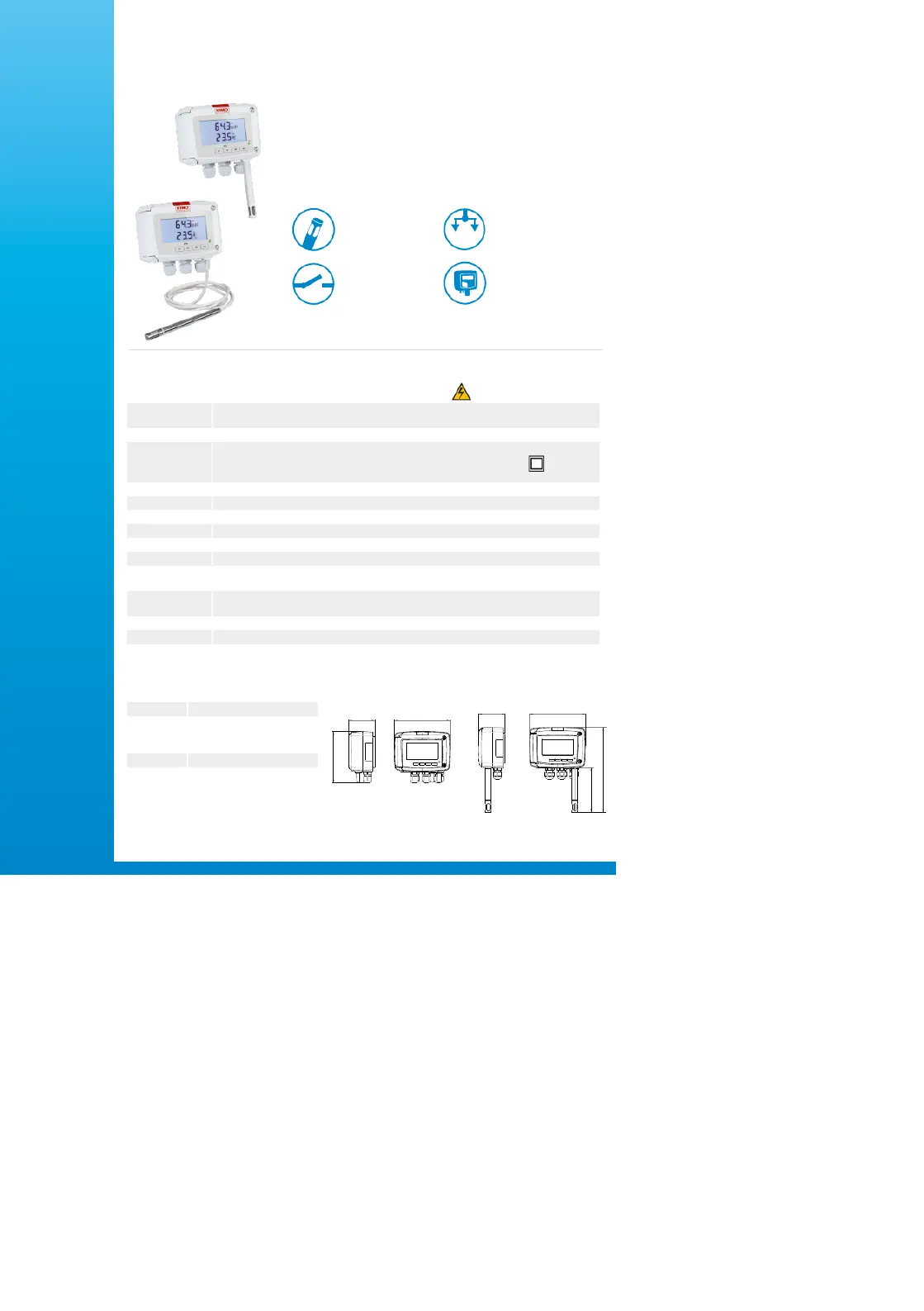

General features
Features of the housing
TH 210-R
Two 4-wire analogue
output 0-5/10 V or
0/4-20 mA
Stainless steel or
polycarbonate
probes
ABS V0 IP65 housing,
with or without display
2 relay outputs
0-5 / 10 V
4-20 mA
Power supply
TH 210-BXX models: 24 Vac/Vdc ±10%. TH 210-HXX models: 100-240 Vac, 50-60 Hz
Warning: risk of electric shock
Output
2 x 4-20 mA or 2 x 0-20 mA or 2 x 0-5 V or 2 x 0-10 V (4 wires)
Common mode voltage < 30 VAC. Maximum load: 500 Ω (0/4-20 mA). Minimum load: 10 kΩ (0-5/10 V)
Relay outputs 2 changeover relays. NO: 5 A/NC: 3 A/240 Vac
Galvanic isolation
Inputs and outputs (models 100-240 Vac).
Device fully protected by DOUBLE ISOLATION or REINFORCED ISOLATION
Outputs (models 24 Vac/Vdc)
Consumption TH 210-B: 6 VA/TH 210-H: 8 VA
Electrical connection Screw terminal block for cable 2.5 mm². Executed following the good practices guidelines.
Type of sensor Hygrometry: capacitive. Temperature: Pt100 1/3 as per IEC 60751 (2008)
Type of uid Air and neutral gases
PC communication USB-Mini Din cable
Environment Air and neutral gases
Conditions of use
(°C/%RH/m)
From -10 to 50 °C. In non-condensing condition. From 0 to 2000 m.
Storage
temperature
From -10 to 70 °C
Security Protection class II. Pollution degree 2. Overvoltage CAT II
European directives 2014/30/EU EMC; 2014/35/EU Low Voltage; 2011/65/EU RoHS II; 2012/19/EU WEEE
Material ABS V0 as per UL94
Protection IP65
Display
75 x 40 mm, LCD 20 digits 2 lines.
Height of digits:
Values: 10 mm; Units: 5 mm
Cable gland For cables Ø 8 mm maximum
Weight 340 g
59
115
59
125
125
100
190
All dimensions are in millimeters.
Remote model
Ambient model
Accessories
Maintenance: please avoid any aggressive
solvents. Please protect the transmitter
and its probes from any cleaning product
containing formalin, that may be used for
cleaning rooms or ducts.
Precautions for use: please always use the device
in accordance with its intended use and within
parameters described in the technical features in order
not to compromise the protection ensured by the
device.
Please refer to the data sheet to get more information about
available accessories.
Transmitters conguration
It is possible on the class 210 to congure all the parameters of the transmitter: units, measuring ranges, outputs, channels,
calculation functions, etc. via different methods:
• Keypad for models with display: a code-locking system allows to secure the installation (See class 210 transmitters user manual).
• Software (optional) on all models. Simple user-friendly conguration. See LCC-S user manual.
Congurable analogue output:
Range with center zero (-40/0/+40 °C), with offset zero (-30/0/+70 °C) or standard range (0/+100 °C). It is possible to
congure your own intermediary ranges
Caution: the minimum difference between the high range and the low range is 20.
Congure the range according to your needs: outputs are automatically adjusted to the new measuring range
-100
0 V
4 mA
0 +100
10 V
20 mA
New range
-100
0 V
4 mA
0 +100
10 V
20 mA
50

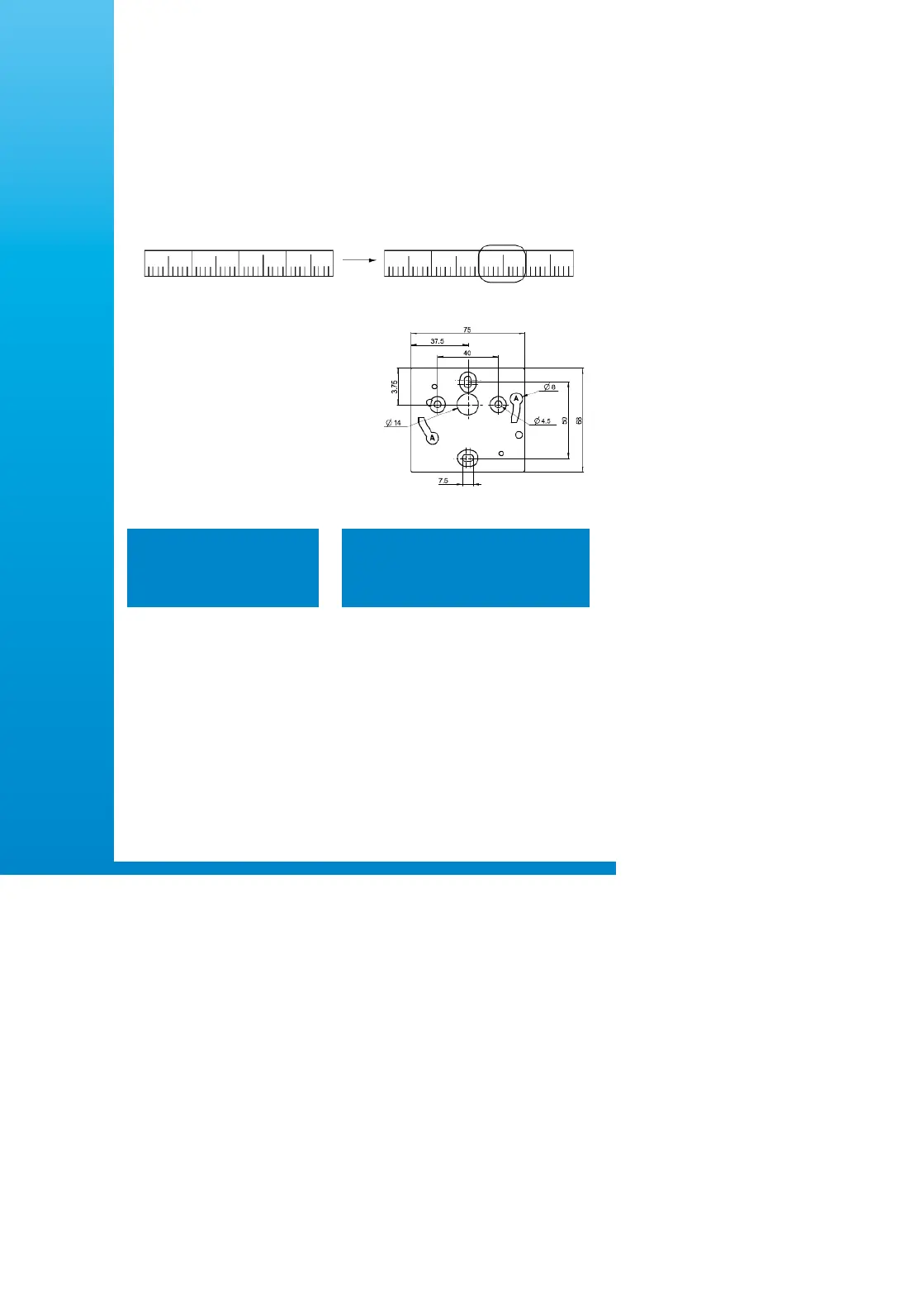

To mount the transmitter, mount the ABS plate on the wall (drilling:
Ø 6mm, screws and pins are supplied).
Insert the transmitter on the xing plate (see A on the drawing
beside). Rotate the housing in clockwise direction until you hear a
“click” which conrms that the transmitter is correctly installed.
2
Mounting
