Seite 1/2

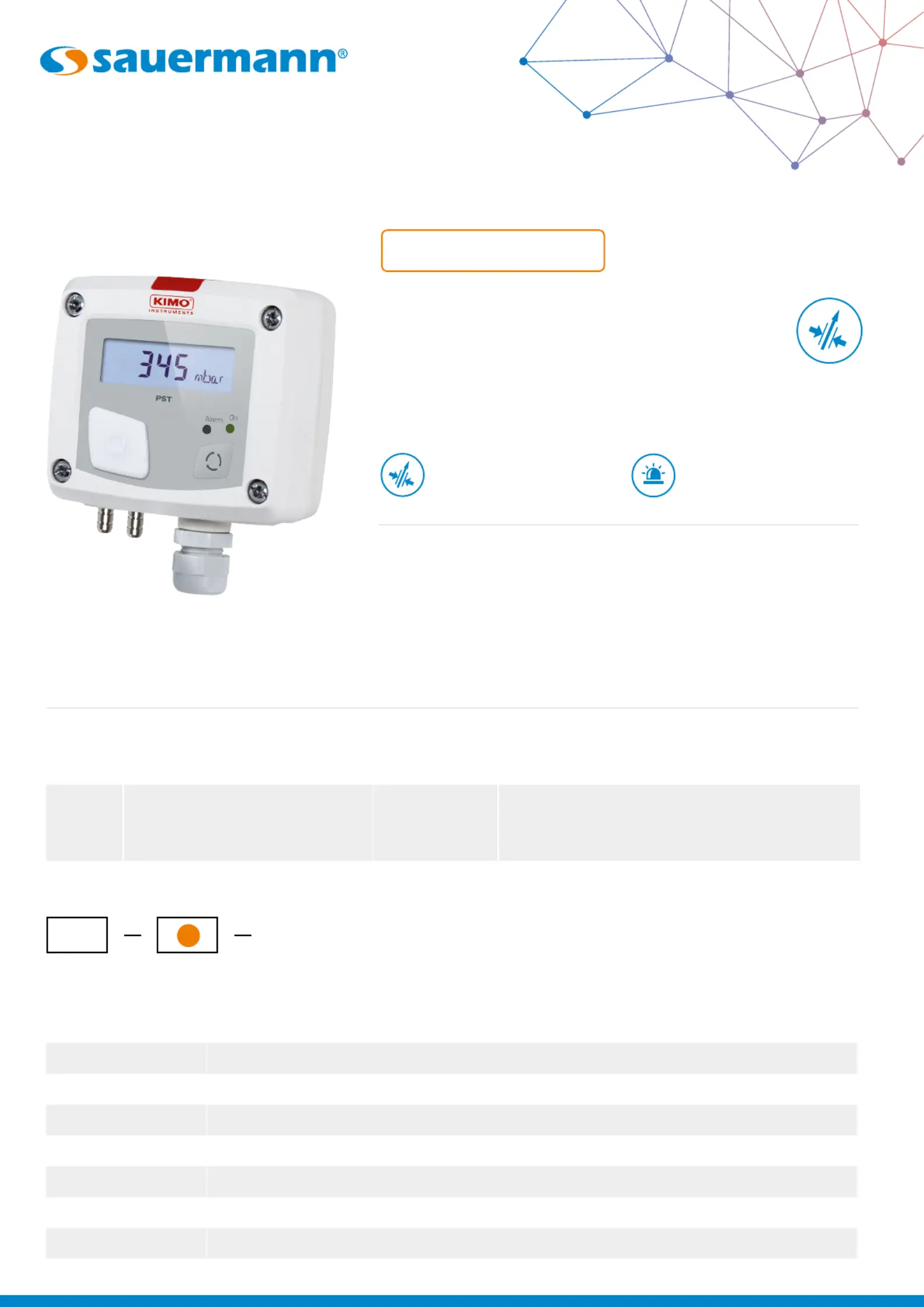

PST
Manostats
DATA SHEET
Parameter Accuracies* Measuring ranges Resolution
Pressure
PST-11: ±1% of reading ±2 Pa
PST-12: ±1.5% of reading ±3 Pa
PST-13: ±1.5% of reading ±3 mmH
2
O
PST-14 and PST-15: ±1.5% of reading ±3 mbar
From -100/+100 Pa to
-2000/+2000 mbar
(according to model)
PST-11, PST-12 and PST-13: 1 Pa, 0.1 mmH
2
O, 0.01inWG, 0.01mmHG,
0.1 daPa, 0.001 kPa (0.01 kPa for PST-13), 0.01 hPa, 0.01 mbar
PST-14 and PST-15: 1 mbar, 0.1 inWG, 1 mmHG,
0.1 PSI, 1 mmH
2
O, 1 daPa, 1 hPa, 0.1 kPa
Technical specications
*All the accuracies indicated in this technical datasheet were stated in laboratory conditions, and can be guaranteed for measurements carried out in the same conditions, or carried out with calibration compensation.
Features
• RCR relay output 3A/240 Vac
(NC), power supply 24 Vac/Vdc
• ABS V0 IP65 housing
• “¼ turn” system mounting with
wall-mount plate
• Housing with simplied mounting
system
• Solenoid valve for auto-calibration
(only on PST-11 model)
Visual and audible alarm,
red led in front
Range from ±100 Pa to
±2000 mbar
(according to model)
Output 1 RCR relay. NO (normally opened): 5 A/NC (normally closed): 3 A/240 Vac. Common mode voltage <30 Vac
Power supply 24 Vac/Vdc ±10%
Consumption 3 VA
Relay and alarm status Red led in front and internal buzzer (70 dB at 10 cm)
European directives 2014/30/EU EMC; 2014/35/EU Low Voltage; 2011/65/EU RoHS II; 2012/19/EU WEEE
Electrical connection Terminal block for cables Ø 0.05 to 2.5 mm
2
. Carried out according to the code of good practice
PC communication USB-mini Din cable
Environment Air and neutral gases
Measured parameter
Measuring range
11: -100/+100 Pa
12: -1000/+1000 Pa
13: -10,000/+10,000 Pa
14: -500/+500 mbar
15: -2000/+2000 mbar
Part number
Example: PST – 13
Manostat PST with measuring range
from -10,000 to +10,000 Pa
PST
13
Unit of measurement
PST-11, PST-12 and PST-13:
Pa, mmH
2
O, inWG, mmHG, daPa, kPa, hPa, mbar
PST-14 and PST-15:
mbar, inWG, mmHG, PSI, mmH
2
O, daPa, hPa, kPa
Response time 1/e (63%) 0.3 s
Autozero
Manual by push-button
Automatic by solenoid valve (only on PST-11)
Type of uid Air and neutral gases
Tolerated overpressure
PST-11, PST-12: 21,000 Pa; PST-13: 69,000 Pa;
PST-14: 1400 mbar; PST-15: 4100 mbar
Conditions of use
(°C/%RH/m)
From 0 to +50 °C. In non-condensing condition.
From 0 to 2000 m.
Storage temperature From -10 to +70 °C
General features
Material ABS V0 as per UL94
Protection IP65
Display
LCD 10 digits. Size: 50 x 17 mm
Height of digits:
Values: 10 mm; Units: 5 mm
Connections
PST-11, PST-12, PST-13:
Ribbed Ø 6.2 mm
PST-14, PST-15:
Security Ø 6.2 mm
Cable gland For cables Ø 8 mm maximum
Weight 143 g

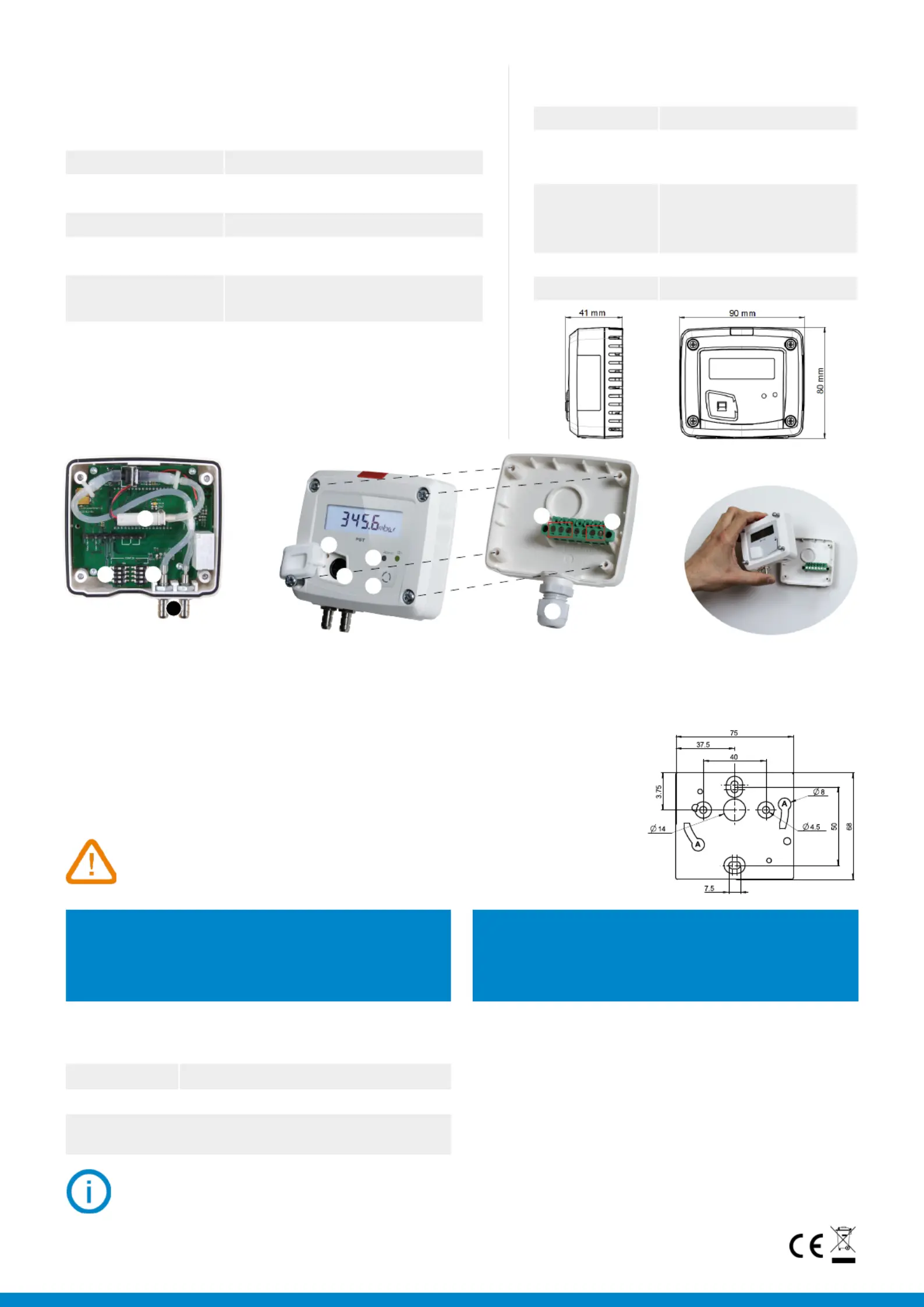

Features of the housing
Connections
1. Solenoid valve (only PST-11)
2. Switchs
3. Switchs
4. Pressure connections
5. Autozero
6. LCC-S software connection
7. Alarm Led
8. Button for settings
9. Relay terminal block
10. Power supply terminal block
11. Cable gland
1
2
4
5
7
8
3
6
9
10
11
FT_EN – PST – 14/01/2021 – Non-contractual document – We reserve the right to modify the characteristics of our products without prior notice.
Maintenance: please avoid any aggressive solvent.
Please protect the transmitter and its probes from any
cleaning product containing formalin, that may be used for
cleaning rooms or ducts.
Precautions for use: please always use the device in accor-
dance with its intended use and within parameters described
in the technical features in order not to compromise the
protection ensured by the device.
www.sauermanngroup.com
Part number Description
KIAL-100A Power supply class 2, 230 Vac input, 24 Vac output
LCC-S Conguration software with USB cable
Connection tubes / Connection ttings / Through-connections
Straight connections / Spherical coupling nut
Accessories
Only the accessories supplied with the device
must be used.
Mounting
To mount the transmitter, mount the ABS plate on the wall (drilling: Ø 6 mm, screws and pins are
supplied). Insert the transmitter on the xing plate (see A on the drawing beside). Rotate the housing in
clockwise direction until you hear a “click” which conrms that the transmitter is correctly installed.
2
Once the transmitter is installed and powered up, please make an
autozero to guarantee the correct working of the transmitter in
any position.
Warranty
Instruments have 1-year guarantee for any manufacturing
defect.
Inside the front housing Removable front face Fixed back housing
