Assembly, Operation
and
Care Manual
The
Shortening Shuttle
®
Pump
Simplicity Series
Model # S-914-W
CAUTION:
Read instructions carefully
before using to insure safe operation.
Safety Precautions
Please read carefully and follow all safety
precautions to ensure maximum safety.
)Maximum temperature the tank of the Shuttle Pump will safely
withstand: 300
º
F
)Warning:
You MUST wear proper clothing when operating
this unit. We recommend using heat resistant Safety
Gloves. See OSHA guidelines for handling hot oil.
)Caution: Skin burns at 120
º
F. For maximum safety use when
hot oil is below 120
º
F.
Operating Precautions
)Caution: Debris must be kept out of the pump when not in
use. Make sure that the Basket Strainer & Shuttle
Wand are in place at all time.
)Warning: Do Not use excessive force to rotate the pump.
Excessive force will damage the pump.
)Warning: If water is pumped through the unit, the pump will
be damaged by subsequent rust deposits. If water
is accidently run through the pump, then pump
four(4) to eight(8) cups of clear warm oil (80 to
90
º
F) through it to clear out the water and coat the
internal parts with oil.
)Cleaning: Rinse outside only with hot water and mild
detergent (
Do Not use any caustic cleaning agents. Most
“Boil Out” products are caustic
). Clean the inside by
wiping with a cloth or paper towels. Do Not put
water inside the Shortening Shuttle
®
Pump.
)Never leave water in the unit. Never run water thru pump.
)Never mix hot oil with water in the unit.
2
Shortening Shuttle
®
Pump
Replacement Parts
Long Hose Assm. .................................. 914-H2
Short Hose Assm. ............................... 914-H3-Y1
12” Handle Kit .....................................914-203
Double Wheel Kit ..................................914-204
Wheel Bracket Kit .................................914-205
Safety Gloves, heat resistant .................914-207
Red Pump ..............................................914-960
Cover Assembly ....................................914-211
Tefl on Glide Block
(under tank) ...............914-213
Basket Strainer ................................... SP-BS-100
Crank Handle Assembly ........................914-218
Safety Labels Kit ...................................914-219
Shuttle Wand .......................................SS-WAND
Accessories
Basket Filter ....................................... SP-BF-200
For Parts Call 800-533-5711
or
e-mail sales@shortening-shuttle.com
or
order online Shortening-Shuttle.com
11
Specifi cations subject to change without notice.
Crank turns but no oil is being pumped:
If the crank & pump turns but no oil is being pumped then there
may be a blockage in the suction tube or the suction hose.
Solution:
First check and clear any blockage around the suction tube in the
bottom of the tank. If there is a blockage then fi rst try to loosen the
blockage by setting the unit in a area that is above 90
º
F for one to
two hours. Then clean out any debris around the suction tube inlet.
If that doesn’t help then you will have to dis-connect the the hose
from the pump to the suction tube, clear the debris from the hose and/
or suction tube then re-assemble the hose to the pump and suction
tube. The hose may be put into a dishwasher for cleaning. Make
sure the hose is dry BEFORE re-attaching it.
Oil is leaking out around the crank:
If there is oil leaking out from around the crank then most likely
the seal in the pump has failed.
Solution:
A replacement pump must be ordered. The seal is not
replaceable.
Oil has solidifi ed in pump & hose(s):
Oil has solidifi ed in the pump and/or hoses from being left without
being pumped out or due to not having back fl ushed the pump.
Solution:
Set the unit in an area that is above 90
º
F for one to two hours to
allow the oil to warm up so that it may be pumped out. Also, the
hoses may be removed from the unit and cleaned in a dishwasher or
by hand with hot water. Make sure the hoses are dry BEFORE re-
attaching them to the unit. If the pump still will not work then
you
may need to order a replacement pump.
10
Assembly Instructions

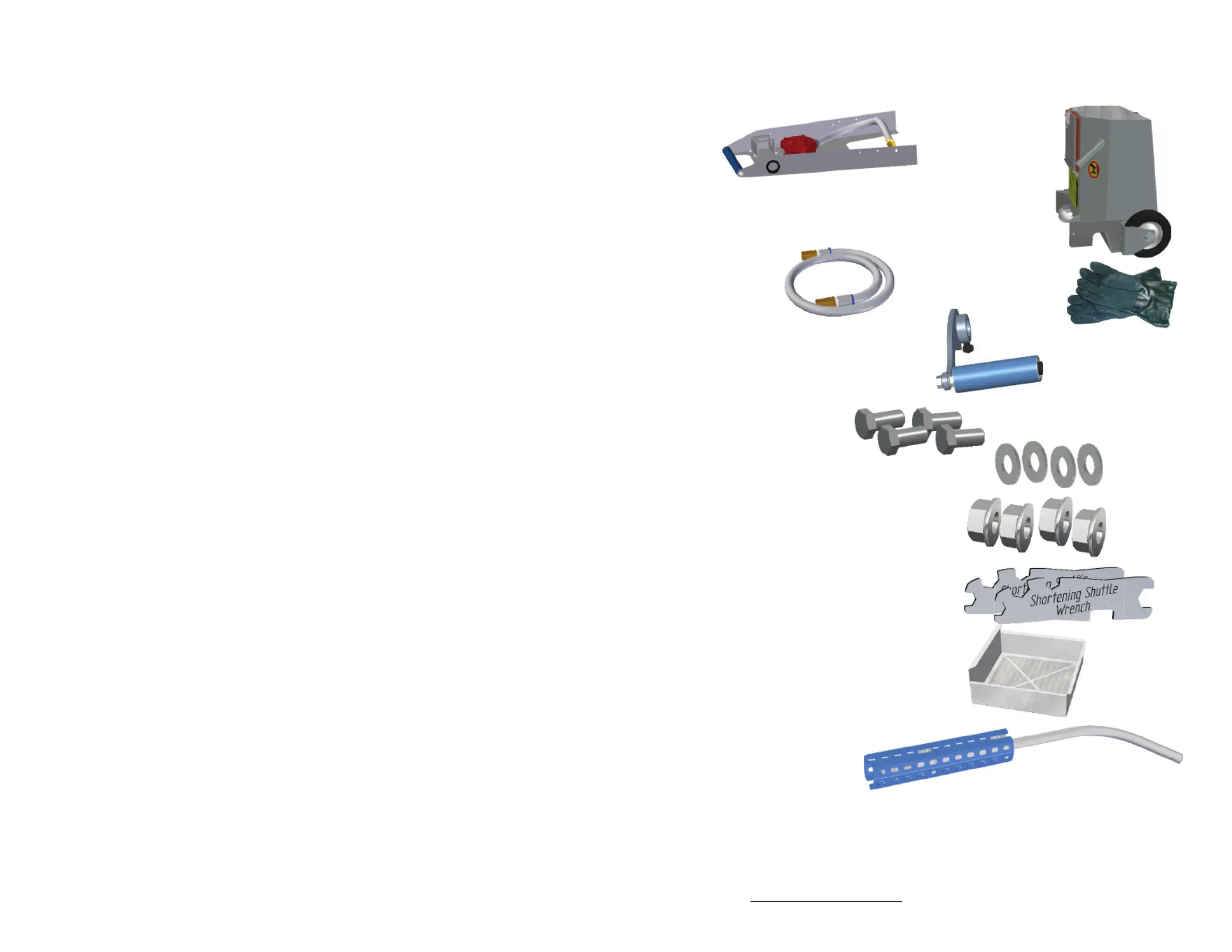

The following parts are included in the
2
boxes for the :Shuttle Pump
1 Pump/Handle Assembly
1 Tank Assembly
1 Long
H2 Hose
Assembly
1 pair of Safety Gloves
1 Crank Handle
4 3/8-16 x 3/4 long Bolts
& 4 Washers
4 3/8-16 Lock Nut
2 Universal Assembly Tools
1 SP-BS-100, Basket Strainer
Shuttle Wand
(SS-WAND)
Note: Before beginning assembly inspect all included
parts to be sure there is no shipping damage. It
is your responsibility to examine ALL packages
BEFORE accepting the shipment. Contact the
shipper immediately if there is any damage.
3
