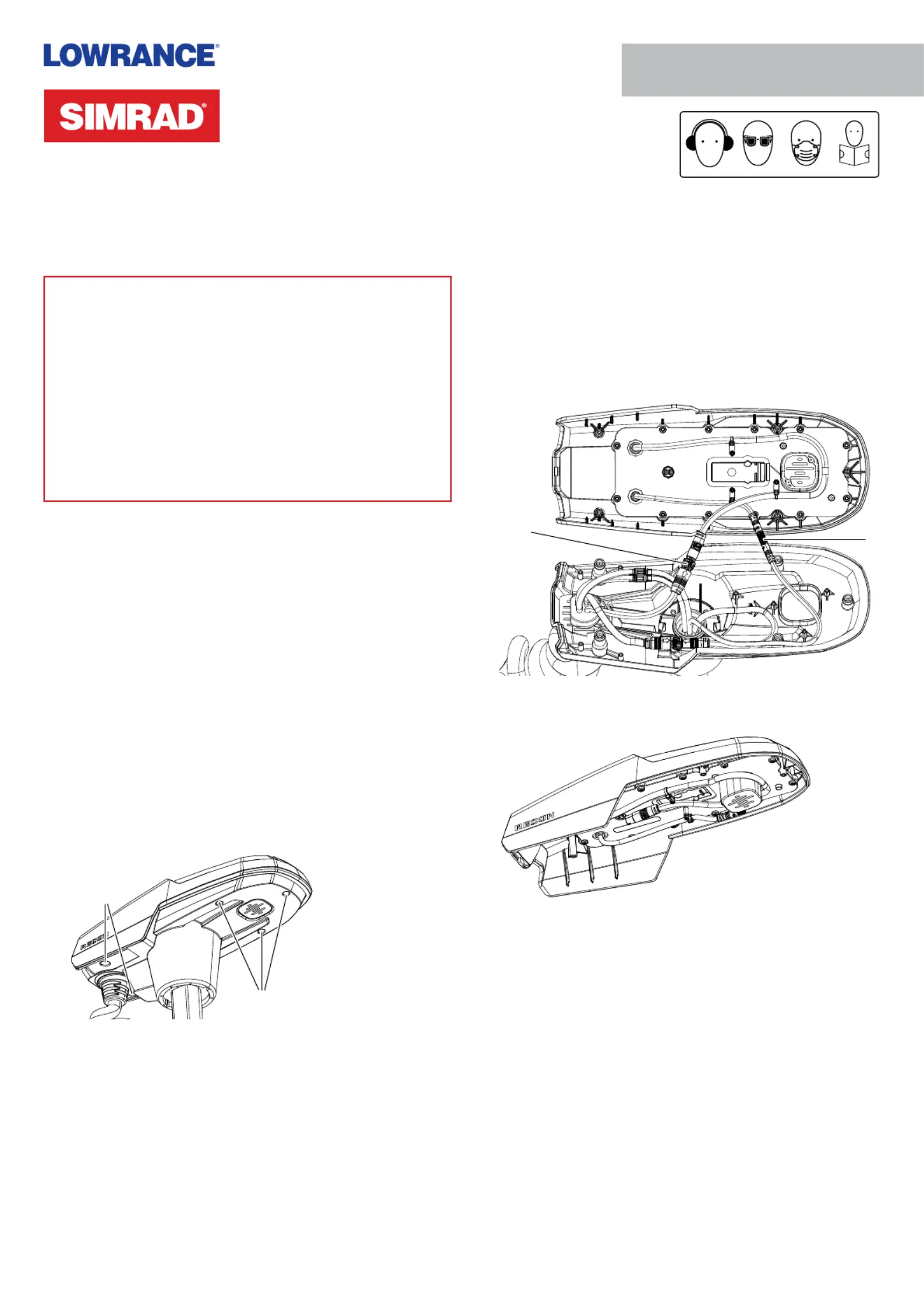

Recon

™

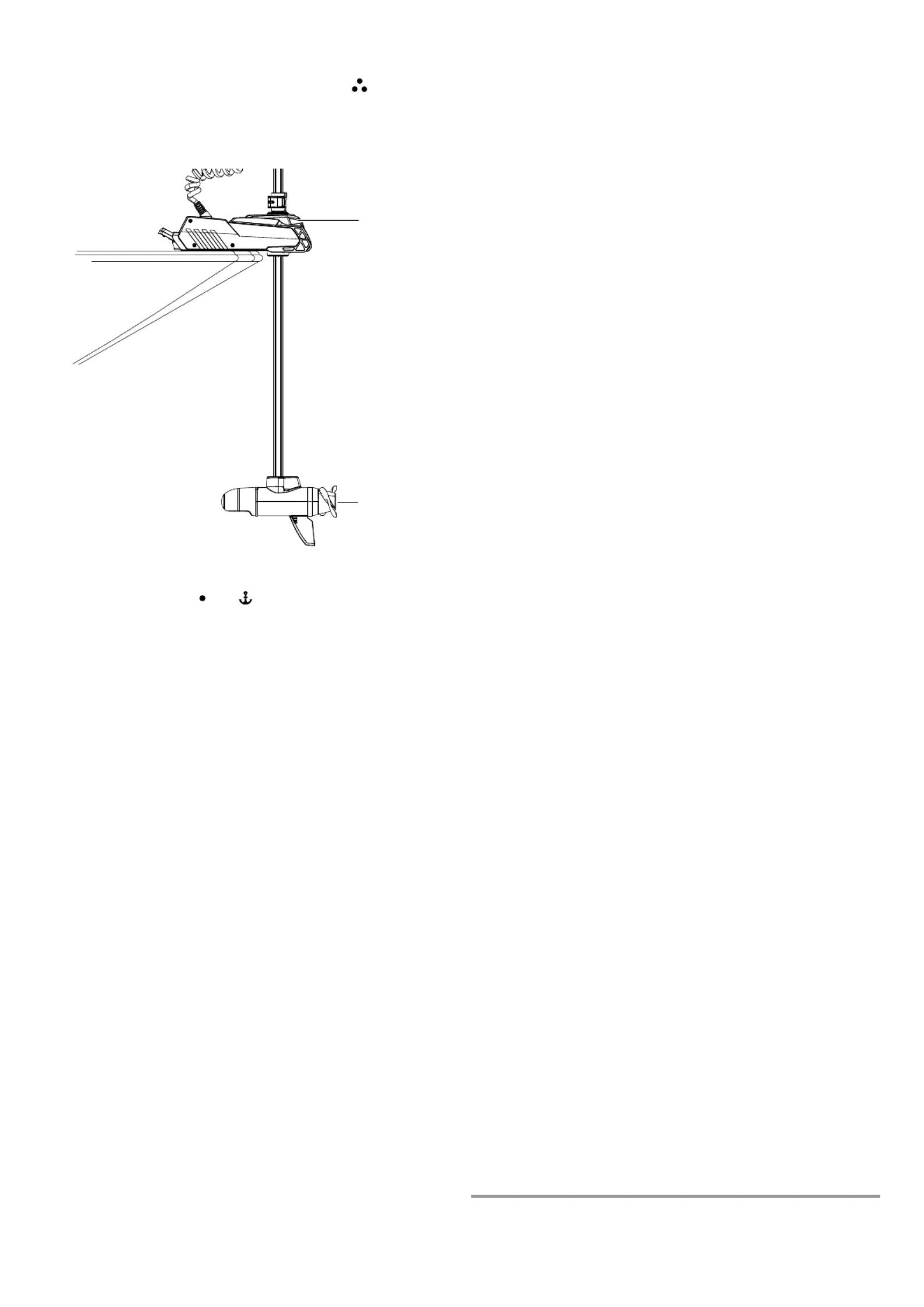

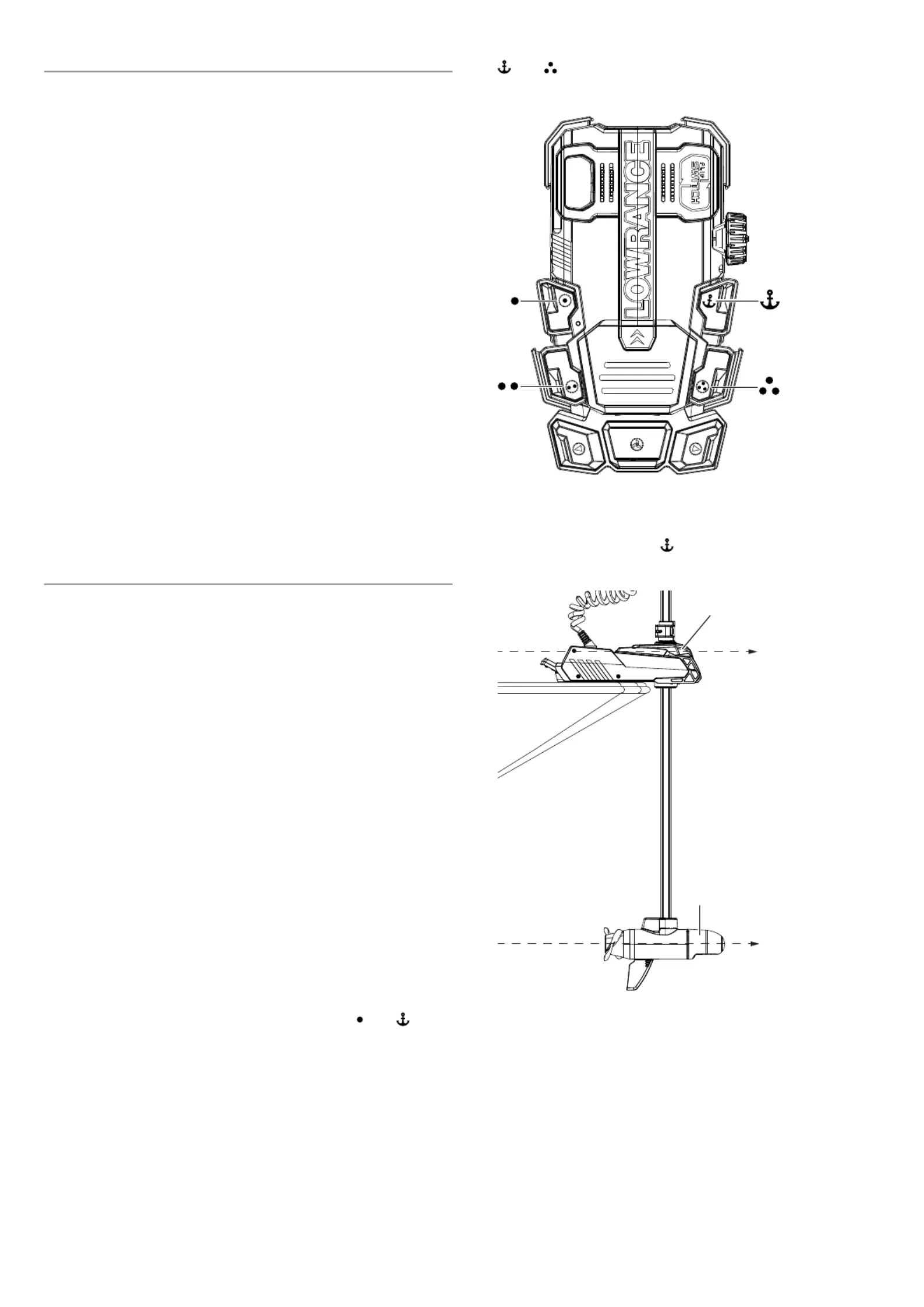

Head Cover GPS/PCB Assembly

Installation Guide: EN

Document version: 001

⚠WARNING: This product must be installed in

accordance with the instructions provided. Failure to do

so could result in personal injury, damage to your vessel

and/or poor product performance.

⚠WARNING: Performing service or maintenance

without rst disconnecting the battery can cause product

damage, personal injury, or death due to re, explosion,

electrical shock, or unexpected motor starting. Always

disconnect the battery cables from the battery before

maintaining, servicing, installing, or removing motor

components.

In the box

•1x head cover GPS/PCB assembly

•5x #6 screws

Tools needed

•#2 Phillips screwdriver

•Torque wrench

Installation

To remove the existing head cover GPS/PCB assembly:

¼Note: This procedure can be completed while the trolling

motor is in either the stowed or deployed position.

1 Disconnect the trolling motor power cable from the

battery (or unplug the power cable if using a plug and

receptacle).

2 Using a #2 Phillips screwdriver, remove the ve screws

() from the underside of the head base.A

A

A

3 Disconnect the head-to-mount communication cable

(larger cable with blue, 5-pin connector) by turning the

black locking collar () a 1/4 turn. B

4 Disconnect the head-to-lower unit communication cable

(smaller cable with black, 4-pin connector) by turning

the connector () until it loosens.C

B

C

5 Separate the head cover from its base.

To attach the new head cover GPS/PCB assembly:

6 Connect the head-to-mount communication cable by

aligning the arrows on the connectors, sliding together

and turning the black locking collar a 1/4 turn.

7 Connect the head-to-lower unit communication cable by

aligning the white dots and arrows on the connectors,

sliding together and turning until tight.

8 Position the head cover over the head base and ensure

all cables are tucked inside.

¼Note: The head cover can only go one way.

9 Secure using ve new #6 screws (supplied), and tighten

to torque 1.36 Nm (12 in-lb).
