Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 04/20/2012

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• 1 x COMP2VGA adapter

• 1 x 15-pin HD extension cable

• 1 x stereo audio cable

• 1 x 9V DC power supply

System Requirements

• PC monitor with 15-pin high-density (HD) port with a horizontal

signal (HS) of 31.5KHz or higher and a vertical signal (VS) of 60KHz

or higher for NTSC systems or 50KHz or higher for PAL systems

• Video and audio source (i.e., DVD, VCR, game machine, camcorder)

• Pair of speakers

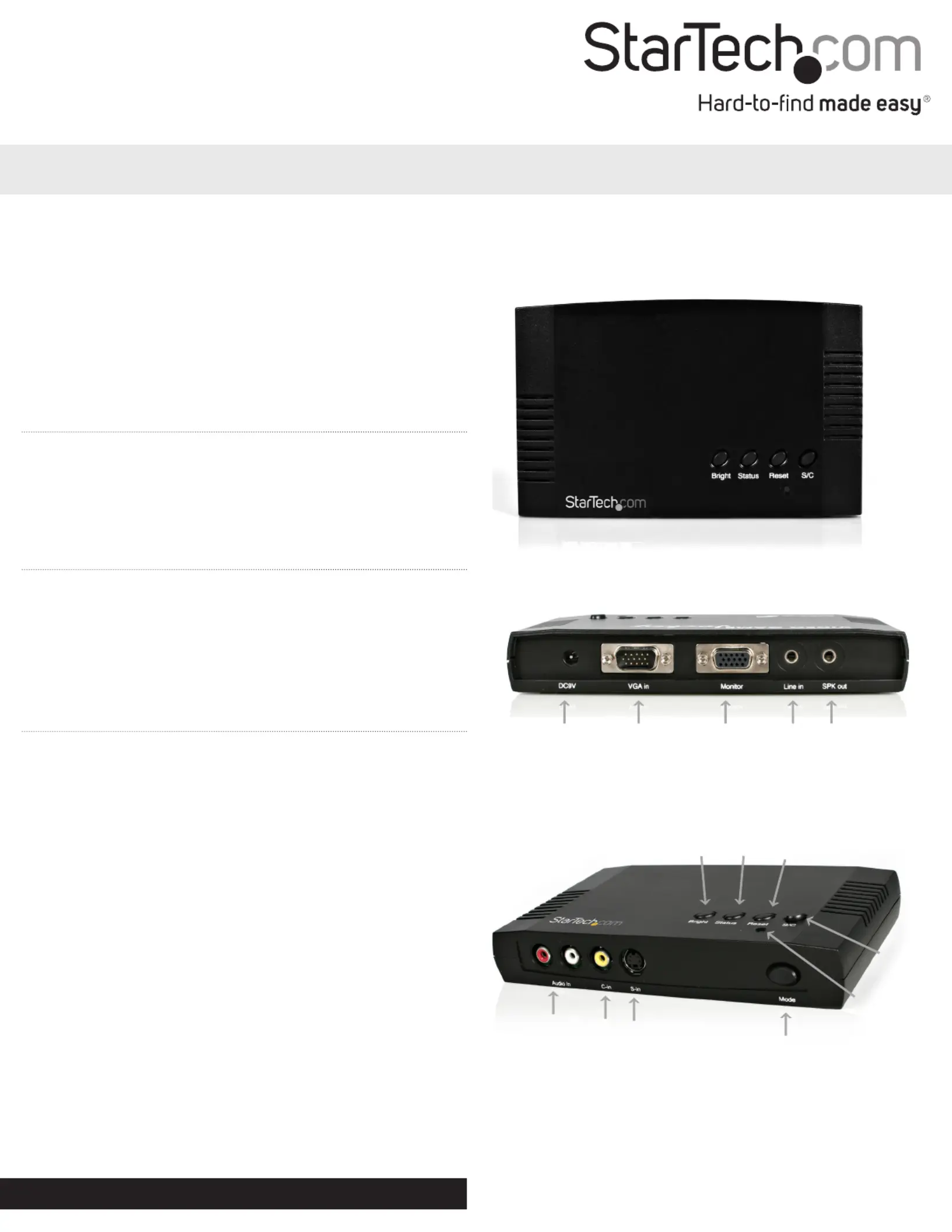

COMP2VGA

Composite and S-Video to VGA Video Converter

*actual product may vary from photos

Installation

This section will guide you through the installation of your device.

Please read through this section carefully and complete each step

in the order listed. Also consult the documentation that came with

your PC and video source (i.e., game console, DVD player, etc.) for

specic details.

1. Make sure that your adapter, PC, monitor, and video device are

turned o.

2. Connect the 15-pin HD cable from your computer’s monitor port

to the VGA In port on the back of the adapter.

3. Plug your monitor into the Monitor port on the back of the

adapter.

4. Connect the provided audio cable from your computer’s sound

card to the Line In port on the back of the adapter.

5. Connect your speakers to the SPK Out port on the back of the adapter.

DC9V

Connects power

supply to external

power source

VGA In

Connects 15-pin

HD cable to PC’s

monitor port

Monitor

Connects to your

PC monitor

Line In

Connects audio

cable to PC’s

sound card

SPK Out

Connects to

external speakers

Audio In

Connects to audio

cables from

video source

Cin/S-in-

Connects to Composite

or S-Video cables on

video source

Bright

Adjusts screen

brightness

Status

Adjusts screen

position

Mode

IN: Video mode

OUT: PC mode

LED (Green)

Lit when adapter

is powered

S/C

IN: Composite

OUT: S-Video

Reset

Resets the adapter
