IDE35252X

3.5” Bay to Dual 2.5” IDE HDD Adapter

Features

Holds one or two 2.5” IDE hard drives•

Occupies a single 3.5” drive slot•

Installation

WARNING! Computer equipment can be severely damaged by static electricity. Be sure that you are properly

grounded before opening your computer case or touching your hard drive. StarTech.com recommends that

you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable,

discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the

computer case) for several seconds. Be sure to handle your hard drive carefully and consult your hard drive

and laptop manufacturer for details on how to remove the drive.

Single Drive Installation

Place the 2.5” hard drive on the top (connector side) of the IDE35252X main board; gently connect the 1.

drive to the 44-pin connector (shown above as connector #1).

Turn the IDE35252X (with drive connected) over; fasten the drive to the board using the provided screws.2.

Once the drive has been secured to IDE35252X, fasten IDE35252X (with drive installed) to a 3.5” drive 3.

slot within the computer case, as you would a standard 3.5” drive, by threading the drive screws into the

holes on the mounting brackets.

Connect the 40-pin IDE connector to the mainboard IDE connector, as you would a normal 3.5” drive. 4.

Similarly, attach an available LP4 power connector (from the computer power supply) to the Power

Mounting

Brackets

(x6)

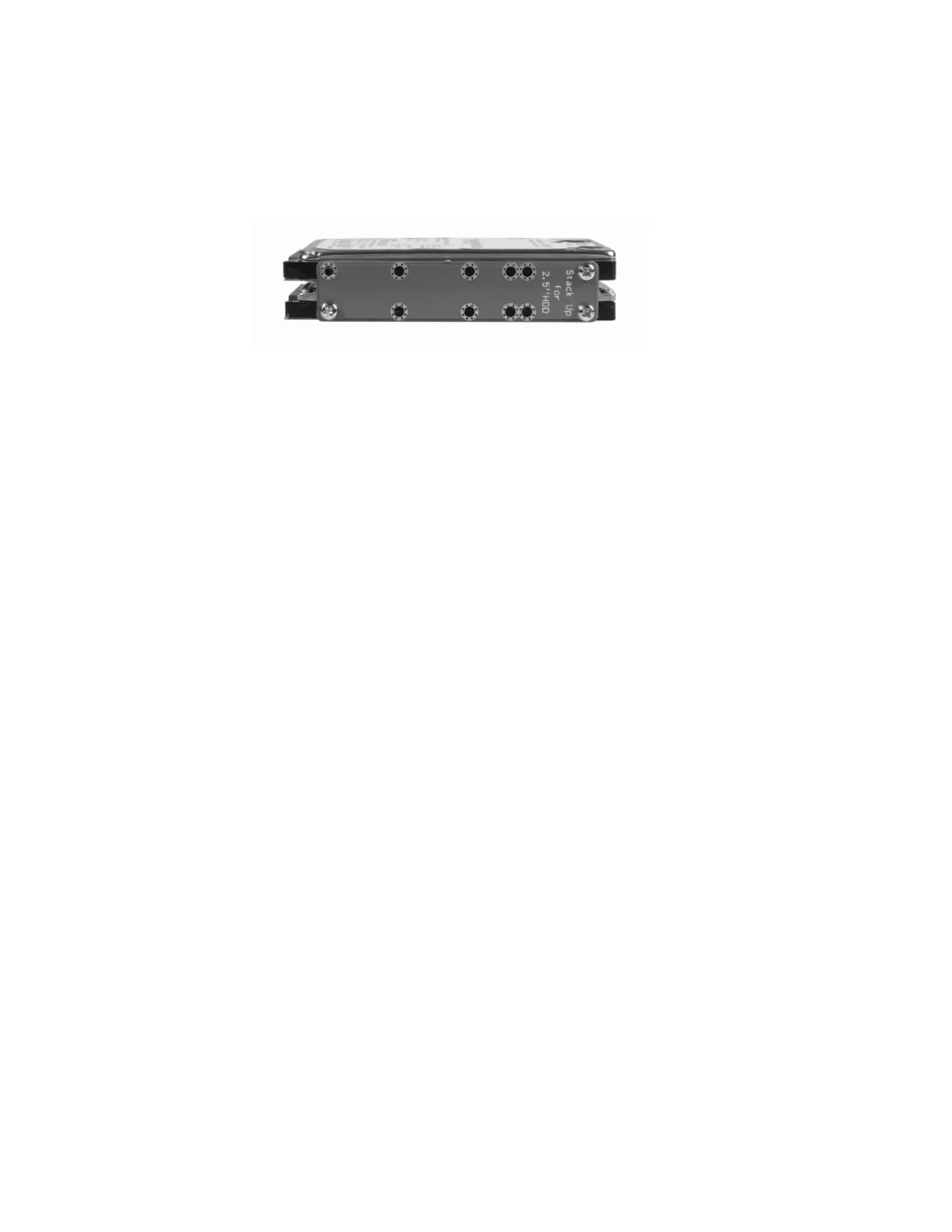

Stacking

Rails

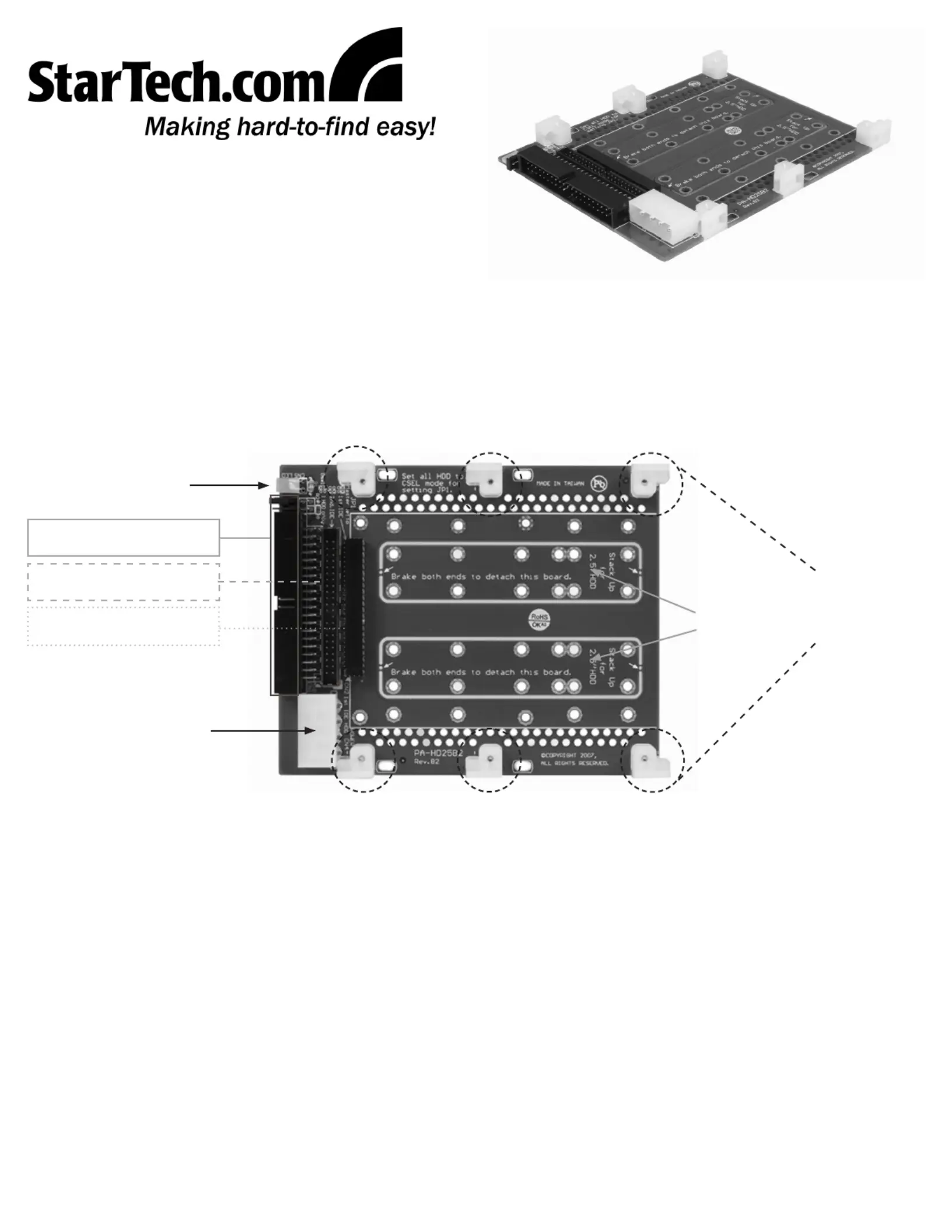

40-pin IDE connector

(to 3.5” drive ribbon cable)

44-pin IDE connector #2

(to 2.5” drive ribbon cable)

44-pin IDE connector #1

(attach 2.5” drive directly)

Drive Activity LED

LP4 Power connector
