Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: June 10, 2020

5 Port Unmanaged Industrial-Grade Switch 10/100/1000 Mbps + 2 Open SFP & DIN Input

Product Diagram (IES1G52UPDIN)

Front View

Side View

ComponentFunction

1

Power (PW) LED

Indicators

• Color - Green

• DIN P3 (top), Terminal P2 (middle), Terminal P1

(bottom)

• On - is connectedPW1/2/3

• O - is not connectedPW1/2/3

2RLY LED Indicator

• Color - Amber

• On - shortAlarm Relay

• O - openAlarm Relay

3

F5/6 Port LED

Indicators

• Color - Green

• F5 (top), F6 (bottom)

• On - link/connectionis detectedSFP

• O - link/connection is not detectedSFP

• Flashing - is activeSFP

9

1011

4PoE Ports

• Connect any to provide an Network DeviceEthernet

ConnectionNetwork Devices to up to 4

• Provide a ( to 4 Power over EthernetPoE) Connection

Devices

• Maximum power budget is 30W per port up to a PoE

total overall power budget of 126W

5

SFP Slots F6 (Left) and

F5 (Right)

• Supports 100/1000Base-X SFP Transceiver Modules

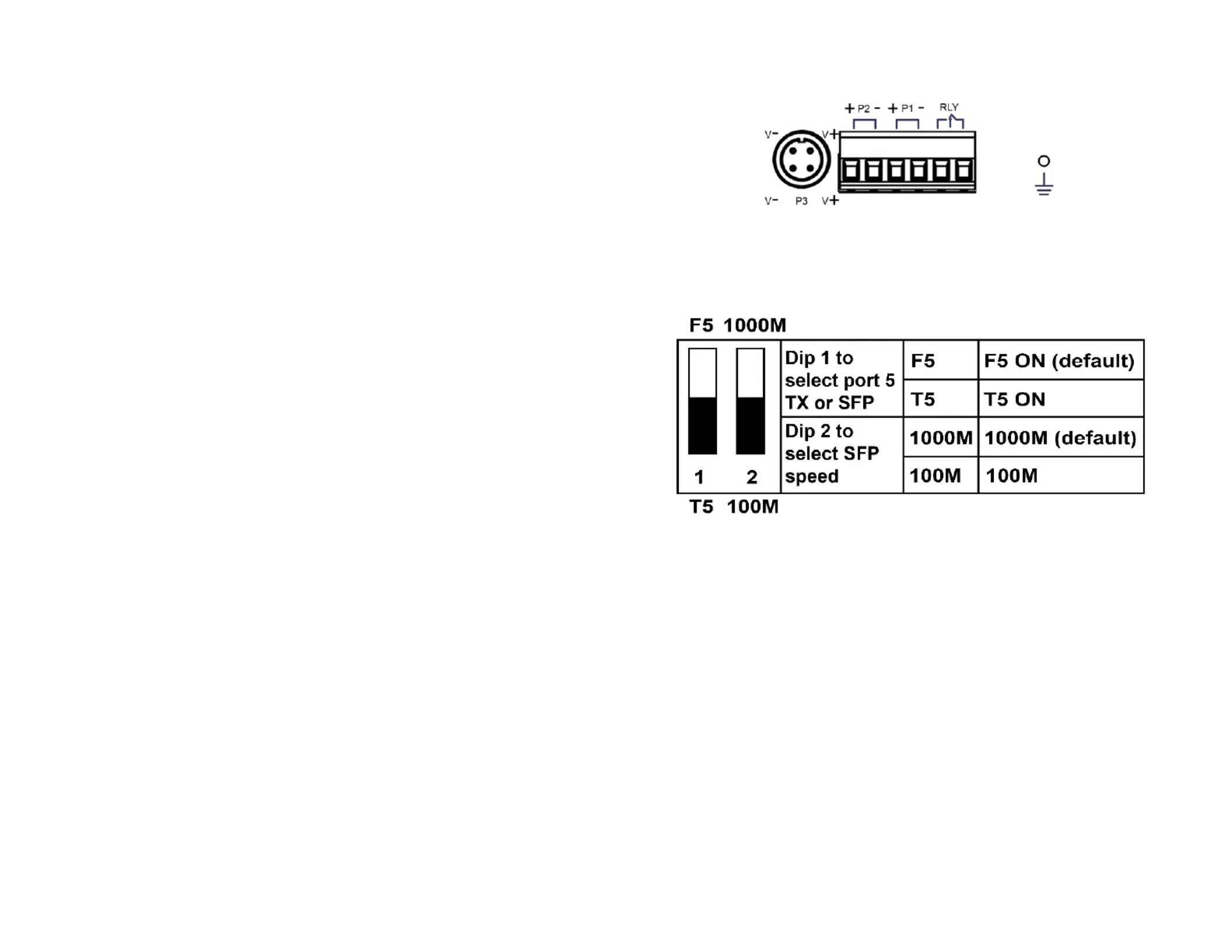

6DIP Switches• Enable or SFP Slot F5T5 Network Port

7Non-PoE Port

• Provide an to one Ethernet ConnectionNetwork

Device

• Connect using aor Fiber Copper Network Cable

8

PoE Port LED

Indicators

• Indicates the link and statusPoEPowered Device (PD)

LNK(Green)

• On - Network connection detected

• O - Network connection not detected

PoE (Amber)

• On - is detectedPoE PD

• O - is not detectedPoE PD

9DIN Power Port• Connect a DIN ConnectorTerminatedPower Supply

10

Terminal Block Power

Input Port

• Provides power to the PoE Ports

• Supported power input voltage range is 48-56V

11Grounding Screw

• Attach a to protect Grounding WireNetwork

Equipment

Requirements

For the latest requirements, please visit .www.startech.com/IES1G52UPDIN

• DC Power Supply x (up to) 2

• (Optional) DIN Connector Terminated Power Supply x 1

• PoE Powered Device x (up to) 4

• RJ45 Terminated UTP/STP Cat 5e (or better) Network Cable x (up to) 5

• MSA-Compliant 100/1000Base-X SFP Transceiver Module x (up to) 2

• Fiber Cable x (up to) 2

• Earth Ground Connection x 1

4

1

56

32

78
