Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 05/15/2017

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• 1 x 8 Port PoE Network Switch

• 1 x Power Cord

• 1 x Instruction Manual

System Requirements

• RJ45 terminated Ethernet cabling

• Available AC electrical outlet

IES8100POE / IES8100POEGB / IES8100POEEU

8 Port 10/100Mbps Industrial Power over Ethernet Network Switch

LEDs

LED Status Description

Power

On The switch is powered on

O The switch is powered o

PoE

On Linked to a PoE device

O Not linked to a PoE device

Link/ACT

On Link detected on port

O No link detected on port

Flashing

Data is being transmitted on

port

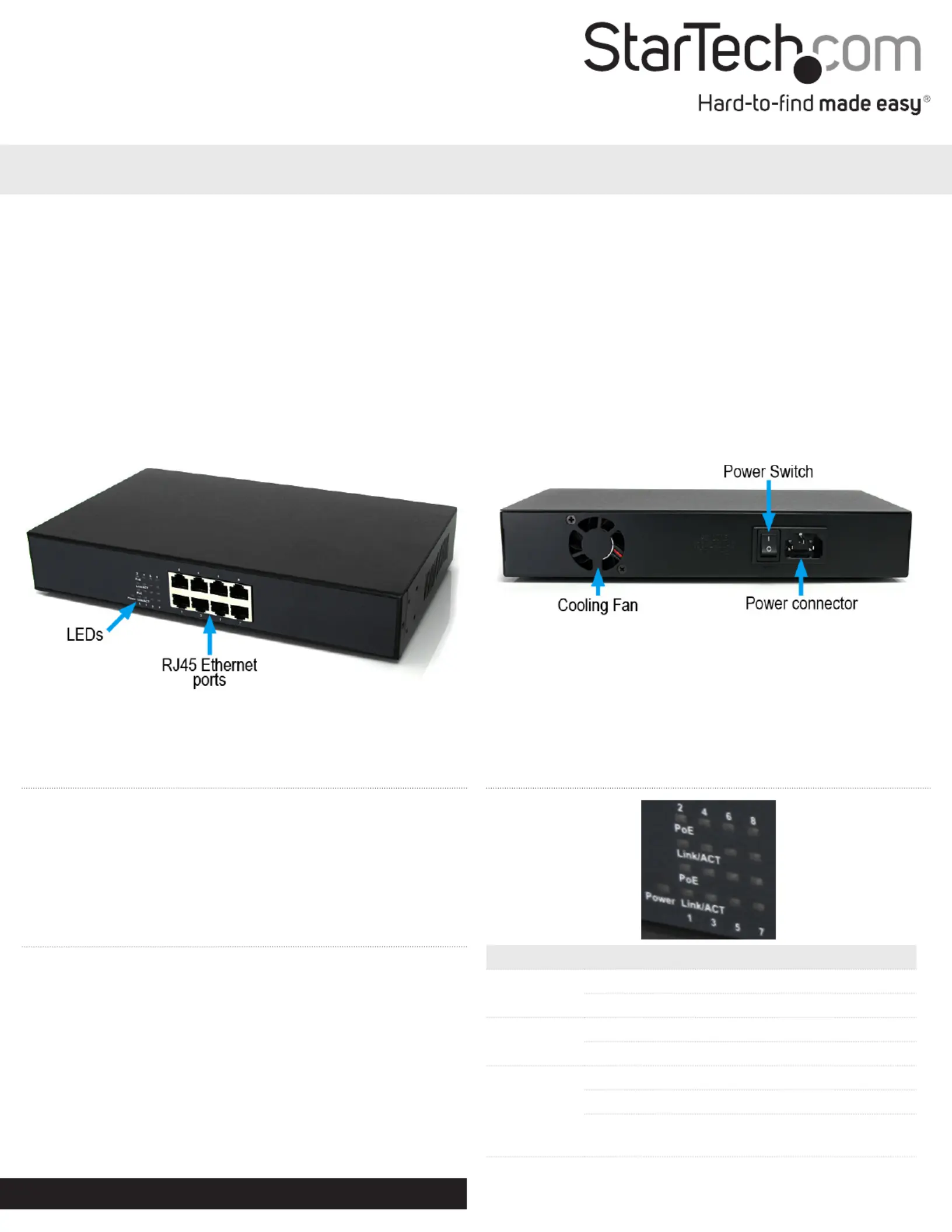

Front View Rear View

*actual product may vary from photos

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow

the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Specications

Number of Ports 8

Link Speed 10/100Mbps

Standards

IEEE 802.3af/at, IEEE802.3 10BASE-T,

IEEE802.3u 100BASE-TX/FX, IEEE802.3x

PoE Output

48V DC, 30W (per port, 120W

total budget))

LEDs

1 x Power

8 x PoE Act/Status

8 x Link/Act

Flow Control

Half-duplex back-pressure

IEEE802.3x full-duplex ow control

Switching Architecture Store-and-Forward

Auto MDIX Yes

Onboard Memory 512Kb

Enclosure Material Steel

Power Consumption 132W Max

Power Adapter 100 ~ 240V AC, 50 ~ 60Hz

Operating Temperature 0°C ~ 45°C (32°F ~ 113°F)

Storage Temperature -10°C ~ 70°C (14°F ~ 158°F)

Humidity 10% ~ 95% RH

Dimensions (LxWxH) 160.0mm x 266.0mm x 44.0mm

Weight 1400g

Produktspezifikationen

Marke:	StarTech.com
Kategorie:	Nicht kategorisiert
Modell:	IES8100POE
Gewicht:	1400 g
Produktfarbe:	Schwarz
Übertragungstechnik:	Kabelgebunden
Material:	Stahl
Betriebstemperatur:	0 - 45 °C
Verpackungsbreite:	240 mm
Verpackungstiefe:	295 mm
Verpackungshöhe:	65.40 mm
Netzstandard:	IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Zertifizierung:	RoHS, CE, FCC
Stromverbrauch (Standardbetrieb):	132 W
Power over Ethernet (PoE):	Ja
Ethernet LAN Datentransferraten:	10, 100 Mbit/s
LED-Anzeigen:	Link, Status
Temperaturbereich bei Lagerung:	-10 - 70 °C
Anzahl der basisschaltenden RJ-45 Ethernet Ports:	8
Netzstecker:	DC-Anschluss
Auto MDI/MDI-X:	Ja
10G-Unterstützung:	Nein
MAC-Adressentabelle:	- Eintragungen
Routing-/Switching-Kapazität:	- Gbit/s
Rack-Einbau:	Ja
Abmessungen (BxTxH):	266 x 160 x 44 mm
Ethernet Schnittstellen Typ:	Schnelles Ethernet
Eingangsspannung:	110 - 240 V
Unterstützung Datenflusssteuerung:	Ja
Max. Datenübertragungsrate:	- Gbit/s
Datenrate:	10/100 Mbps
Power-LED:	Ja
Ethernet-Kabel Verkablungstechnologie:	100BASE-FX
Ethernet/LAN:	Ja
