Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 09/15/2014

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• 1 x PEX4S952 or PEX4S952LP card

• 1 x 4 port DB9 break-out cable

• 1 x Full Prole bracket (PEX4S952LP only)

• 1 x Low Prole bracket (PEX4S952 only)

• 1 x User Manual

• 1 x Driver CD

System Requirements

• PCI Express enabled computer system

• Windows® 2000/ XP(32/64bit)/ Server 2003(32/64bit)/

Vista(32/64bit), and Linux

Installation

WARNING! PCI Express cards, like all computer equipment, can be

severely damaged by static electricity. Be sure that you are properly

grounded before opening your computer case or touching your PCI

Express card. StarTech.com recommends that you wear an anti-

static strap when installing any computer component. If an anti-

static strap is unavailable, discharge yourself of any static electricity

build-up by touching a large grounded metal surface (such as the

computer case) for several seconds. Also be careful to handle the PCI

Express card by its edges and not the gold connectors.

Setting Power Mode

This card is specially designed to allow for power output from the

ninth pin of the DB9 connector(s) for devices that support power

over serial. This card allows users to set each port with 5V, 12V, or RI

(no power) via jumper settings on the card. Users can also choose to

draw the necessary power directly from the system power supply by

connecting the LP4 molex power connector.

Hardware Installation

1. Turn your computer o and any peripherals connected to the

computer (ie. Printers, external hard drives, etc.). Unplug the

power cable from the rear of the power supply on the back of

the computer.

2. Remove the cover from the computer case. Refer to

documentation of your computer system for details.

3. Locate an open PCI Express slot and remove the metal cover plate

on the rear of the computer case. Note that this card will work in

PCI Express slots of additional lanes (ie. x4, x8 or x16 slots)

4. Insert the card into the open PCI Express slot and fasten the

bracket to the rear of the case.

OPTIONAL: If supplying power from the computer system’s power

supply, (see “Setting Power Mode”) connect the LP4 molex plug into

the card.

5. Place the cover back onto the computer.

6. Insert the power cable into the socket on the power supply.

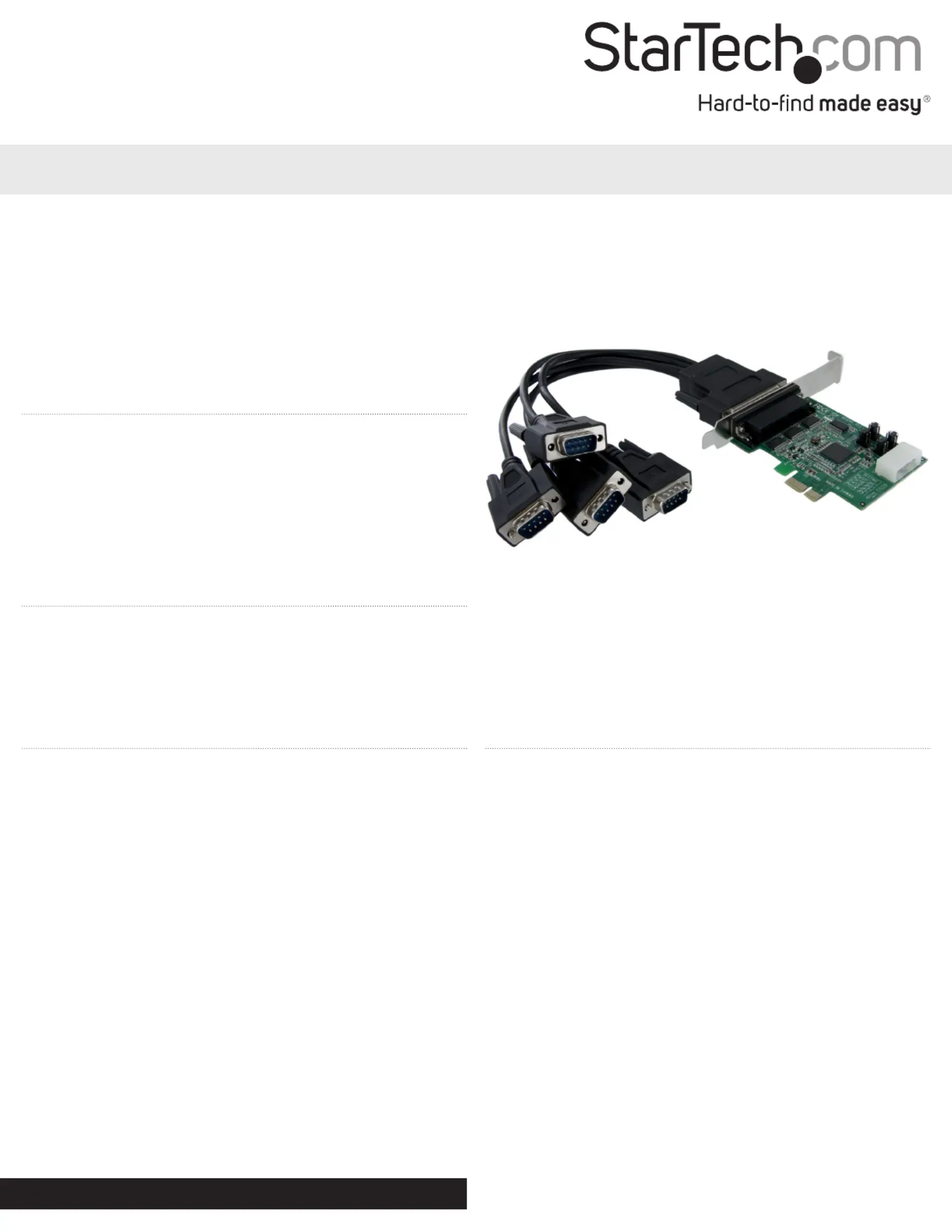

PEX4S952 / PEX4S952LP

4 Port PCI Express RS232 Serial Card with 16950 UART

*actual product may vary from photos
