Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: December 17, 2019 12:04 PM

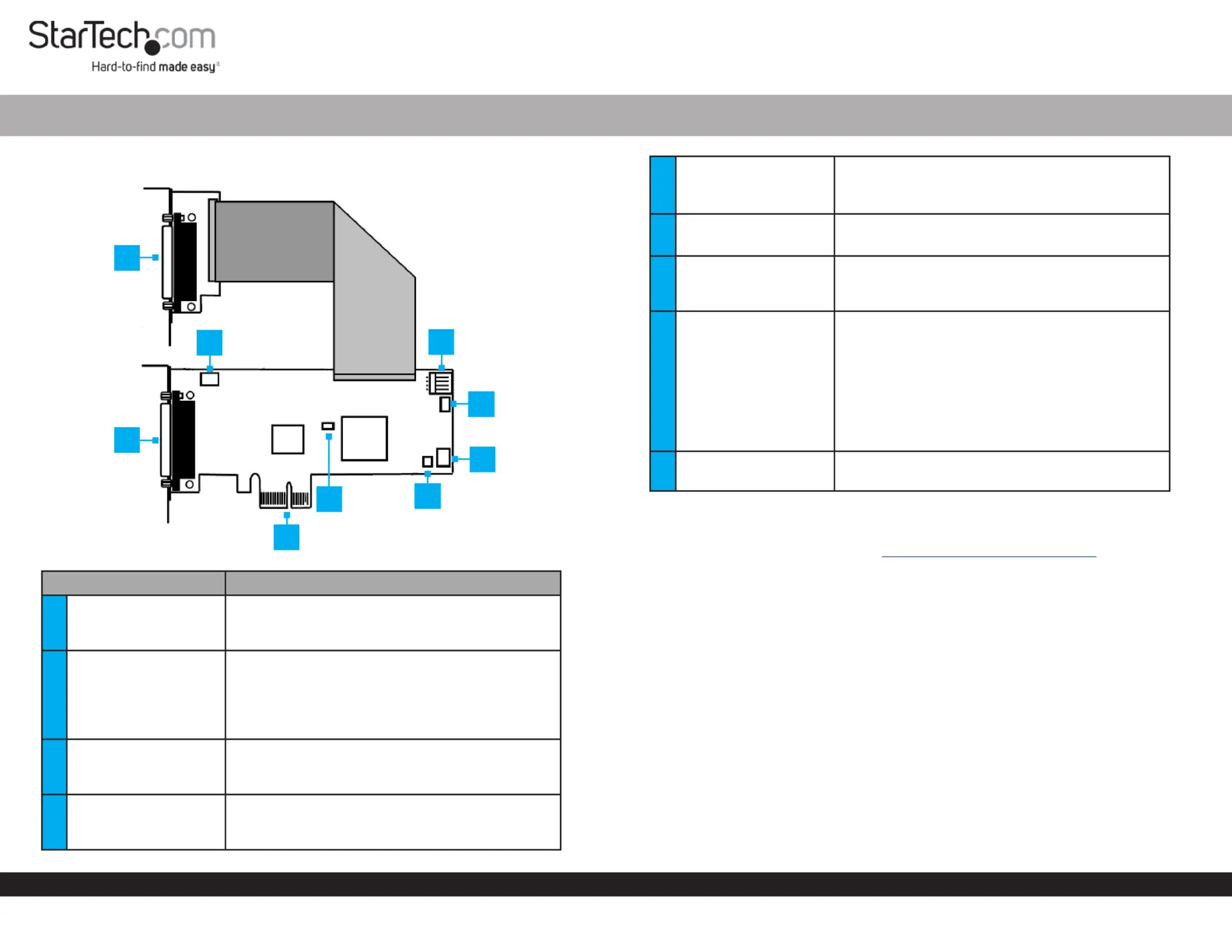

Product Diagram (PEX8S1050LP)

ComponentFunction

1

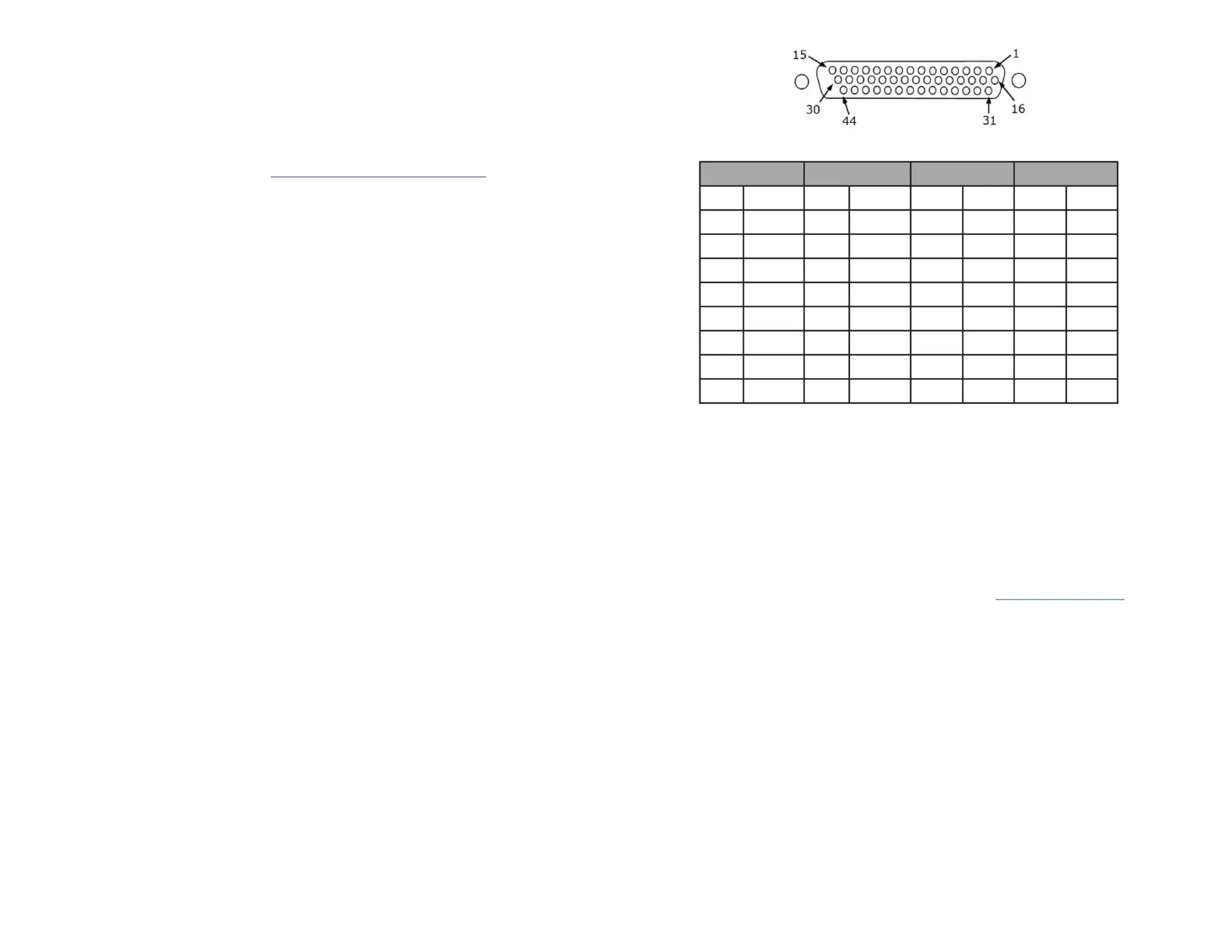

S5 - S8: DB44 Pin

Connector to 4-Port

Breakout Cable

• Used to connect the DB44 to 4-Port DB9

Breakout Cable.

2

JP 5 - Power Over

Serial Connector

• Used to set pin 9 on the DB9 connector (S1 -

S4) to RI (no power) or to DC power. The JP2

Aux Power Source Selector determines the

voltage 12 or 5.

• Default position is RI.

3

S1 - S4: DB44 Pin

Connector to 4-Port

Breakout Cable

• Used to connect the DB44 to 4-Port DB9

Breakout Cable.

4PCI Express Connector

• Used to connect the to PCI Express Card

the PCI Express expansion slot on the Host

Computer.

8-Port PCI Express Low Prole RS232 Serial Card | 16C1050 UART

5JP1: PME

• Used to enable or disable the wake from sleep

setting.

• Default position is disable.

6JP4: Mode

• Used for factory testing.

• For normal use the jumper must be set to CEN.

7

JP6: S5 - S8

Power Over Serial

Connectors

• Used to enable or disable power over serial for

S5 - S8 connectors.

8

JP2: AUX Power

Source Selector

• Used to select the DC power source for Pin 9 on

the DB9 connector.

• Power supplied by Internal 12V:

motherboard’s PCI Express Slot.

• Power supplied by J3 Power External 12V:

Connector.

• Power supplied by J3 Power External 5V:

Connector.

9

J3 Aux. Power

Connector

• Used to connect an external power source to

the .Serial Card

Requirements

For the latest requirements, please visit www.startech.com/PEX8S1050LP

Installation

WARNING! PCI Express cards can be severely damaged by static electricity. Be sure

that you are properly grounded before touching the .Serial Card

1. Turn O the Host Computer.

2. Remove the chassis cover from the .Host Computer

3. Locate a , using a (sold separately) remove the PCI Express SlotScrewdriver Screw

used to secure the and set the aside. PCI Express Slot CoverScrew

4. Align the on the with a . While PCI Express ConnectorSerial CardPCI Express Slot

applying pressure evenly across the top edge of the , insert the Serial CardSerial

Card PCI Express SlotSerial Cardinto the , ensuring that the is properly aligned

with the rear panel slot.

5. Using a and the removed in step 3, secure the to ScrewdriverScrewSerial Card

the motherboard and rear chassis. Secure the additional serial port provided by the

daughter board (smaller circuit board) to an adjacent rear bracket.

6

2

5

1

3

7

8

9

4
