LP324 LP2902 Ultra-Low-Power Quadruple Operational Amplifiers

1 Features

•Low supply current: 85μA typical

•Low offset voltage: 2mV typical

•Low input bias current: 2nA typical

•Input common mode to ground

•Wide supply voltage: 3V < V

CC

< 32V

•Pin compatible with LM324

2 Applications

•LCD displays

•Portable instrumentation

•Sensor and metering equipment

•Consumer electronics:

–MP3 players, toys, and more

•Power supplies

3 Description

The LP324 and LP2902 are quadruple low-power

operational amplifiers especially designed for battery-

operated applications. Good input specifications and

a wide supply-voltage range are achieved, despite

the ultra-low supply current. Single-supply operation

is achieved with an input common-mode range that

includes ground (GND).

The LP324 and LP2902 are an excellent choice for

applications where wide supply voltage and low power

are more important than speed and bandwidth. These

applications include portable instrumentation, LCD

displays, consumer electronics (MP3 players, toys,

and so forth), and power supplies.

Device Information

PART NUMBERTEMPERATURE (T

A

)PACKAGE

(1)

LP2902−40°C to +85°CD (SOIC, 14)

N (PDIP, 14)

PW (TSSOP, 14)

LP3240°C to 70°C

(1)For all available packages, see Section 8.

+

–

4.7k



2.37k



0.47µF

15k



15k



0.47μF

V

OUT

V

IN

LP2902

or LP324

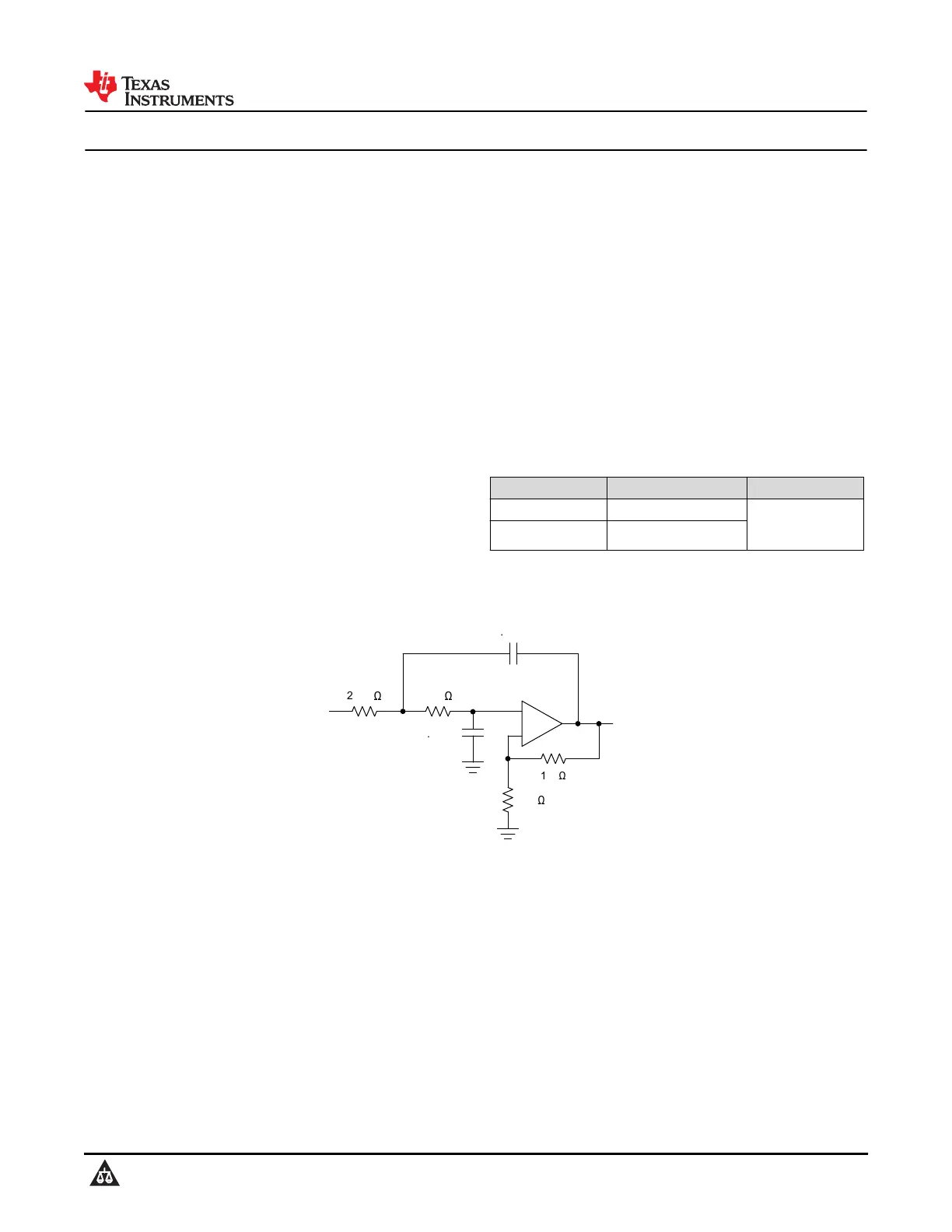

100Hz Low-Pass Filter With a Gain of 2

LP324, LP2902

SLOS460B – MARCH 2005 – REVISED SEPTEMBER 2025

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
