This product is intended for installation only by expert users. Please consult with a qualified technician for installation.

Improper installation may result in damage to your equipment.

1. Please carefully read the manual before beginning the installation process !

2. It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant 1000.

3. DO NOT USE any kind of alcohol or alcohol derivatives with this reservoir or the acrylic tube may crack and fail ! Do not clean it using alcohol either

Installation Guide

Parts List

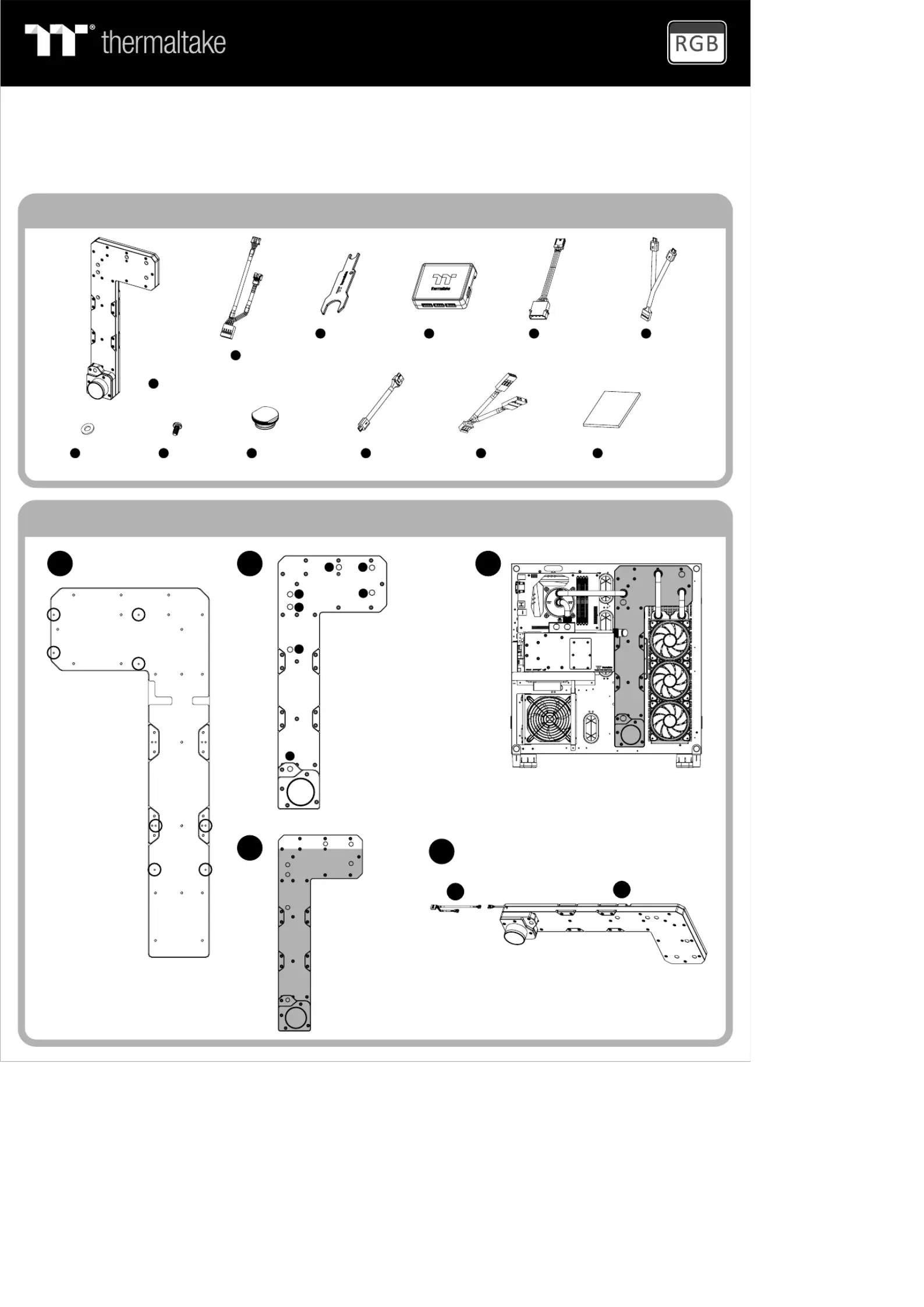

To install the DP-D5 in your chassis,

placing a screw and washer that comes

with the DP-D5 on every screw hole that

matches the circles in below picture.

12

3

Distro Plate

Ax 1

LEDYCable-

B x 1

Washer

C x 8

Screw

D x 8

G1/4 Stop Plug

E x 3

Wrench

F x 1

Controller

G x 1

Power Cable

H x 1

Controller Cable

I x 1

Bridge Cable

J x 1

MB SYNC Cable

K x 1

Velcro

L x 1

Circle 1 is designed for liquid outlet,

you may choose one of the ports to use.

Circle 2 is designed for liquid inlet,

you may choose one of the ports to use.

Circle 3 is designed for liquid fill,

you may choose one of the ports to use.

Circle 4 is the drain port.

Assembly example can refer to

the following figure.

4

To avoid air bubble

during liquid cooling

system working, please

fill the reservoir with

coolant to the line

(Normal coolant level)

5

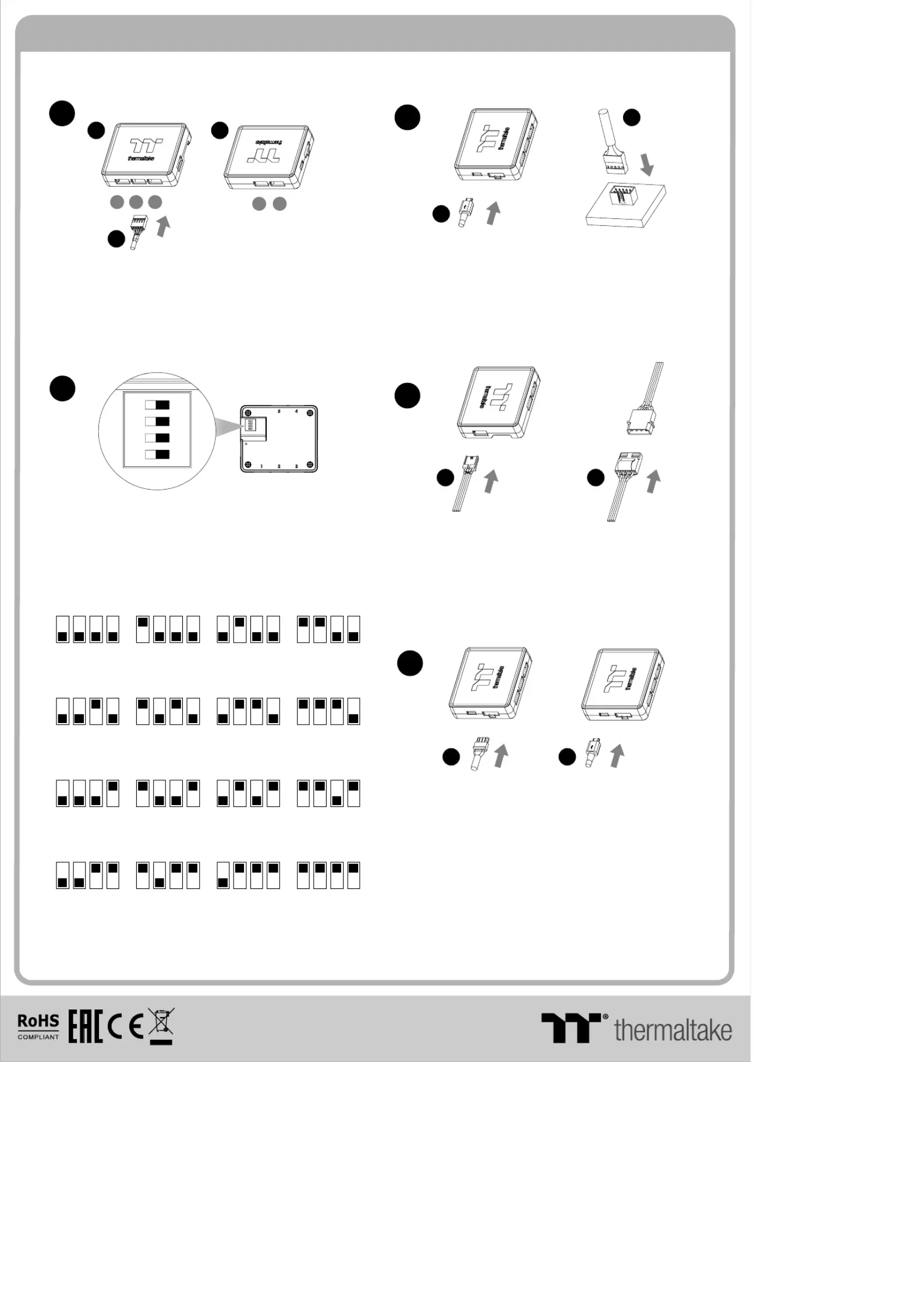

Connect the LED Y-Cable onto

the Distro Plate.

Patented

16.8Million Color

B

A

Pacific Core P5 DP-D5 Plus

1

1

4

1

2

2

3
