Installation Guide

1 2

4 5 6

Scan Here

Installation Guide

Pacific Ultra Core P8 DP-D5 Plus

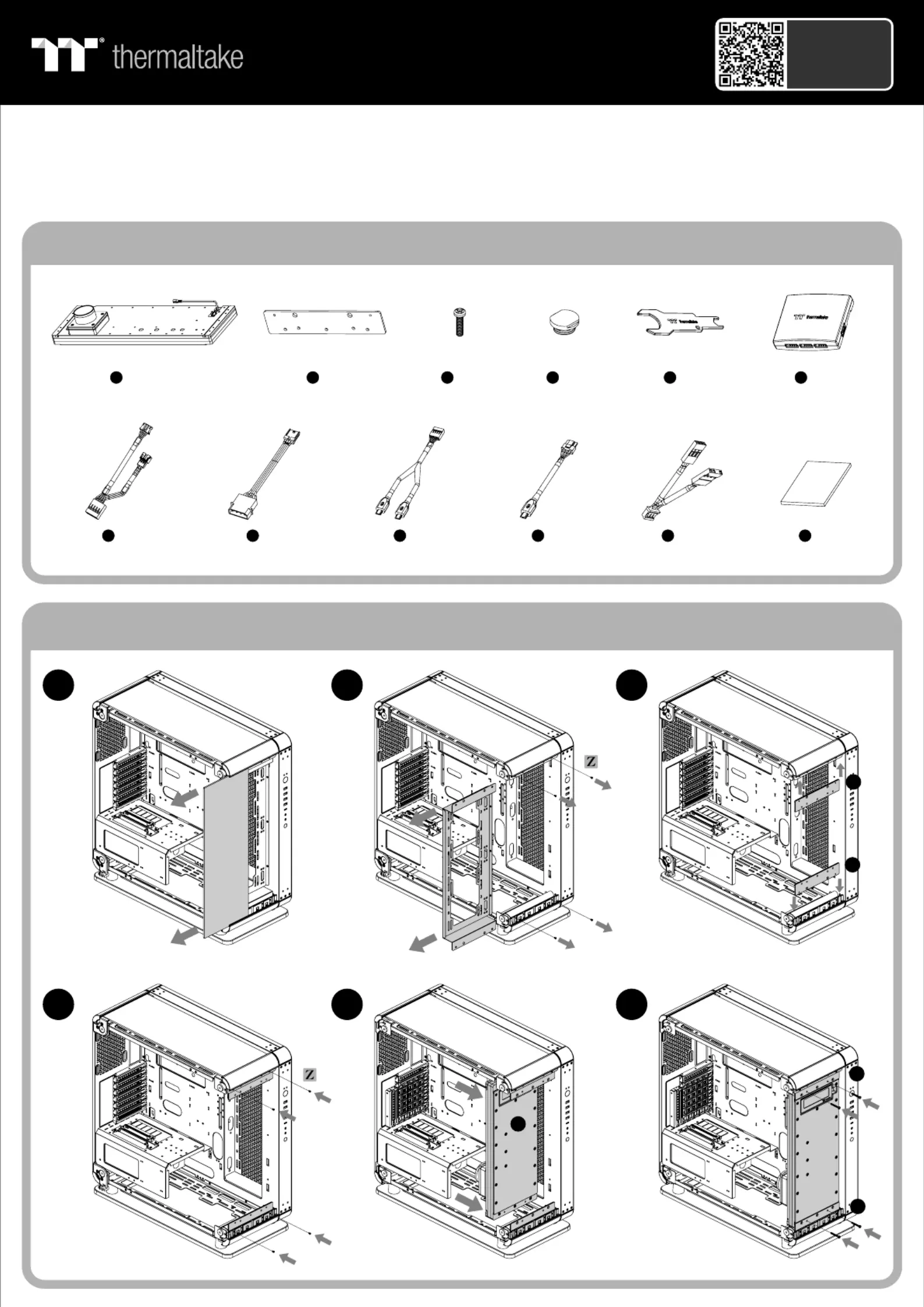

Parts List

Distro Plate

Ax 1

LED Y Cable -

G x 1

x 4

B x 2

ScrewBracket

C x 4

G1/4 Stop Plug

D x 3

Wrench

E x 1

Controller

F x 1

Power Cable

H x 1

Controller Cable

I x 1

Bridge Cable

J x 1

MB SYNC Cable

K x 1

Velcro

L x 1

This product is intended for installation only by expert users. Please consult with a qualified technician for installation.

Improper installation may result in damage to your equipment.

1. Please carefully read the manual before beginning the installation process !

2. It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant 1000.

3. DO NOT USE any kind of alcohol or alcohol derivatives with this reservoir or the acrylic tube may crack and fail ! Do not clean it using alcohol either

Installation Guide

7 8

Circle 1

Designed for liquid fill, you

may choose one of the ports

to use.

Circle 2

Designed for liquid inlet, you

may choose one of the ports

to use.

Circle 3

Designed for liquid outlet,

you may choose one of the

ports to use.

Circle 4

The drain port.

To avoid air bubble during

liquid cooling system

working, please fill the

reservoir with coolant to

the line (Normal coolant

level)

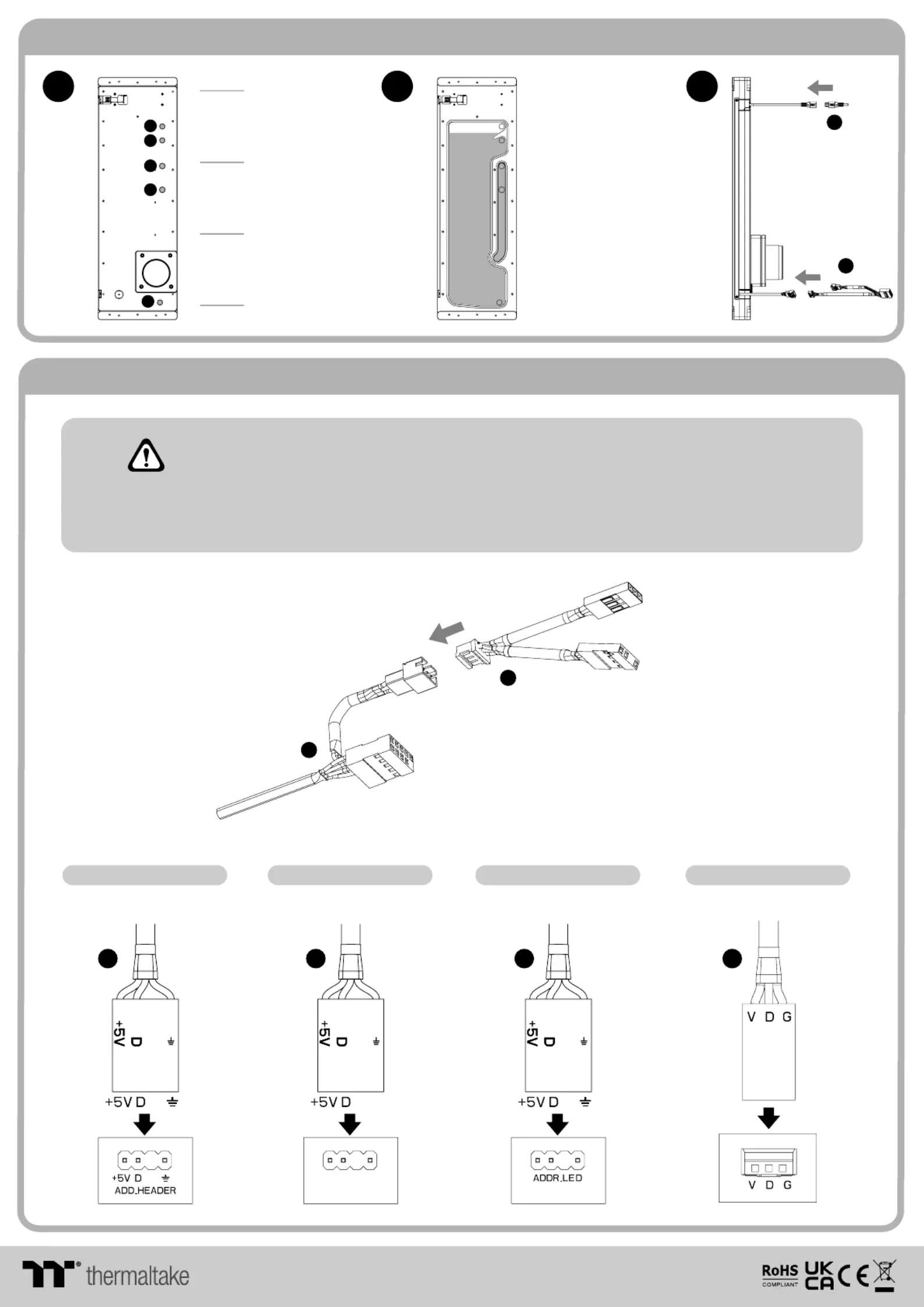

Mainboard SYNC installtation Guide

Please power off the PC and check the Positive and Negative ends on the connector

before connecting the cable to mainboard. Connecting the wrong end can damage the LEDs.

NCAUTION

Connect the MB SYNC Cable to Water block

Aura Addressable Strip Header(s) Addressable RGB LED Header(s)

AOURS RGB Fusion with Digital LEDs

ASUS ASROCK

GIGABYTE

JRGB-strip Header(S)

MSIMSI

+5 V D G

JRAINBOW

K KK K

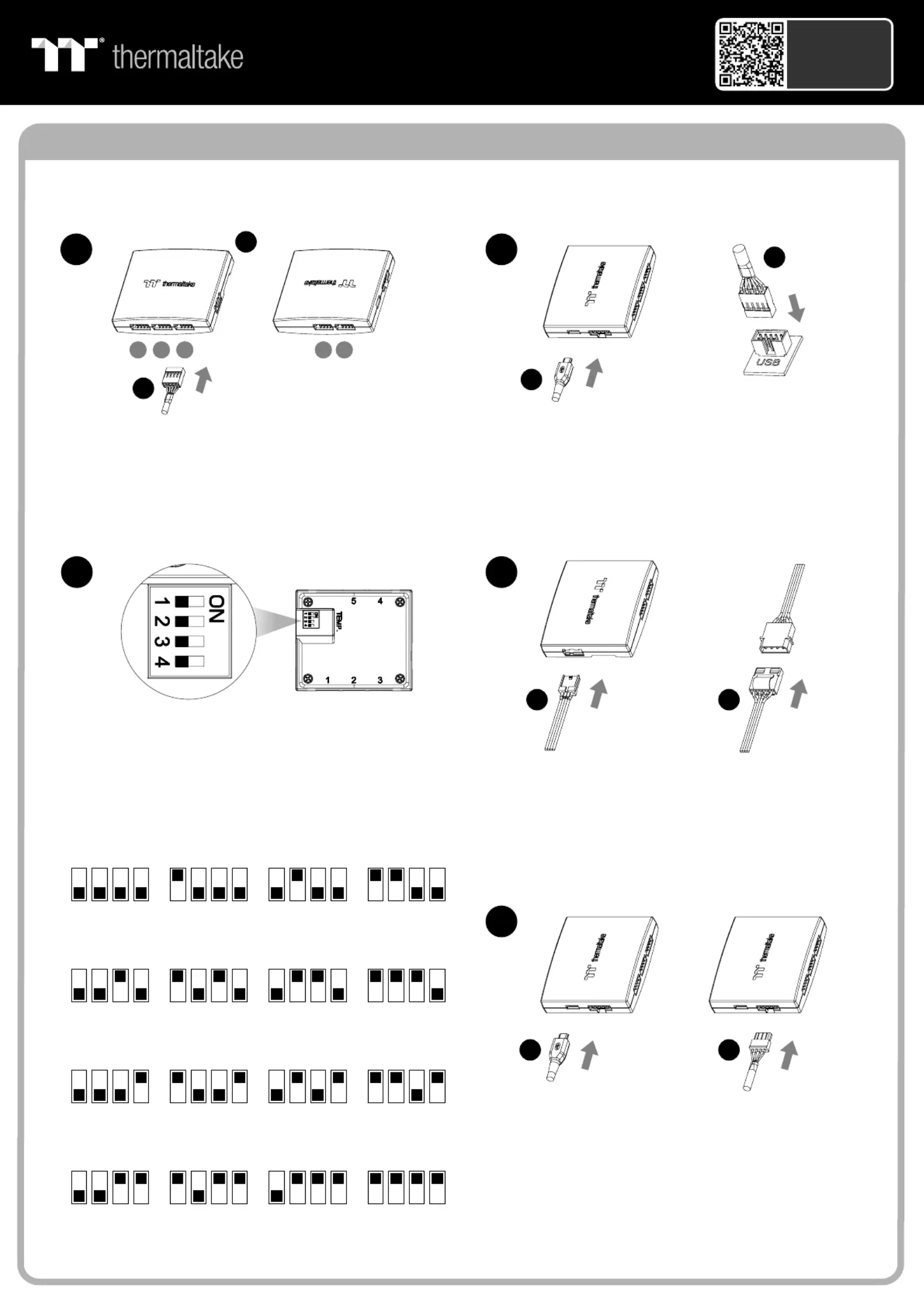

Controller Installation Guide

Connect the reservoir cable onto the controller.

Set the DIP switch on the back side of the controller

to assign the number of the controller

NO .1

1 2 3 4

NO .3

1 2 3 4

NO .2

1 2 3 4

NO .4

1 2 3 4

NO .9

1 2 3 4

NO .1 1

1 2 3 4

NO .1 0

1 2 3 4

NO .1 2

1 2 3 4

NO .5

1 2 3 4

NO .7

1 2 3 4

NO .6

1 2 3 4

NO .8

1 2 3 4

NO .1 3

1 2 3 4

NO .1 5

1 2 3 4

NO .1 4

1 2 3 4

NO .1 6

1 2 3 4

Connect the controller cable onto the mainboard

(USB 2.0 9 pin) and controller.

If you want to connect two or more connectors,

you can use the bridge cable to connect the

controllers.

Connect the power cable to the 4pin Molex

connecter and controller.

123 45
