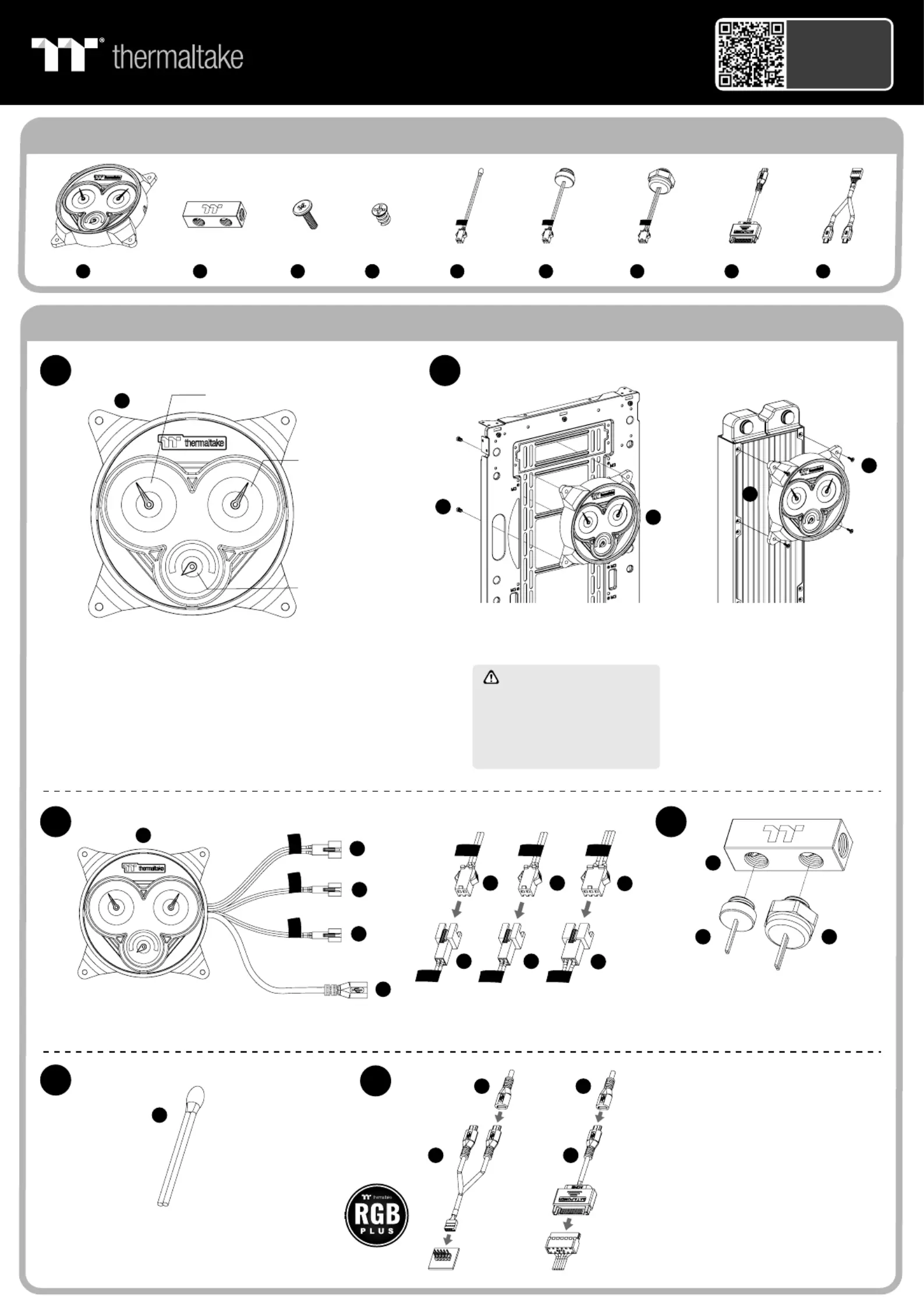

Parts List

Dx 1

Ex 1

F Gx 4 x 4

Installation Guide

Scan Here

Installation Guide

Pacific TF3

Liquid Cooling System Dashboard

Ax 1

B x 1

Cx 1

Lx 1

Nx 1

3 4

Coolant Temp.

range 0℃ ~ 70℃

(32℉ ~ 160℉)

Ambient Temp.

range 0℃ ~ 70℃

(32℉ ~ 160℉)

Pressure

range 0 bar ~ 1 bar

Install Pacific TF3 at

any 120mm fan spots

Connect the cables and connectors according to the corresponding labels

Install the liquid temperature sensor(B)

and liquid pressure sensor (C)

on the 4-way connector block(E)

Place the chassis ambient

temperature sensor(A)

at the appropriate spot

You could select one of the following

ways of connections:

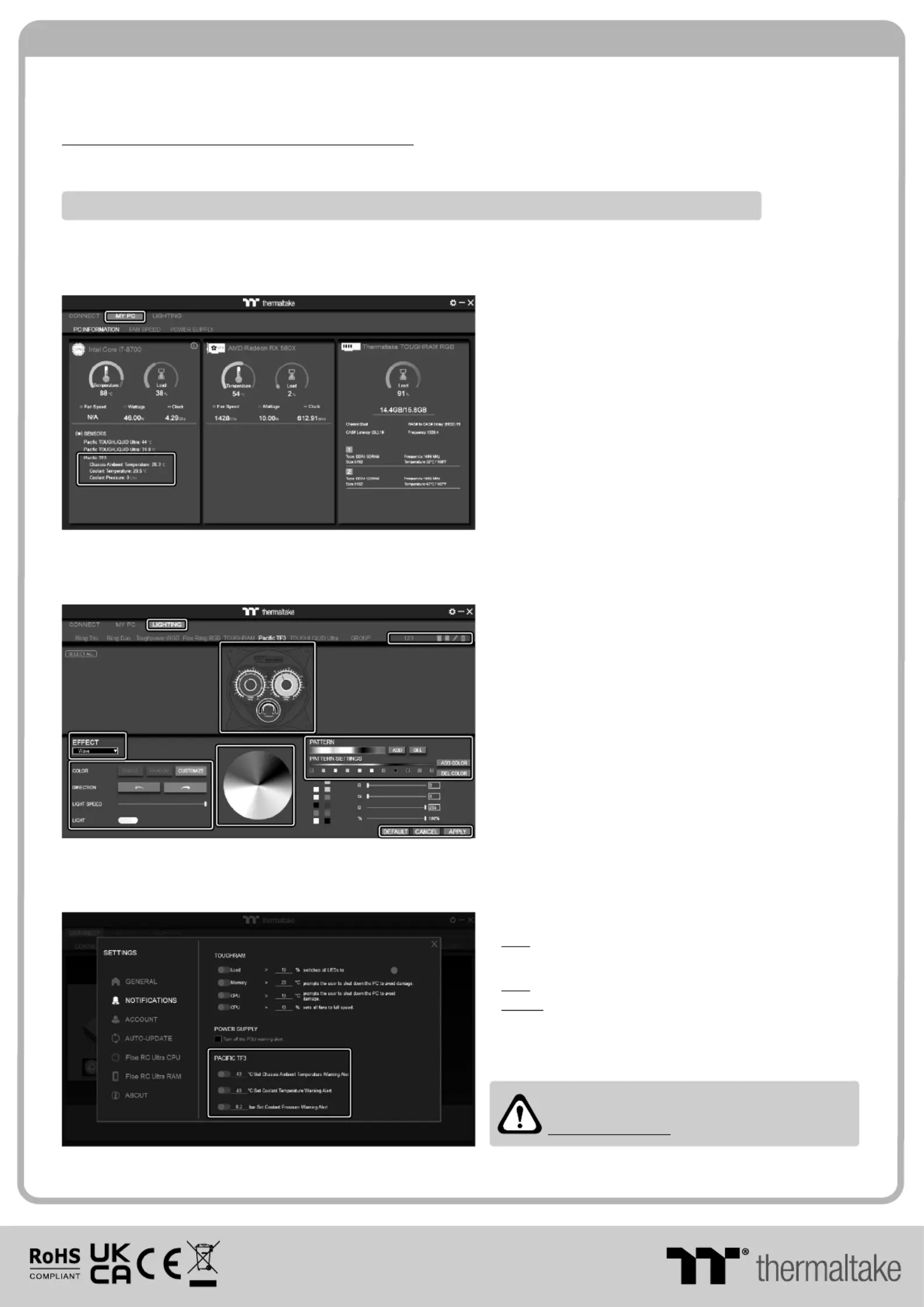

9pin USB 2.0(N): For power supply and

TT RGB Plus 2.0 software control

SATA(L): Only for power supply

Install Pacific TF3 at

the radiator

Case

Radiator

Ambient

temp

Ambient

temp

Ambient

temp

Ambient

temp

Coolant

temp

Coolant

temp

Coolant

temp

Coolant

temp

Pressure

Pressure Range

<0.25 bar : The liquid pressure value is within the normal range.

0.25 ~ 0.5 bar : The liquid pressure value is rising; there is a slight pressure

accumulation, it is recommended to release the pressure in time.

>0.5 bar : The liquid pressure value is a little high; the liquid cooling system has the

risk of water leakage, therefore the pressure should be released immediately.

≥0.75 bar : The liquid pressure value is too high; The pressure should be released

immediately and check whether there is any leakage in the entire cooling system to

ensure that the system's products are not damaged.

It is recommended to release the

pressure of the liquid cooling system

when the liquid pressure value

approaches 0.5 bar. If any leakage is

found, the system should be shut

down and cut off the power supply

immediately.

NCA UTI ON
