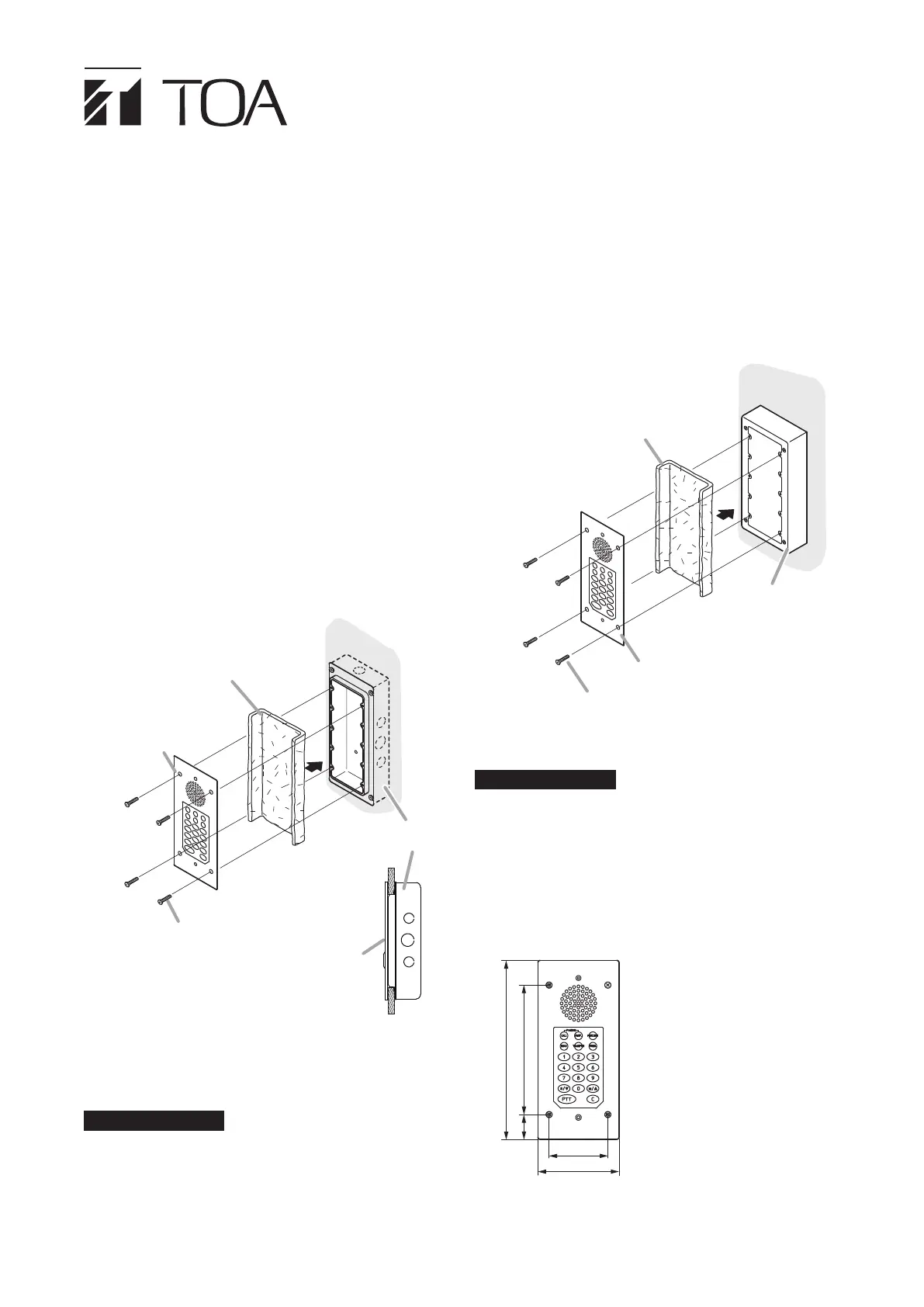

INSTALLATION MANUAL

FLUSH-MOUNT HANDS-FREE

MASTER STATION N-8031MS

Thank you for purchasing TOA's Flush-Mount Master Station.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

1. GENERAL DESCRIPTION

The N-8031MS is a flush- or surface-mount master

station designed to operate in conjunction with TOA IP

Intercom Exchange and features high quality hands-free

conversation.

Connecting a foot switch or other external switch to the

external dial input terminal permits one-touch dialing

operation by way of such switches.

Handset conversation can be made in conjunction with the

optional RS-191.

2. WALL MOUNTING

2.1. In-Wall Mounting Using an electrical box

Attach the N-8031MS to the YC-241 Back Box or an

electrical box installed in a wall.

[Section view]

Wall

Oval head combination screw

M4 x 25 (accessory)

N-8031MS

YC-241 Back box (option)

or 5-gang electrical box

Wall

surface

Acoustic material (accessory)

Note

Lay it down along the inside

of the box.

Note

The wall should be over 12 mm thick, and the opening

in the wall for an electrical box should be under 115 mm

(wide) by 254 mm (high).

The N-8031MS comes with 2 types of screws: oval head

combination screw M4 x 25 and oval head combination

screw UNC No.6 x 18.

For the electrical box provided with unified threads, use the

oval head combination screws UNC No.6 x 18.

Accessory screws

254

18435

83.5

115

[Installation completion drawing]

Unit: mm

2.2. On-Wall Mounting Using a Wall-Mount box

Attach the N-8031MS to the YC-251 Wall-Mount Box

installed on a wall.

YC-251

Wall-mount box

(option)

N-8031MS

Oval head combination

screw M4 x 25

(accessory)

Acoustic material (accessory)

Note

Lay it down along the inside

of the box.

Wall

surface

The N-8031MS comes with 2 types of screws: oval head

combination screw M4 x 25 and oval head combination

screw UNC No.6 x 18.

For the electrical box provided with unified threads, use the

oval head combination screws UNC No.6 x 18.

Accessory screws

Produktspezifikationen

Marke:	TOA
Kategorie:	Türsprechanlage
Modell:	N-8031MS
Breite:	115 mm
Tiefe:	54.6 mm
Gewicht:	850 g
Produkttyp:	Master-Station
Produktfarbe:	Black, Stainless steel
Höhe:	254 mm
Material:	Edelstahl
Betriebstemperatur:	0 - 40 °C
Markenkompatibilität:	TOA
