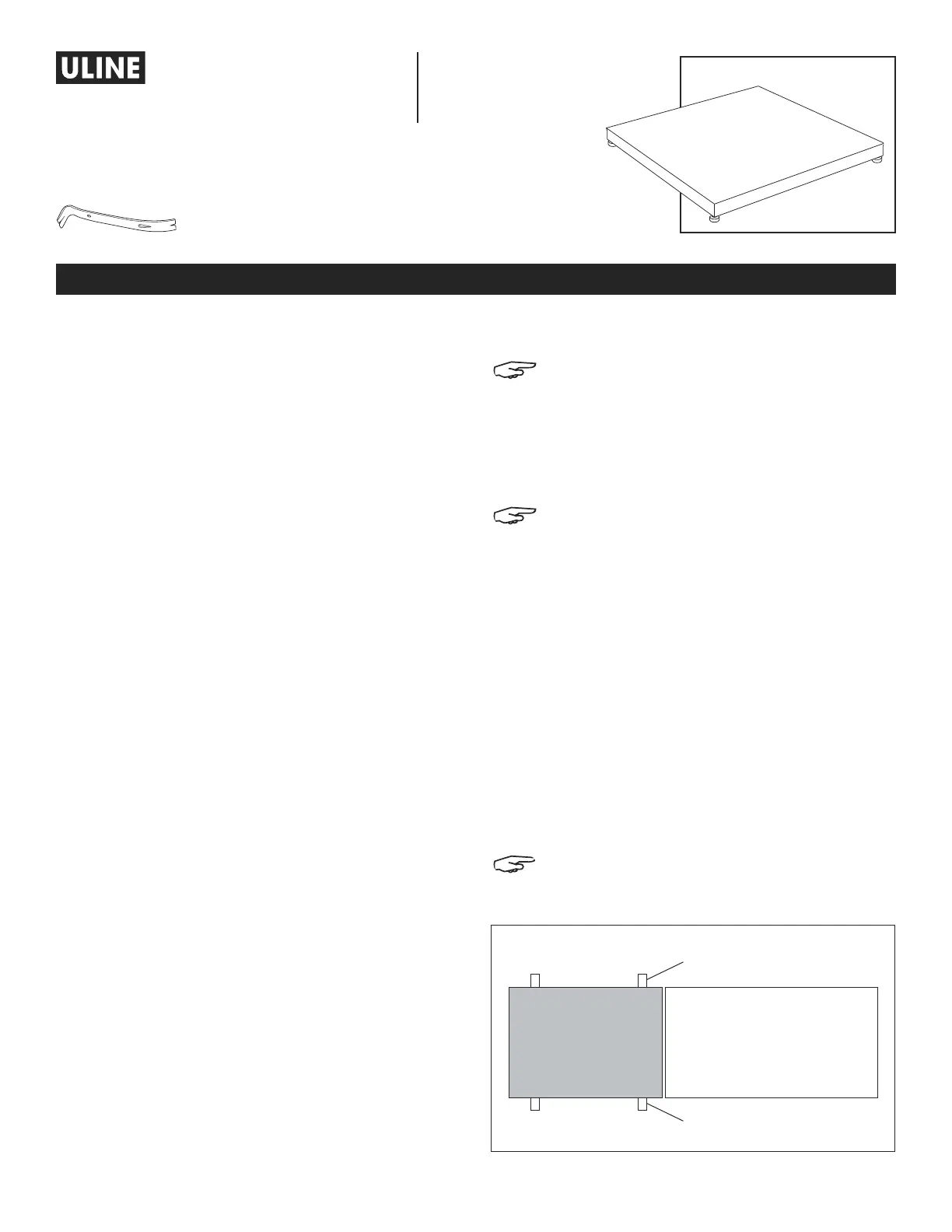

PAGE 1 OF 180825 IH-4602

STAINLESS STEEL

LOW PROFILE FLOOR SCALE

1-800-295-5510

uline.com

H-4602, H-4603, H-4604

H-10905, H-10906, H-10907

INTRODUCTION

INTRODUCTION

SITE SELECTION

Select a site for the floor scale where it is least likely to

be damaged by forklifts and other material handling

devices. Floor scale load cell weighing elements are

prone to overload damage caused by side impacts,

falling objects and weight loads that exceed the rated

capacity of the scale.

Site should be:

• Level within 1/4".

• Free from vibration.

• Clean of debris.

• Out of the way of vehicle traffic patterns, unless

installed in a pit while having a rated capacity

that exceeds all loaded vehicle weights that could

possibly drive onto or contact the scale.

The cable from the floor scale to the digital weight

indicator should be run through a conduit to protect it

against possible damage. Running the instrument cable

through a conduit is the best method of protection.

UNPACKING

1. Inspect your shipment for damage. If you see visible

signs of damage, notify carrier at once.

2. Remove floor scale from the shipping pallet. Digital

indicator and power cord should be attached.

3. Remove feet from package.

FEET INSTALLATION AND LEVEL ADJUSTMENTS

NOTE: Scale is shipped without feet installed to

protect against damage in transit.

1. Using a pry bar, lift scale up and thread feet into the

cells counterclockwise.

2. Screw feet until top of the threaded stem is flush with

top of the cell.

NOTE: Do not screw feet more than ten turns.

3. Place the scale on the ground to check if scale is

level and that all four feet are solid on the ground.

4. Make adjustments as needed if scale is not level.

5. Once level, tighten locknuts on feet to lock into

place.

RAMP INSTALLATION (OPTIONAL)

1. Set floor scale in desired location.

2. Position ramp on desired side of the scale. There

should be 1/8 – 1/4" gap between the scale and

ramp. (See Figure 1)

3. To hold ramp in place, drill 1/2 x 3" anchors (not

included) through ramp's mounting tabs into the

floor.

NOTE: Scale and ramp should not be touching.

Contact will impede scale from weighing

accurately.

Para Español, vea páginas 7-12.

Pour le français, consulter les pages 13-18.

TOOL NEEDED

Pry Bar

Figure 1

RampScale

Anchor goes here

Mounting Tabs
