INSTRUCTION MANUAL
LED FLOOD LIGHT
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please
read these instructions carefully before starting the installation and keep this manual
handy for future reference. If you have any another query, please contact our dealer or
local vendor from whom you have purchased the product. They are trained and ready
to serve you at the best. The warranty is valid for 5 years from the date of purchase. The
warranty does not apply to damage caused by incorrect installation or abnormal wear
and tear. The company gives no warranty against damage to any surface due to incorrect
removal and installation of the product. The products are suitable for 10-12 Hours Daily
operation. Usage of product for 24 Hours a day would void the warranty. This product is
warranted for manufacturing defects only.
INTRODUCTION & WARRANTY
TECHNICAL DATA
*This product contains a light source of energy eciency class<D>, where <D> shall be replaced
by the energy class of the contained light source.
SUPER BRIGHT
LM/WATT EFFICIENCY
135+
MODEL
SKU
LUMENS
WATTS
INPUT VOLTAGE
BEAM ANGLE
LIFE SPAN
ON/OFF CYCLE
DF
CRI
MATERIAL
OPERATION TEMPERATURE
DIMENSION
VT-48501
23616, 23617
67500 Lm
500W
AC: 220-240V, 50Hz
Sphere 360°
25,000 Hours
>15,000
>0.9
>70
Diecast Aluminium
-20°C to +45°C
530x65x523mm
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
Replaceable (LED
only) light source by
a professional
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC WEST EUROPE LTD. GROUND FLOOR, 71 LOWER BAGGOT STREET, DUBLIN 02, IRELAND DO2 P593
• Please make sure to turn o the power before starting the installation.
• Installation must be performed by a qualified electrician.
• The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent
or a similar qualified person.
• The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the
luminaire shall be destroyed.
• Replace any cracked protective shield.
• Minimum distance from lighted objects 1m.
• Terminal block not included.
• Proper grounding should be ensured throughout the installation.
• For Outdoor use.
1.Loosen the screws to remove
the bracket.
2.Determine installation
location.
3.Punching holes on building
surfaces with drills.
4.Insert Wall plug.
5.Fixed bracket.
6.Install the lamp body and
lock the bracket screws.
7.Adjust the angle of the entire lamp,
with an adjustable angle of 0-180 °
and a grid adjustment of 22.5 °.
After adjusting the angle, tighten the
angle adjustment screw and bracket
fixing bolt.
8.Adjust the angle of the single lamp,
with an adjustable angle of -60 ° to
+60 °,and a single grid adjustment
of 30 °. After adjusting the angle, lock
the angle adjustment screw and bracket
fixing bolt.

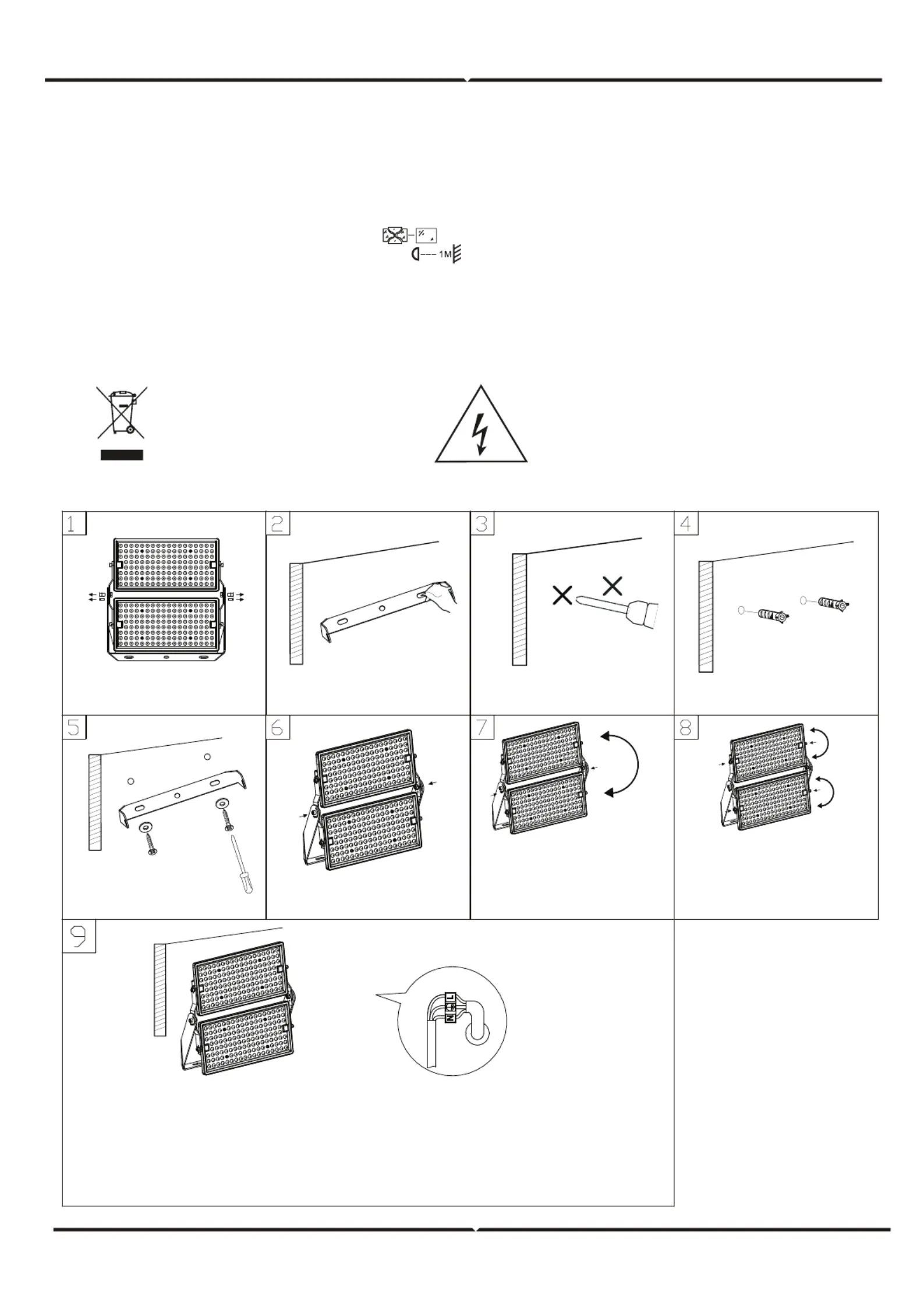

INSTALLATION DIAGRAM
WARNING
9.The input line is connected to the "L" live wire in brown, the "N" zero wire in
blue, and the yellow green wire is connected to the ground wire. Aer
connecting the wires, it is necessary to use insulation tape and waterproof
tape for insulation and waterproofing treatment. It is recommended to use a
professional waterproof junction box
NOTE: To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be eectively
fixed to the wall if the wiring is within arm's reach.
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.

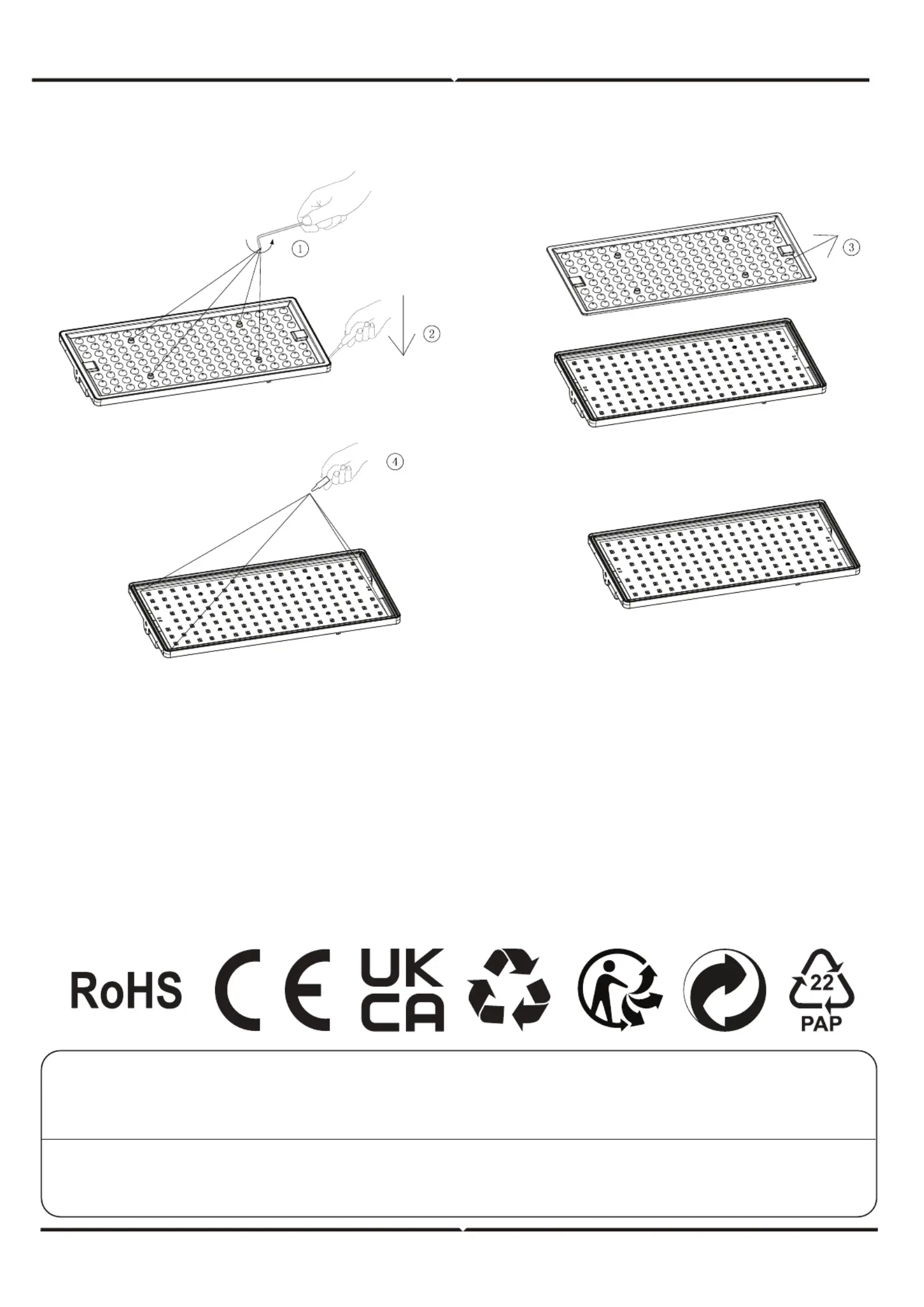

DISASSEMBLY DIAGRAM
(For Market surveillance team only)
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
Note: Light source removal will void the warranty
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT PLEASE REACH OUT TO US AT
SUPPORT@VTACEXPORTS.COM V-TAC HOUSE, KELPATRICK ROAD, SLOUGH, BERKSHIRE, SL1 6BW, UK.
